Description
Component Snapshot At-a-Glance
- Model: FBM217
- Alt. P/N: P0926ZY (redundancy adapter)
- Product Series: Foxboro I/A Series, Compact 200 Series I/O
- Hardware Type: 32-channel discrete (digital) input module
- Key Feature: Wide voltage range (15–240V AC/DC) + redundant-capable
- Primary Field Use: Monitor on/off field devices—limit switches, relays, motor contacts—in power, refining, and chemical plants.

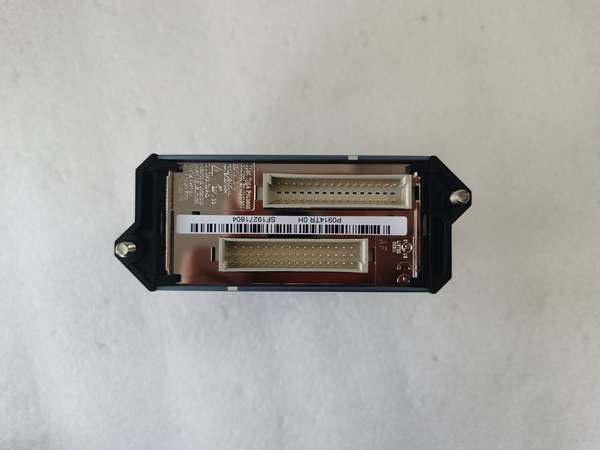

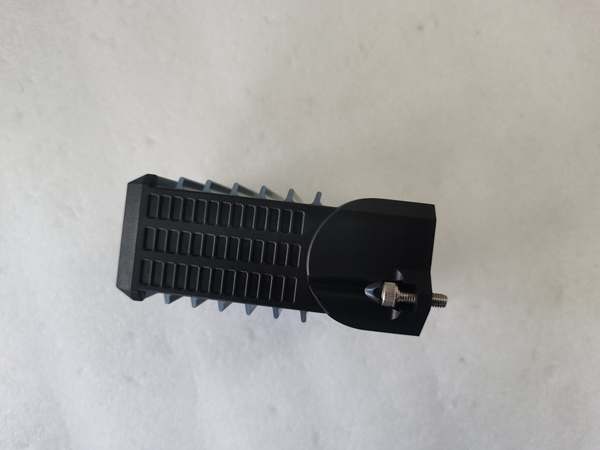

Foxboro FBM217
Hard-Numbers: Technical Specifications
- Protocol Support: I/A Series redundant 2 Mbps fieldbus
- Port Count: 32 isolated 2-wire input channelsparesource.schneider-electric.com
- Input Voltage: 15–60VDC; 120VAC/125VDC; 240VACparesource.schneider-electric.com
- Input Current: 2.2mA typical @30VDC
- Isolation Rating: Channel-to-backplane opto-isolation (via TA)
- Operating Temperature: 0°C to +60°C (24VDC supply)
- Power Draw: 3W max @24VDC backplane
- Filter Options: 4/8/16/32/64ms debounce, software-configurable
- Safety Level: SIL3 per IEC 61508
- Status Indicators: RUN green, FAULT red, 32 channel LEDs
- Dimensions: 114×45×104mm (H×W×D)
The Real-World Problem It Solves
Old 100-series I/O needed multiple cards for mixed AC/DC discrete signals. FBM217 crams 32 wide-voltage inputs into one compact slot, cutting cabinet space and spare parts inventory.
Where you’ll typically find it:
- Boiler burner management and interlock switches in power plants
- Refinery safety shutdown (ESD) valve position contacts
- Chemical plant reactor door interlocks and pressure switch status
This module’s SIL3 rating and redundancy option eliminate single points of failure for critical on/off signals.
Hardware Architecture & Under-the-Hood Logic
Dedicated digital input slave card with no local CPU. Relies on TA for high-voltage attenuation and isolation.
- Field 2-wire signals land on TA screw terminals.
- TA steps down high voltage and provides opto-isolation per channel.
- Isolated 37-pin D-sub sends conditioned signals to FBM217.
- Module filters, debounces, and converts to digital status.
- Data transmitted to FCP over redundant fieldbus; LEDs reflect status.
- Redundant pair (with P0926ZY) syncs data for bumpless switchover.

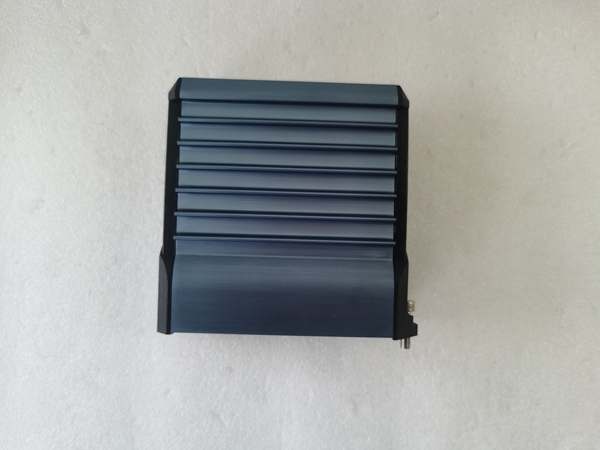

Foxboro FBM217
Field Service Pitfalls: What Rookies Get Wrong
Mismatching TA Voltage Rating
Using 240VAC TA on 24VDC signals (or vice versa) causes no reads or premature TA burnout.
- Field Rule: Match TA part number to signal voltage: e.g., P0916xx = 24VDC; P0917xx = 120/240VAC.
Ignoring Common-Mode Voltage
Floating DC inputs without a common reference create erratic ON/OFF flickering.
- Quick Fix: Tie all field commons to a single isolated ground at the TA; no daisy-chaining.
Overlooking Redundancy Adapter (P0926ZY)
Rookies wire redundant FBM217s without the adapter—results in conflicting data and FAULT lights.
- Field Rule: Redundant pairs require P0926ZY. It shares the TA and handles switchover logic.
