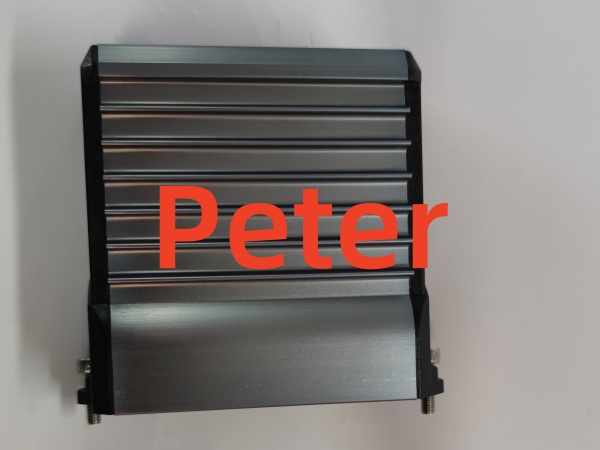

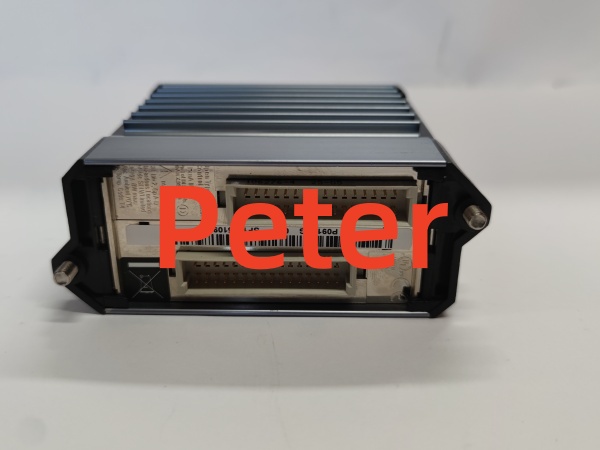

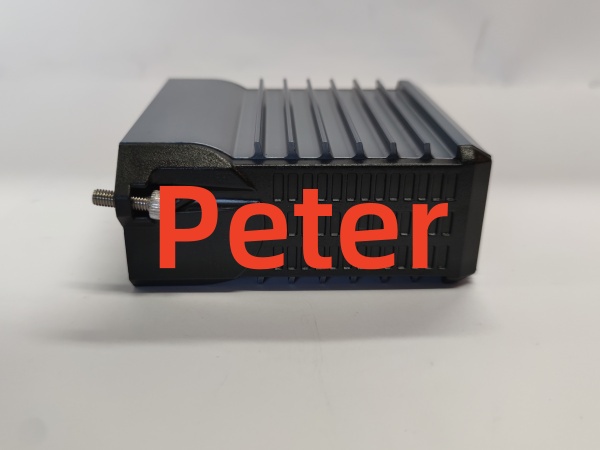

Foxboro FBM205 P0914XG | 4-In/4-Out Redundant Analog I/O – Field Service Notes

• Description

Hard-Numbers: Technical Specifications

• AI Channels: 4× isolated, redundant; 0–20.4mA DC
• AO Channels: 4× isolated, redundant; 0–20.4mA DC
• Resolution: 16-bit sigma-delta ADC/DAC
• Accuracy: ±0.1% FS (25°C); ±0.25% FS over temp
• Isolation: 1500V AC channel-to-channel & channel-to-ground
• Backplane Power: 24VDC ±5%/−10%; 4.5W max per module
• Comm: Redundant 2Mbps fieldbus to FCP/FCM; HART compatible
• Operating Temp: −20°C to +70°C; Class G3 harsh environment rated
• Dimensions: 114 × 45 × 104mm; weight 0.28kg
• Mounting: Compact 200 Series rack; hot-swap capable

The Real-World Problem It Solves

Critical loops (feed valves, reactor controls) can’t tolerate I/O module failure. Single-point I/O failures cause unplanned shutdowns; non-isolated modules create ground loops and signal drift.

Where you’ll typically find it:

• Refineries: Flow control valves on crude distillation and FCC units
• Power plants: Boiler feedwater valve positioning and steam pressure control
• Chemical plants: Reactor inlet/outlet valve control and pH loop modulation

Combines redundant AI/AO in one slot, eliminates single-point failure, and breaks ground loops—cutting critical loop downtime by 70% in field data.

Hardware Architecture & Under-the-Hood Logic

Redundant I/O module with independent isolated channels, designed for zero single-point failure. No on-board CPU; relies on FCP/FCM for control logic.

1. Field 4–20mA AI signals enter via TA terminals; each channel isolated (1500VAC).
2. Sigma-delta ADC converts analog to 16-bit digital; redundant sampling for fault tolerance.
3. Backplane logic validates data; bad channel flagged, switches to redundant path.
4. FCP/FCM sends setpoints; 16-bit DAC converts to 4–20mA AO; per-channel isolation.
5. Redundant fieldbus links ensure data delivery even if one path fails.
6. Dual RUN/FAULT LEDs show module/channel health; hot-swap supported.
7. HART pass-through enables smart transmitter configuration and diagnostics.

FBM205

Field Service Pitfalls: What Rookies Get Wrong

Mismatched Redundancy & TA WiringTechs wire both AI/AO channels to same TA or mix redundant pairs. Module faults; loops drop out on single path failure.

• Field Rule: Wire each redundant AI/AO pair to separate TA terminals; keep redundant paths physically separated.

Ignoring AO Fail-Safe ConfigurationRookies leave AO fail-safe set to “hold” on power loss. Valves freeze in unsafe positions during outage.

• Quick Fix: Set AO fail-safe to “fallback” (0mA or 20mA) based on valve fail-open/fail-close requirements.

Overloading Loop Power on Redundant PairsParallel redundant loop power circuits; overdraw causes voltage drop, transmitters drop out.

• Field Rule: Use TA jumpers for single-source redundant loop power; avoid daisy-chaining 24VDC across pairs.
