Foxboro FBM201 | 8-Channel Isolated Analog Input Module | I/A Series DCS – Field Service Notes

• Description

Hard-Numbers: Technical Specifications

• Protocol Support: Foxboro I/A backplane bus; HART 5/7 (jumper-enabled)
• Port Count: 8 isolated differential input channels
• Signal Ranges: : 0–20mA (4–20mA compatible); FBM201b: 0–100mV; FBM201c: 0–5V; FBM201d: 0–10V
• Resolution: 16-bit (65536 levels)
• Accuracy: ±0.03%–±0.1% FS; temp coeff ±50ppm/°C
• Isolation Rating: 600V AC (channel-to-channel, channel-to-ground, 1 minute)
• Operating Temperature: 0°C to +60°C (ISA G3 harsh environment rated)
• Power Draw: 24VDC (backplane-fed); 3.5W typical
• A/D Conversion: Sigma-Delta per channel; 25ms sampling; 1s update rate
• Input Impedance: 61.5Ω nominal
• Protection: Current-limited (<40mA/channel); short-circuit protected

The Real-World Problem It Solves

Plant floor analog signal noise and ground loops wreck readings and trigger false trips. Unisolated cards fail fast in high-interference areas near VFDs and heavy motors.

Where you’ll typically find it:

• Refinery crude unit pressure/flow transmitters (4–20mA)
• Power plant boiler drum level and steam temperature loops
• Water treatment pH/conductivity sensor banks
• Any 2/4-wire transmitter setup needing HART diagnostics

Bottom line: It delivers stable, isolated mA/V readings where noise kills cheaper non-isolated modules.

Hardware Architecture & Under-the-Hood Logic

It’s a slave I/O module with no onboard CPU—relies on I/A Series controller (FCP270/FCP280) for processing. Fully isolated design; no common ground between channels or backplane.

1. Field 4–20mA signal enters FTA terminal block, routed to module via ribbon cable.
2. Each channel’s Sigma-Delta converter samples at 25ms, filters 50/60Hz noise (100+dB rejection).
3. 16-bit digital values buffered onboard; averaged over 1 second.
4. Data sent to controller over backplane bus; HART data interleaved if jumper enabled.
5. LEDs indicate RUN (green solid), FAULT (red flash), and channel activity.

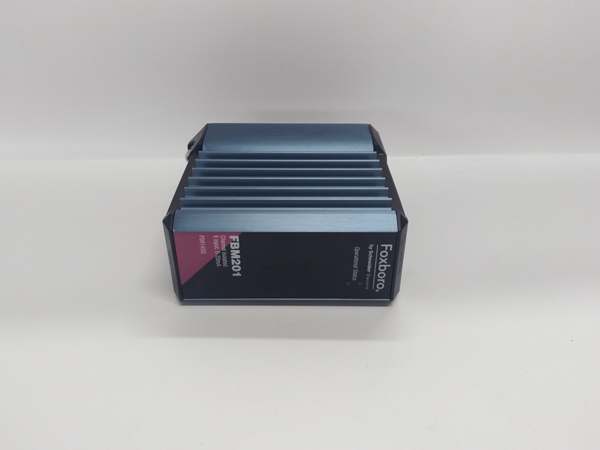

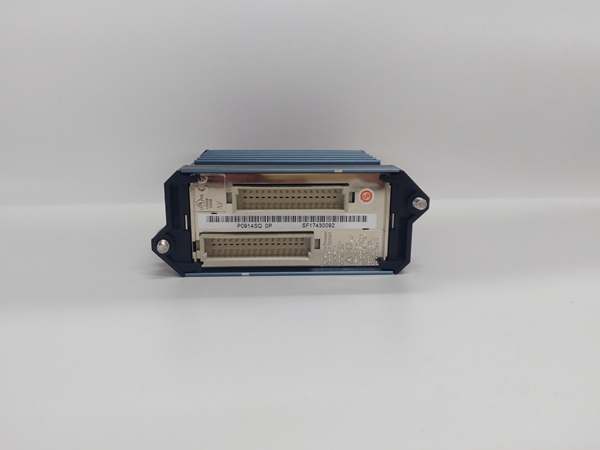

Foxboro FBM201

Field Service Pitfalls: What Rookies Get Wrong

Shielding & Grounding Mistake

Most techs ground shields at both ends, creating ground loops that skew 4–20mA readings by 5–15%. Seen it shut down a FCC unit once.

• Field Rule: Shield only at FTA cabinet; tape and isolate field end. Use twisted-pair shielded wire, 18–22AWG.

HART Jumper Misconfiguration

Rookies leave HART jumpers on for non-HART loops, causing signal attenuation and intermittent drops.

• Quick Fix: Jumper ON only for HART transmitters; OFF for standard analog. Verify with handheld HART communicator.

Overheating Due to Dust Buildup

Dirty heat sinks push temps over 60°C, triggering FAULT lights and drifting accuracy. Common in coal-fired plants.

• Field Rule: Quarterly cleaning with dry, low-pressure air (≤30psi). Keep cabinet fans clear; maintain 0–60°C ambient.
