Manufacturer: Modules Part number: CM400YH
Our extensive Modules catalogue, including
: CM400YH
, is available now for dispatch to the worldwide.
Brand: FOXBORO
The listed price is not final; the actual selling price is negotiable based on current market conditions.
Product Series: Foxboro I/A Series DCS (FBM07 I/O family)
Hardware Type: 16-channel isolated digital input (DI) module
Key Feature:16 isolated dry contact/DC voltage inputs; 250V isolation
Primary Field Use: Monitoring on/off devices (valves, relays, limit switches) in refineries, power plants, and chemical plants.

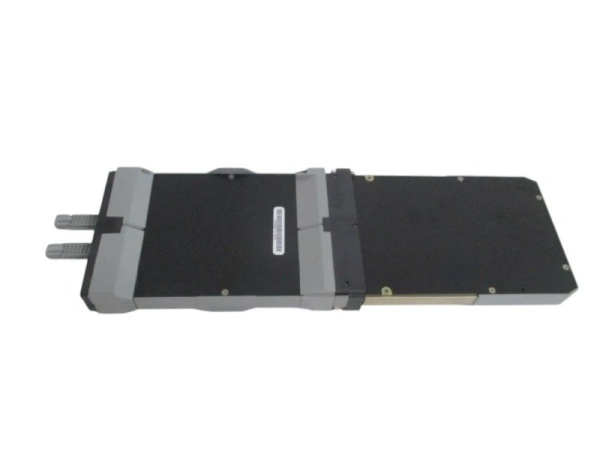

Foxboro CM400YH
Hard-Numbers: Technical Specifications
Channel Count: 16 digital input channels (dry contact or 0–60VDC)
Input Type: Dry contact (NO/NC) or DC voltage (12/24/48VDC common)
Isolation Rating: 250V AC (channel-to-channel, channel-to-ground)
Response Time: <1ms per channel
Operating Temperature: 0°C to +60°C (ISA G3 harsh environment)
Storage Temperature: -40°C to +85°C
Power Draw: 24VDC (backplane); ~10W typical
Input Impedance: >10kΩ (DC voltage mode)
Status Indicators: 16 channel LEDs (ON/OFF), RUN (green), FAULT (red)
Certifications: CE, UL, CSA
Dimensions: 140mm × 165mm × 45mm
Weight: ~0.6kg
The Real-World Problem It Solves
Non-isolated DI cards ground-loop noise and cross-trip adjacent channels. Cheap unisolated cards fail fast in corrosive, high-noise areas like coal yards and pump houses.
Where you’ll typically find it:
Refinery valve position feedback (limit switches, solenoid status)
Power plant boiler interlocks (pressure switches, flame detectors)
Chemical plant safety shower/emergency stop (E-stop) circuits
Any 16-point on/off monitoring needing full channel isolation
Bottom line: It keeps discrete signals clean and isolated so noise doesn’t cause false trips or hidden faults.
Hardware Architecture & Under-the-Hood Logic
It’s a slave I/O module with no onboard CPU—depends on I/A Series FCP. Opto-isolated per channel; no common ground between field and backplane.
Field contact/VDC signal lands on FTA; routed to opto-coupler per channel.
Opto-isolator blocks ground loops; converts field signal to 5V logic.
16-channel logic bank feeds backplane bus; FCP scans all points in <1ms.
LED per channel lights when input is active (dry contact closed or DC present).
FAULT LED triggers on open fuse, backplane comms loss, or overvoltage.

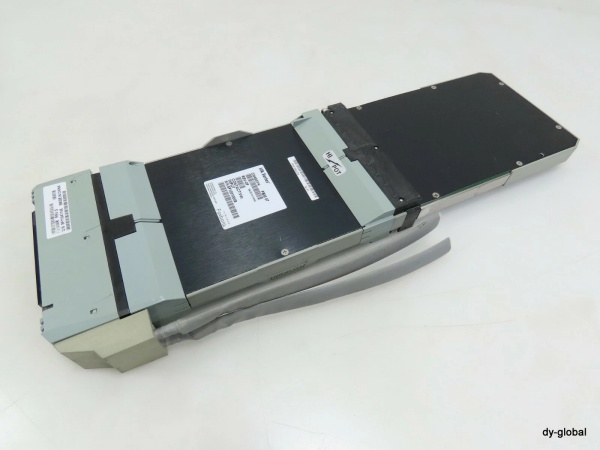

Foxboro CM400YH
Field Service Pitfalls: What Rookies Get Wrong
Mixing Dry Contact and DC Inputs on the Same Card
Rookies wire some channels for dry contact, others for 24VDC—causes ghost triggering and intermittent FAULT lights.
Field Rule: Set card for one input type only (all dry contact or all DC); use separate cards for mixed signals.
Ignoring Common-Mode Voltage
Techs tie multiple contact commons to a dirty ground—24VDC common-mode leaks trigger false ON states.
Quick Fix: Wire each contact common to isolated FTA common; never mix with instrument ground.
Over-Torquing FTA Terminals
Rookies crank screws down too hard—cracks FTA traces, creates high-resistance joints that fail in vibration.
Field Rule: Torque to 0.8–1.0 N·m; check for loose wires during every outage.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
