Description
Key Technical Specifications
- Model Number: A4H254-8F8T P0973JP
- Manufacturer: Enterasys (Extreme Networks)
- Ports: 8×10/100/1000BASE-T (RJ45, PoE+), 8x1000BASE-X (SFP slots, fiber), 1xConsole (RS-232)
- PoE+ Capability: IEEE 802.3af/at compliant, 370W total PoE budget, 30W max per port
- Switching Capacity: 32Gbps (non-blocking), forwarding rate 23.76 Mpps
- Layer Support: Layer 2 (VLAN, STP/RSTP/MSTP), Layer 3 (static routing, RIP v1/v2, OSPF)
- Operating Temperature: -40°C to 75°C (-40°F to 167°F), fanless design (passive cooling)
- Power Supply: Dual redundant 100-240V AC or 24-48V DC (configurable), 60W max power consumption (non-PoE)
- Protection Rating: IP40 (chassis), IEC 60068-2-6 (vibration), IEC 60068-2-27 (shock)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Certifications: UL 508, CE, ATEX Zone 2, IECEx, IEEE 802.3 standards compliant
- Management: Web GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3, Enterasys NetSight compatible

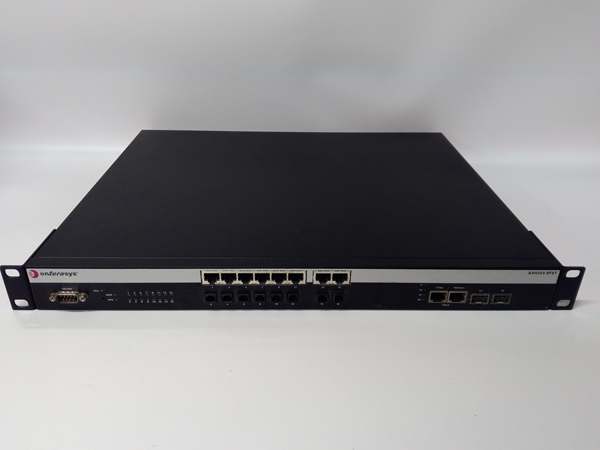

Enterasys A4H254-8F8T P0973JP
Field Application & Problem Solved
In industrial automation and critical infrastructure—power plants, oil refineries, transportation hubs—the biggest network challenge is reliable connectivity in harsh environments. Legacy switches fail in extreme temperatures, lack PoE to power field devices, or can’t handle the mix of copper and fiber connections needed for distributed networks. I saw this at a North Dakota oil field in 2022: a commercial-grade switch failed after 3 months in -35°C cold, cutting off communication to 12 pipeline pressure sensors and delaying production for 12 hours. The A4H254-8F8T P0973JP solves this with fanless rugged design, PoE+ power, and dual media support—keeping networks online in the toughest conditions.
You’ll find this switch in three critical scenarios: powering IP cameras and access control in transportation tunnels (where -40°C to 75°C tolerance handles extreme heat/cold), connecting PLCs and HMI devices in refinery process areas (where PoE eliminates the need for separate power cables), and linking distributed sensors in water treatment plants (where fiber SFP slots enable long-distance connections). At a Texas power plant retrofit in 2023, we replaced 18 fragile commercial switches with this model—eliminating all temperature-related outages and reducing wiring costs by 40% (thanks to PoE powering field devices).
Its core value is “industrial ruggedness with enterprise functionality.” Unlike consumer-grade switches, it survives vibration, temperature extremes, and dust without performance hits. The 370W PoE budget powers up to 8 high-draw devices (e.g., PTZ cameras, wireless access points) simultaneously, while the SFP slots support fiber runs up to 10km—critical for large facilities. For networks requiring 24/7 uptime, it’s a workhorse that combines the reliability of industrial hardware with the management features needed for complex control systems.
Installation & Maintenance Pitfalls (Expert Tips)
Overloading the PoE Budget:
Rookies often connect more high-power PoE devices than the switch can handle, causing unexpected power cuts. A Colorado refinery connected 8x30W PTZ cameras (240W total) plus 4x15W sensors—exceeding the 370W budget and triggering a PoE overload fault. Calculate total PoE draw before deployment: use 30W per 802.3at device and 15.4W per 802.3af device. Enable “PoE priority” in the switch config to prioritize critical devices (e.g., safety sensors) over non-essential ones (e.g., auxiliary cameras) during overloads.
Ignoring Fiber SFP Compatibility:
Not all SFP modules work with the switch—using generic or incompatible SFPs causes link flapping. A Pennsylvania water plant installed cheap third-party SFPs; the switch dropped fiber links 3x per day. Use Enterasys-approved SFPs (part number P0888SF) or verified compatible modules (e.g., Extreme Networks 1000BASE-LX SFP). After installation, check SFP status via the web GUI—look for “Module OK” and stable signal levels (-10dBm to -20dBm for LX modules).
Skipping Redundant Power Configuration:
The switch supports dual redundant power supplies, but many installers use a single supply—creating a single point of failure. A Florida transportation tunnel relied on one power supply; a surge fried it, taking down the entire camera network for 6 hours. Connect dual supplies to separate power buses (e.g., Plant A and Plant B power) for true redundancy. Enable “power failover” in the switch settings to ensure seamless transition if one supply fails. Test monthly by disconnecting one supply and verifying the switch continues operating without disruption.
Poor VLAN Segmentation:
Failing to segment industrial control traffic from non-critical data causes network congestion. A Michigan manufacturing plant ran PLC, HMI, and office traffic on the same VLAN; file transfers slowed control loop communication to 500ms latency. Create separate VLANs for control (PLC/I/O), monitoring (cameras), and management (SSH/Web GUI) traffic. Use Layer 3 static routing to allow necessary communication between VLANs while blocking unnecessary traffic. Monitor VLAN bandwidth via SNMP to keep control traffic latency below 10ms.

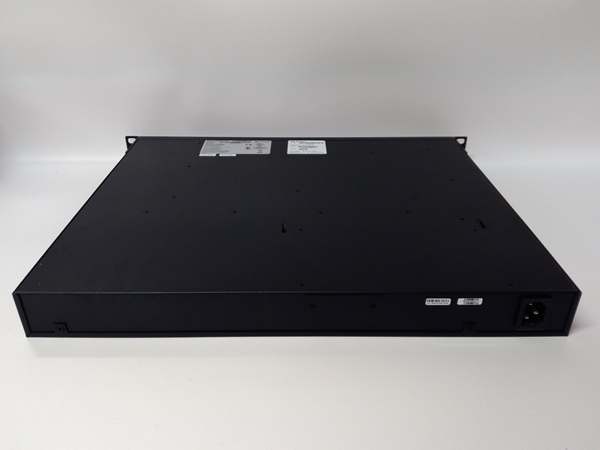

Enterasys A4H254-8F8T P0973JP
Technical Deep Dive & Overview
The Enterasys A4H254-8F8T P0973JP is a rugged managed switch engineered for industrial networks, designed to connect and power field devices while withstanding harsh conditions. At its core, a 32-bit network processor handles Layer 2/Layer 3 switching, with a non-blocking 32Gbps fabric ensuring no packet loss even at full load. The fanless passive cooling design uses a rugged aluminum chassis to dissipate heat, eliminating moving parts that fail in dusty or vibrating environments.
PoE+ functionality is enabled via integrated power sourcing equipment (PSE) circuits, complying with IEEE 802.3af/at to deliver up to 30W per RJ45 port. The switch dynamically allocates PoE power based on device requirements, preventing overloads via built-in load monitoring. The 8 SFP slots support fiber media conversion, enabling long-distance connections (up to 10km with single-mode SFPs) to link distributed plant areas without signal degradation.
Management features include web GUI for easy configuration, CLI for advanced tweaks, and SNMP for centralized monitoring via tools like Enterasys NetSight. Layer 3 routing capabilities (static, RIP, OSPF) let it act as a core or distribution switch in small-to-medium industrial networks, eliminating the need for separate routers. What sets it apart is its industrial-grade durability: it’s tested to survive -40°C cold, 75°C heat, and 5g vibration—far beyond commercial switches. It’s not just a network device; it’s a reliable backbone for industrial control systems, built to keep critical data flowing where lesser switches fail.
