Description
Hard-Numbers: Technical Specifications
- Port Count: 24 × 10/100/1000BASE-T ports (RJ-45)
- Switching Capacity: 48 Gbps
- Forwarding Rate: 35.7 Mpps
- Protocol Support: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1Q (VLAN), 802.1p (QoS), 802.1w (RSTP)
- Operating Temperature: 0°C to +50°C (commercial), -40°C to +70°C (industrial variants)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Power Supply: 100-240 VAC or 48 VDC (redundant power options available)
- Power Draw: 35W typical (maximum 60W with full load)
- Isolation Rating: 1500 VDC power-to-ground isolation (DC variants)
- Certifications: CE, UL, CSA, FCC, RoHS
- Dimensions: 440 × 44 × 260 mm (19-inch rack mount, 1U height)

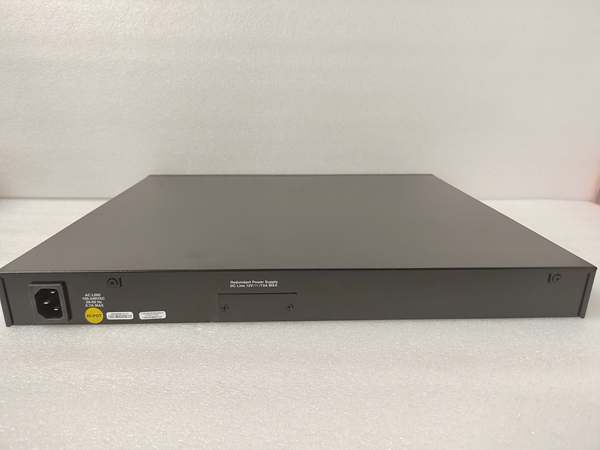

ENTERASYS A4H124-24TX
The Real-World Problem It Solves
Network congestion and broadcast storms kill control systems. Unmanaged switches can’t prioritize traffic or isolate faults, leading to communication loss between controllers and workstations. The A4H124-24TX provides Layer 2+ management features—VLAN segmentation, QoS prioritization, RSTP redundancy—allowing you to segregate critical control traffic from office data, prioritize DCS messages, and recover from link failures without plant trips.
Where you’ll typically find it:
- DCS network cabinets connecting controllers and HMI workstations
- PLC communication hubs in manufacturing cells
- Security camera network aggregation points
- Enterprise network edge switches in office environments
Bottom line: It delivers managed, reliable network connectivity with traffic control.
Hardware Architecture & Under-the-Hood Logic
This Layer 2 managed switch features non-blocking switching architecture with a high-speed backplane. Each port has independent collision domain detection and auto-negotiation. The switch’s firmware supports advanced network management features including VLAN tagging, storm control, and spanning tree protocols.
- Ingress traffic enters through any port and is buffered in the switch’s packet memory.
- The forwarding engine examines destination MAC addresses and consults the MAC address table.
- Based on the MAC table, packets are forwarded to the appropriate destination port(s) or flooded if the destination is unknown.
- VLAN tags are examined to enforce traffic segregation between logical networks.
- QoS priorities are applied to ensure critical traffic (e.g., control messages) gets preferential treatment.
- RSTP monitors network topology and blocks redundant paths to prevent loops while maintaining alternate paths for failover.

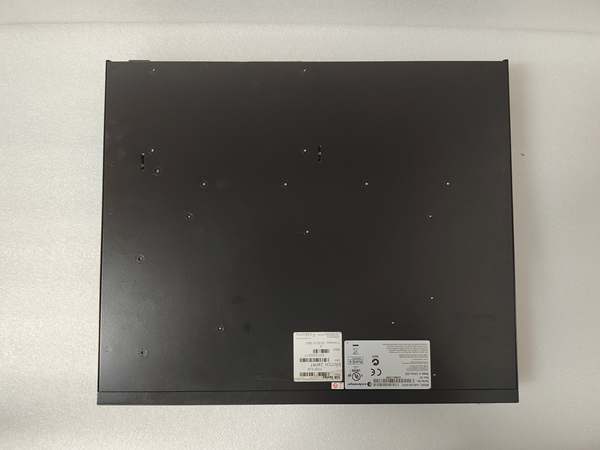

ENTERASYS A4H124-24TX
Field Service Pitfalls: What Rookies Get Wrong
Ignoring Storm Control SettingsNew engineers leave broadcast storm control disabled or set too high. A single malfunctioning device floods the network with broadcasts, causing switch CPU spikes and communication loss.
- Field Rule: Enable broadcast storm control on all ports. Set broadcast rate limits to 100-200 packets per second for control networks, higher for office networks.
Improper VLAN SegregationTechnicians connect control traffic and office data to the same VLAN without proper segmentation. Office network storms or malware traffic impact control system communications.
- Field Rule: Strictly segregate control networks and office networks using VLANs. Never mix critical control traffic with general IT traffic on the same VLAN.
Disabling RSTP or Misconfiguring Spanning TreeRookies disable Rapid Spanning Tree Protocol to “simplify” configuration, or connect switches without understanding port states. Network loops occur during maintenance, bringing down the entire network.
- Quick Fix: Enable RSTP on all switches. Verify port states match your network topology—ensure designated ports are forwarding and blocked ports are correctly identified.
Using Standard CAT5e in Industrial EnvironmentsRunning office-grade Ethernet cable in industrial plants leads to cable degradation, intermittent faults, and eventual failure from EMI and physical damage.
- Field Rule: Use industrial-grade shielded CAT6 or CAT6a cable with UV-resistant jackets for industrial installations. Properly ground cable shields at the cabinet end.
