Description
Hard-Numbers: Technical Specifications
- Protocol Support: Thermocouple inputs (Type J, K, T, E, N, B, R, S)
- Port Count: 8 channels
- Input Voltage Range: ±50 mV (typical TC voltage range)
- Accuracy: ±0.5°C or ±0.1% of reading (whichever is greater)
- Resolution: 16-bit
- Isolation Rating: 1500 VDC channel-to-system optical isolation
- Power Draw: 2.5W typical (24 VDC backplane power)
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Terminal Block: 16-pin TC Terminal Block (screw terminals)
- Certifications: CE, UL, CSA, ATEX, IECEx

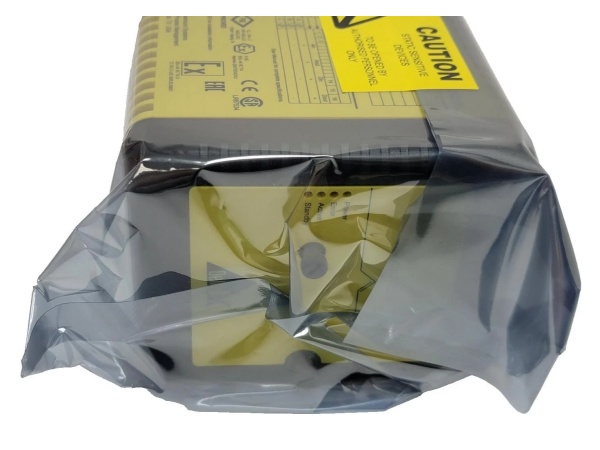

EMERSON VS3202
The Real-World Problem It Solves
Temperature is the most common process variable in industrial control. The VS3202 provides direct thermocouple input with cold junction compensation, eliminating the need for external transmitters. It supports multiple thermocouple types, offers channel-to-system isolation to prevent ground loops, and delivers accurate temperature measurement for process control and safety applications.
Where you’ll typically find it:
- Reactor temperature monitoring in chemical plants
- Furnace and boiler temperature measurement in power generation
- Distillation column temperature profiling in refineries
- Heat exchanger temperature monitoring in HVAC systems
Bottom line: It delivers accurate, reliable temperature measurement for process control.
Hardware Architecture & Under-the-Hood Logic
This thermocouple input card features isolated analog front-end circuitry and digital signal processing. Each channel has independent A/D conversion and CJC measurement. The card continuously compensates for cold junction temperature and linearizes the thermocouple signal.
- The thermocouple millivolt signal enters through the terminal block and passes through an input filter.
- An internal temperature sensor measures the cold junction (terminal block) temperature for CJC.
- Isolated A/D converters digitize both the TC signal and CJC temperature for each channel.
- The card’s processor applies CJC compensation and linearizes the thermocouple curve based on the selected TC type.
- Compensated temperature values are transmitted to the DeltaV controller via the backplane.
- Diagnostics circuits monitor for open circuits, short circuits, and out-of-range conditions.

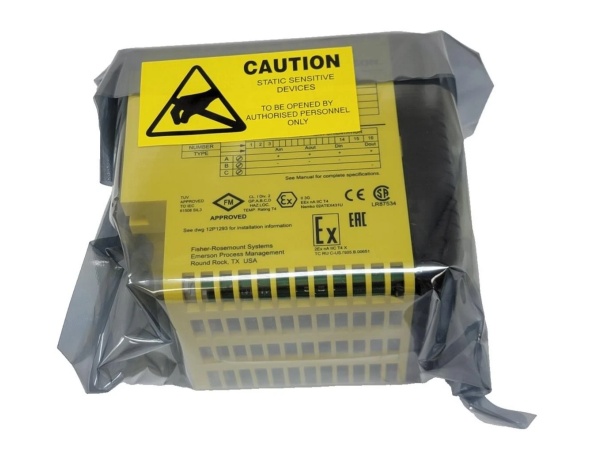

EMERSON VS3202
Field Service Pitfalls: What Rookies Get Wrong
Incorrect Thermocouple Type ConfigurationNew engineers configure the channel for the wrong thermocouple type (e.g., Type J instead of Type K). The temperature reading is wildly inaccurate because the linearization algorithm doesn’t match the actual thermocouple.
- Field Rule: Always verify the thermocouple type physically installed matches the configuration in DeltaV Explorer. Label both the field device and the channel.
Improper Extension Wire UsageTechnicians use standard copper wire instead of thermocouple extension wire. This introduces measurement errors because the copper wire’s thermoelectric properties don’t match the thermocouple.
- Field Rule: Use thermocouple extension wire matched to the TC type (e.g., JX extension wire for Type J thermocouples). Never use standard copper wire for TC extension.
Ground Loops from Multiple Grounded TCsRookies connect multiple thermocouples to the same card without considering grounding. If more than one TC is grounded at the field device, ground loops occur, causing erratic readings.
- Field Rule: Ground only one thermocouple per input card, or use isolated TC inputs. If multiple grounded TCs are required, use an isolation barrier.
Ignoring Cold Junction Temperature DriftNew engineers don’t account for cabinet temperature changes affecting cold junction compensation. If the cabinet gets hot, CJC errors creep into the measurement.
- Field Rule: Ensure adequate cabinet ventilation. For high-accuracy applications, install the card in a temperature-controlled environment or use external CJC.
