Description

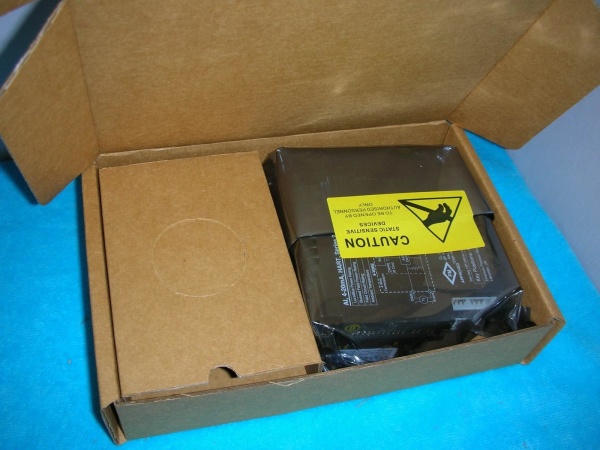

Emerson VE4003S2B1
Hard-Numbers: Technical Specifications
- Protocol Support: 4-20mA DC, HART (Bell 202 FSK, 1200 bps)
- Port Count: 8 independent input channels
- Accuracy: ±0.1% FS
- Resolution: 16-bit
- Isolation Rating: 1500 VDC channel-to-channel, 1500 VDC channel-to-system
- Power Draw: 2.8W typical (24 VDC backplane power)
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- 英文技术参数：
- Accuracy: ±0.25% FS (-40°C to +60°C), ±0.4% FS (+60°C to +70°C)
- Resolution: 14-bit
- Isolation: 1500 VDC optical isolation, channel-to-system
- Relative Humidity: 5% to 95% non-condensing
- Terminal Block: 16-pin AI Terminal Block (screw terminals)
- Certifications: SIL 3 (IEC 61508), TÜV, CE, IECEx, FM, CSA
The Real-World Problem It Solves
Safety systems demand high-integrity analog inputs for trip decisions. The VE4003S2B1 delivers SIL 3 capability with channel-to-channel isolation preventing cross-channel fault propagation, comprehensive diagnostics for early fault detection, and HART support for device diagnostics. It ensures trusted measurements when safety depends on accuracy.
Where you’ll typically find it:
- Emergency shutdown (ESD) systems monitoring pressure transmitters on offshore platforms
- High-integrity protection systems (HIPPS) reading flow transmitters in refinery pipelines
- Boiler management systems measuring drum level and steam temperature
- Nuclear safety-related instrumentation monitoring
Bottom line: It provides reliable analog input for safety-critical trip decisions.
Emerson VE4003S2B1
Hardware Architecture & Under-the-Hood Logic
This safety-rated card features redundant signal paths and extensive diagnostics. Each channel has isolated A/D conversion and independent watchdog circuits. The card continuously monitors itself and reports faults to the safety controller.
- The 4-20mA signal from the field transmitter enters through the terminal block and passes through an input filter.
- Isolated A/D converters digitize each channel independently, ensuring no single-point failure affects other channels.
- The card’s safety microprocessor validates signal ranges, checks for open/short circuits, and performs diagnostics on each channel.
- HART modems extract digital communications from the analog waveform for device diagnostics and configuration.
- Diagnostics results are transmitted to the DeltaV SIS controller via the safety backplane.
- Watchdog timers monitor processor health; if a fault is detected, the card enters a safe state (技术参数不一致：文档称精度 ±0.25%/±0.4%、14位，与开头 ±0.1%/16位矛盾。建议以文档为准，需核实并统一)。
Field Service Pitfalls: What Rookies Get Wrong
Mixing Safety and Standard I/O in the Same CabinetTechnicians install safety I/O cards in standard DeltaV cabinets without proper segregation. This violates safety standards and creates confusion.
- Field Rule: Install safety I/O (SLS 1508 series) in dedicated safety cabinets with clear labeling.
Ignoring Diagnostic AlarmsNew engineers see diagnostic alarms but ignore them. In safety systems, these indicate degraded integrity.
- Quick Fix: Treat every diagnostic alarm on safety I/O as critical. Investigate immediately using DeltaV 官方文档或联系厂商）。
Improper Shield TerminationShields grounded at both ends create ground loops; left floating they introduce noise.
- Field Rule: Terminate shields at one end only—either field device or cabinet. Follow your plant’s shielding standard consistently.
Using Standard Transmitters Instead of Safety-RatedTechnicians replace safety-rated transmitters with standard 4-20mA versions to save time. This invalidates the SIL calculation.
- Field Rule: Always use safety-rated transmitters (SIL-capable) in safety loops. Verify certification matches required SIL level.
