Description
Hard-Numbers: Technical Specifications
- Protocol Support: Ethernet 10/100/1000 Mbps (auto-negotiating)
- Port Count: 16 ports (copper RJ-45, 10/100/1000BASE-T)
- Redundancy: Dual power inputs (24 VDC), Rapid Spanning Tree Protocol (RSTP)
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Power Draw: 12W typical (24 VDC)
- Isolation Rating: 1500 VDC power-to-ground isolation
- Certifications: CE, UL, CSA, ATEX, IECEx
- Dimensions: Standard 19-inch rack mount (1U height)

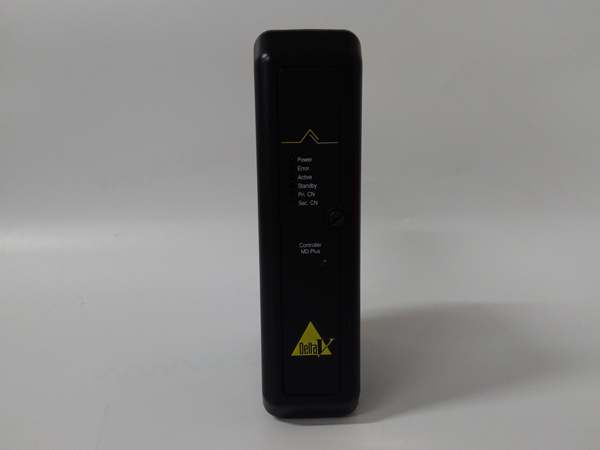

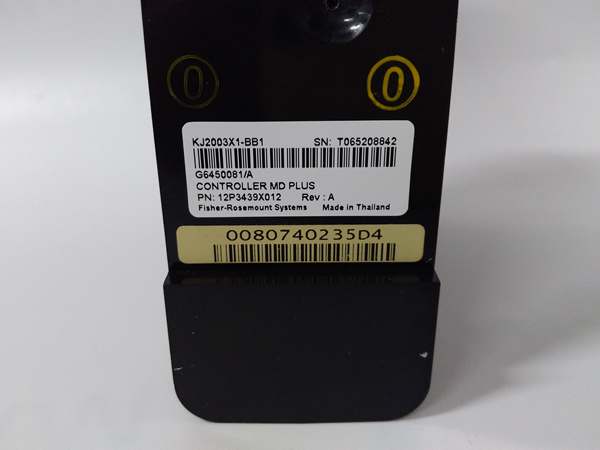

EMERSON VE3006
The Real-World Problem It Solves
Network single-point failure in DCS architecture means loss of controller communication, operator visibility, and process control. The VE3006 eliminates this through dual power feeds and RSTP redundancy—if one power supply fails or one network path goes down, the switch keeps traffic flowing. Industrial-grade design survives harsh environments where commercial switches die in months.
Where you’ll typically find it:
- Control room network cabinets connecting DeltaV controllers
- Remote I/O racks in hazardous areas
- Operator workstation hubs in HMI networks
- Safety instrumented system (SIS) networks requiring high availability
Bottom line: It keeps your DeltaV network alive when power cables get cut or switches fail.
Hardware Architecture & Under-the-Hood Logic
The VE3006 is a managed Layer 2 Ethernet switch designed for industrial automation. It sits on the DeltaV control network backbone, handling traffic between controllers, I/O cards, and workstations. Dual power inputs feed internal DC-DC converters, providing redundancy without external diode modules.
- Ingress traffic enters through any of the 16 RJ-45 ports and is buffered in the switch’s memory.
- The switch’s forwarding engine examines MAC addresses and directs packets to the correct destination port based on its MAC address table.
- RSTP actively monitors network topology and blocks redundant paths to prevent loops while maintaining alternate paths for failover.
- Power circuitry monitors both DC inputs; if one fails, the other takes over without interruption (<10ms switchover).
- Internal watchdog timers monitor switch health and trigger alarms if faults are detected.

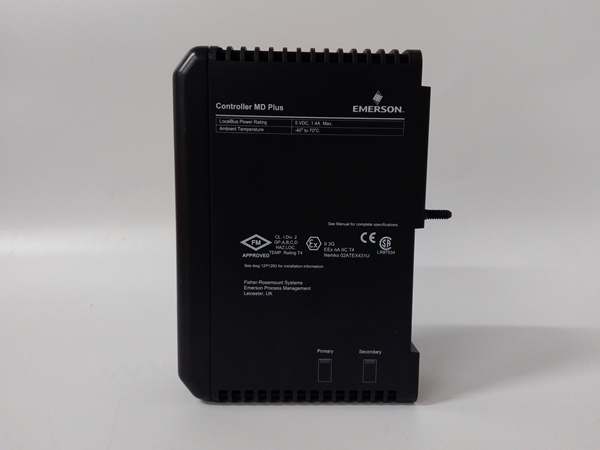

EMERSON VE3006
Field Service Pitfalls: What Rookies Get Wrong
Connecting Both Power Inputs to the Same SourceTechnicians wire both 24 VDC inputs to the same power supply, defeating the purpose of redundancy. When that supply fails, the switch loses power completely.
- Field Rule: Connect each power input to separate, independent power sources or separate breakers on the same supply.
Ignoring RSTP Configuration ErrorsNew engineers plug cables between switches without enabling RSTP or understanding the spanning tree topology. Network loops occur, broadcast storms take down the control network, and the plant trips.
- Quick Fix: Ensure RSTP is enabled on all DeltaV switches. Verify port states (Forwarding/Blocking) match your network diagram.
Using Commercial CAT5e Cable in Hazardous AreasRunning standard office-grade Ethernet cable in refinery environments leads to cable degradation, intermittent faults, and eventual network failure.
- Field Rule: Use industrial-grade, shielded CAT6 or CAT6a cable with UV-resistant jackets for outdoor or hazardous area installations.
Hot-Swapping Without Proper GroundingReplacing a live switch without proper ESD precautions or grounding can damage the new switch or cause network glitches.
- Quick Fix: Ground yourself and the switch chassis before handling. Use antistatic wrist straps when working in energized cabinets.
