Hardware Architecture & Under-the-Hood Logic

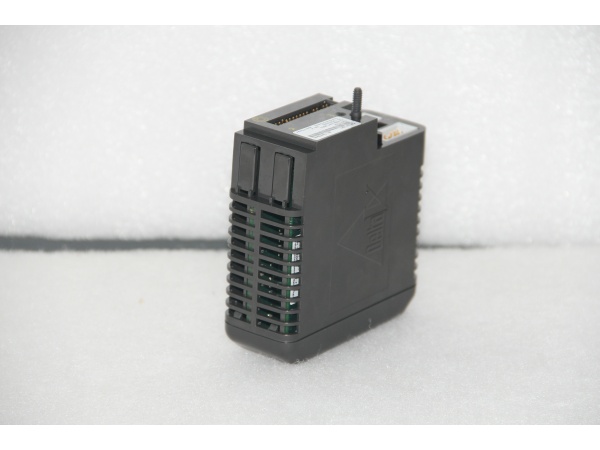

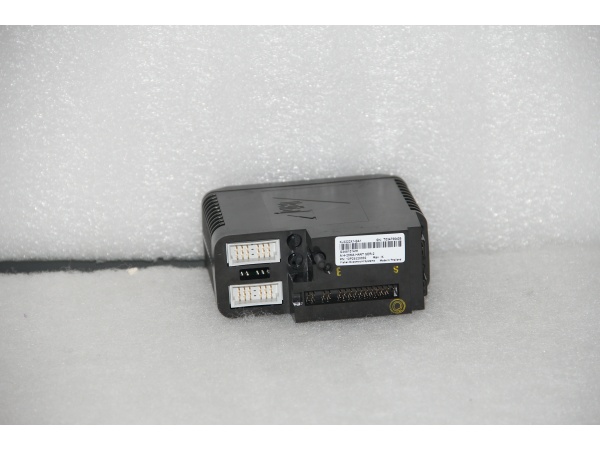

This is a isolated, microprocessor-based AI module with HART modems per channel. No analog-only circuits—all data digitized on-board.

1. Field 4–20mA enters; surge protection and EMI filtering first.
2. Each channel goes through 1500VDC isolation barrier (transformer-based).
3. 16-bit ADC converts analog current to digital values; microprocessor scales to engineering units.
4. HART modem superimposes/decodes digital HART data on 4–20mA; passes to DeltaV controller.
5. Backplane communication links processed data to DeltaV controller; receives config.
6. Fault logic monitors overcurrent, open circuit, isolation breakdown; reports to controller.

Field Service Pitfalls: What Rookies Get Wrong

Mixing Series 2 and Series 2+ Bases

Rookies plug into older Series 2 bases (12P2531X). Pinout and power sequencing differ—module powers up but won’t communicate; can damage backplane.

• Field Rule: Use only Series 2 Plus bases (12P2532X072/092). Match base and module part numbers.

Overlooking HART Address Conflicts

Techs assign same HART address (0) to multiple transmitters on different channels. All devices respond at once—garbled data, no diagnostics.

• Quick Fix: Set unique HART addresses (1–15) per transmitter; use DeltaV HART explorer to verify.

Ignoring Field Grounding & Shield Practices

Installers ground shield at both ends or leave it floating. Common-mode noise causes signal drift, erratic readings, or HART communication drops.

• Field Rule: Shield grounded only at the cabinet end. Field side shield cut and taped; avoid loops.
