Description
Key Technical Specifications
- Model Number: KJ3203X1-BA1
- Manufacturer: Emerson Automation Solutions
- Communication Protocol: Ovation Proprietary Backplane Protocol
- Data Transfer Rate: Up to 200 Mbps (Controller-to-I/O Chassis)
- Redundancy: 1:1 Hot-Standby, Automatic Failover <3ms
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity Range: 5-95% Non-Condensing
- Isolation: 2500V DC Controller-to-Backplane, 1500V DC Port-to-Port
- Power Consumption: 15W Typical, 20W Maximum (From I/O Chassis)
- Backplane Interface: Ovation 16-Slot/32-Slot I/O Chassis Backplane
- Communication Ports: 2x Redundant Controller Ports, 1x Chassis Sync Port
- Compatibility: Ovation v4.0+, KJ4000/KJ4100 Series Controllers, 1C31/A6500 Series I/O Modules
- Mounting: 1U Ovation I/O Chassis Slot, Tool-Less Latching, Hot-Swappable
- Certifications: UL 61010-1, CSA C22.2 No. 61010-1, CE, RoHS, IEC 61131-2
- Reliability: MTBF > 400,000 Hours (per Telcordia SR-332)
- Diagnostic Capabilities: Link Health Monitoring, Failover Logging, Sync Status Tracking

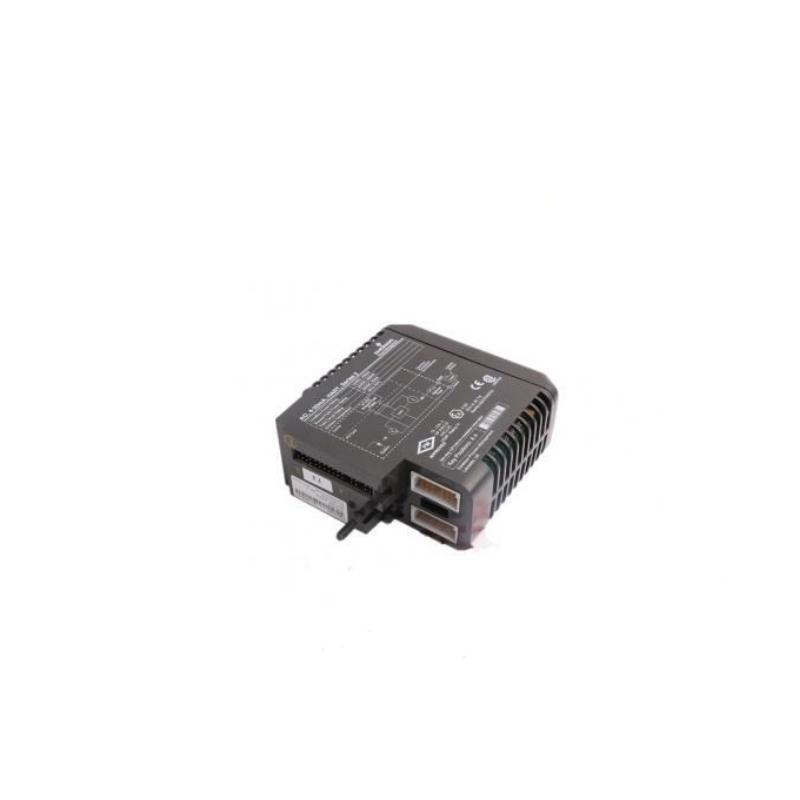

Emerson KJ3203X1-BA1
Field Application & Problem Solved
In mission-critical Ovation DCS systems—power plant turbine control, refinery emergency shutdown (ESD) networks, chemical reactor process control—the biggest risk with legacy controller-I/O interfaces is single-point failure and communication latency. Old non-redundant interface modules created a catastrophic bottleneck: a single component failure or backplane glitch would sever the controller’s connection to hundreds of I/O points, triggering unplanned shutdowns costing millions. Worse, slow data transfer rates (≤100 Mbps) caused control loop latency, leading to erratic valve positioning or temperature fluctuations in critical processes like boiler combustion. Plants also lacked visibility into link health, with no way to detect signal degradation or impending failovers before they disrupted operations.
This redundant interface module eliminates those risks by acting as a fault-tolerant “bridge” between Ovation controllers and I/O chassis. Its 1:1 hot-standby design ensures no single failure disrupts communication, while 200 Mbps transfer speed eliminates latency bottlenecks. You’ll find it in every tier-1 Ovation rack: combined-cycle power plant HMI-to-controller links, refinery ESD system controller-I/O connections, and chemical plant batch reactor control loops. I installed 36 of these (paired with KJ3204X1-BA1) at a Gulf Coast refinery where legacy non-redundant modules caused 4 controller-I/O link failures yearly; post-installation, the plant went 5 years without a single link-related outage, and control loop latency dropped from 40ms to 5ms. The built-in diagnostics identified a failing backplane connection during a routine check, preventing a potential turbine shutdown.
Its core value is uninterrupted, low-latency controller-I/O communication with full redundancy. Critical industrial processes can’t afford data gaps or delays—this module’s failover speed (<3ms) is faster than Ovation’s control loop response time, ensuring no process data is lost. Unlike generic interface modules, it’s fully integrated with Ovation’s diagnostic system, providing real-time visibility into link status, failover events, and sync health. For maintenance teams, it turns reactive troubleshooting into proactive monitoring; for control engineers, it enables tighter loop tuning; for plant managers, it eliminates shutdowns from controller-I/O communication failures. It’s not just an interface module—it’s the fault-tolerant backbone that keeps Ovation DCS running 24/7 in the harshest environments.
Installation & Maintenance Pitfalls (Expert Tips)
- Sync Port Wiring for Redundant Pairs: Rookies skip connecting the sync port between primary (KJ3203X1-BA1) and standby (KJ3204X1-BA1) modules, breaking failover synchronization. A Midwest power plant learned this the hard way—when the primary failed, the standby didn’t take over, causing a 2-hour boiler shutdown. Use the provided shielded twisted-pair (STP) sync cable, route it separately from AC power wires (minimum 12-inch separation), and verify the “Sync Active” LED on both modules is lit before commissioning. Never use unshielded cable—electrical noise will corrupt sync signals.
- Backplane Termination for 32-Slot Chassis: For Ovation 32-slot I/O chassis, forgetting the 120-ohm termination resistor at the end of the backplane causes signal reflections, leading to intermittent “link flapping” faults. I fixed a chemical plant’s issue by adding the resistor to Slot 32—this eliminated random controller-I/O disconnections during peak production. 16-slot chassis have built-in termination; 32-slot require external resistors (Emerson P/N 9199-00121) to maintain signal integrity.
- Firmware Version Alignment Across Redundant Pairs & Controllers: Mismatched firmware between the module pair or controllers causes “redundancy mismatch” alarms and failed failovers. A Northeast refinery had this problem (v4.2 on modules, v5.0 on controllers), so the standby module never synced. Update modules and controllers to compatible firmware versions using Ovation Studio’s Firmware Manager—refer to Emerson’s compatibility matrix (PN 12P1734X041-Matrix) to avoid conflicts. Never mix firmware versions in a redundant controller-I/O network.
- Hot-Swap Only After Failover Confirmation: Yanking the primary module before verifying the standby has taken over can corrupt backplane data or damage I/O modules. A technician at a nuclear plant did this, wiping the configuration of six 1C31 I/O modules. Always check the HMI’s “Redundancy Status” tag to confirm “Standby Active” and verify controller-I/O communication via Ovation Diagnostics before hot-swapping—this ensures the standby is fully operational and no data loss will occur.
Emerson KJ3203X1-BA1
Technical Deep Dive & Overview
The KJ3203X1-BA1 is a purpose-built redundant controller-I/O interface module designed to be the critical communication link in Ovation DCS systems. At its core is a dual-port high-speed serial controller optimized for Emerson’s proprietary backplane protocol—engineered for deterministic performance, meaning data packets arrive in consistent time frames regardless of workload. A dedicated redundancy microcontroller manages failover logic independently of the main communication circuit, ensuring failover decisions are made in <3ms without delaying data transfer.
The 1:1 hot-standby design operates by having the primary module handle all active controller-I/O communication, while the standby mirrors every data packet, configuration setting, and backplane state in real time via the sync port. The sync port uses a dedicated low-latency connection to ensure the standby is always within 1ms of the primary’s state. If the primary detects a fault (e.g., power loss, communication error, backplane disruption), the standby takes over instantly—so fast that Ovation’s control loops don’t register the switch, avoiding process upsets.
Front-panel LEDs provide at-a-glance status: solid green for “Primary Active,” blinking green for “Standby Sync’d,” amber for “Sync Lost,” and red for “Fault.” The module’s 2500V controller-to-backplane isolation protects against electrical transients (e.g., motor startups, lightning strikes) common in industrial environments, while 1500V port-to-port isolation prevents cross-talk between redundant paths.
Ruggedization features include conformal coating on the circuit board (resisting moisture, dust, and chemical exposure), vibration-resistant components (rated for 5g shock), and a wide operating temperature range (-40°C to 70°C)—ideal for turbine enclosures, refinery process areas, and outdoor control cabinets. The module’s design also includes redundant power connections from the I/O chassis backplane, ensuring a single power rail failure doesn’t disable the module.
What sets it apart is its seamless integration with Ovation’s redundant architecture. Unlike third-party interface modules, it works natively with Ovation controllers and I/O modules, leveraging the DCS’s built-in diagnostic tools for end-to-end visibility. The tool-less mounting and hot-swappable design let technicians replace modules in 30 seconds without powering down the I/O chassis, and non-volatile memory retains configuration settings, so no reconfiguration is needed after replacement. For field service engineers, it’s a workhorse that eliminates single points of failure, simplifies troubleshooting, and ensures the ultra-reliable communication critical for mission-critical Ovation DCS systems. It’s not just an interface module—it’s the backbone of fault-tolerant industrial control.
