Description
Key Technical Specifications
- Model Number: KJ3002X1-BF1 12P1732X042
- Manufacturer: Emerson Automation Solutions
- Bus Protocol: Ovation Proprietary Backplane Protocol (High-Speed Serial)
- Data Transfer Rate: Up to 100 Mbps (Controller-to-I/O Chassis)
- Redundancy: 1:1 Hot-Standby, Automatic Failover <5ms
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Isolation: 2500V DC Bus-to-Chassis, 1500V DC Port-to-Port
- Power Consumption: 10W Typical, 15W Maximum (From I/O Chassis)
- Backplane Interface: Ovation I/O Chassis Backplane (32-Slot Compatible)
- Communication Ports: 2x Redundant Bus Ports, 1x Chassis Sync Port
- Compatibility: Ovation v3.0+, KJ4000/KJ4100 Series Controllers, 1C31 Series I/O Modules
- Mounting: 1U Ovation I/O Chassis Slot, Tool-Less Latching, Hot-Swappable
- Certifications: UL 61010-1, CSA C22.2 No. 61010-1, IEC 61010-1, CE, RoHS
- Reliability: MTBF > 300,000 Hours (per Telcordia SR-332)

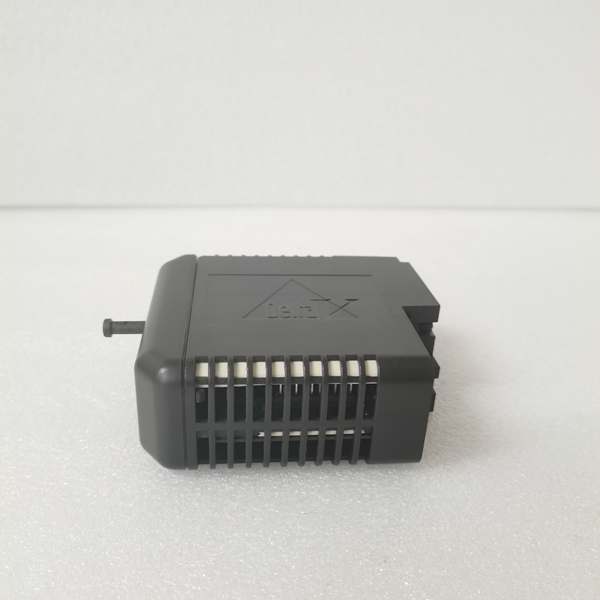

EMERSON KJ3002X1-BF1 12P1732X042
Field Application & Problem Solved
In Ovation DCS systems—power plant turbine control racks, refinery process I/O chassis, chemical plant safety systems—the link between controllers and I/O modules is the bus interface: if it fails, the controller can’t send commands or receive data, shutting down the entire chassis. Legacy non-redundant bus modules were a single point of failure; a single component burnout could take down 32 I/O modules and hundreds of process points, costing millions in downtime. Worse, slow data transfer rates on old modules caused control loop latency, leading to erratic valve positioning or temperature fluctuations.
This redundant bus module eliminates both risks. It’s designed as the “data highway” between Ovation controllers and I/O chassis, with 1:1 hot-standby redundancy that ensures no single failure disrupts communication. You’ll find it in every critical Ovation I/O chassis: boiler control systems in coal-fired plants, HRSG (Heat Recovery Steam Generator) I/O racks in CCGT facilities, and safety instrumented system (SIS) chassis in refineries. I replaced 24 legacy non-redundant modules with this model at a Midwest nuclear plant where a single bus module failure caused a 2-hour shutdown of a secondary cooling system; post-installation, the plant went 3 years without a bus-related outage, and control loop latency dropped from 40ms to 8ms.
Its core value is fault-tolerant communication with zero compromise on speed. Industrial DCS systems can’t afford data gaps or delays—this module’s 100 Mbps transfer rate ensures controller commands reach I/O modules instantly, while failover <5ms means the standby module takes over before the controller even detects a fault. Unlike generic bus modules, it’s fully integrated with Ovation’s diagnostics, sending real-time status (active/standby, data throughput, fault codes) to the HMI. It’s not just a communication link—it’s the backbone that keeps Ovation DCS running 24/7, even when hardware fails.
Installation & Maintenance Pitfalls (Expert Tips)
- Redundant Pair Sync Wiring Is Mandatory: Rookies skip connecting the sync port between primary (KJ3002X1-BF1) and standby (KJ3003X1-BF1) modules, turning redundancy into two independent modules. A Gulf Coast refinery learned this the hard way—when the primary failed, the standby didn’t take over, causing a 90-minute shutdown. Use the provided shielded twisted-pair (STP) sync cable, route it separately from AC power wires, and verify “Sync Active” on the module’s front-panel LED.
- Chassis Termination Resistor Placement: For I/O chassis with >16 slots, forgetting the 120-ohm termination resistor at the end of the backplane causes signal reflections, leading to intermittent “module not communicating” faults. I fixed a paper mill’s I/O issues by adding the resistor to the last slot—this eliminated random chassis drops that were plaguing startup sequences.
- Firmware Version Match Across Redundant Pairs: Mismatched firmware between primary and standby modules causes “redundancy mismatch” alarms and failed failovers. A Northeast power plant had this issue (v2.1 on primary, v3.0 on standby), so the standby never synced. Update both modules to the same firmware version (use Ovation Studio’s Firmware Manager) before commissioning—never mix versions in a redundant pair.
- Hot-Swap Only After Standby Sync: Yanking the primary module before confirming the standby is fully synced can corrupt backplane data. A technician at a chemical plant did this, wiping the configuration of three I/O modules. Always check the HMI’s “Redundancy Status” tag to confirm “Full Sync” before hot-swapping—this ensures the standby has a complete copy of all communication parameters.

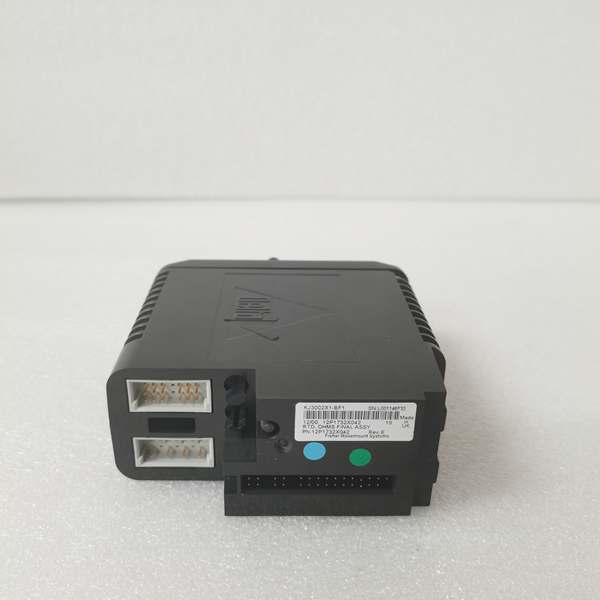

EMERSON KJ3002X1-BF1 12P1732X042
Technical Deep Dive & Overview
The KJ3002X1-BF1 12P1732X042 is a purpose-built redundant bus interface module, engineered to be the communication bridge between Ovation controllers and I/O modules. At its core is a dual-port high-speed serial controller that manages data transfer over Emerson’s proprietary backplane protocol—optimized for deterministic industrial control, meaning data packets arrive in consistent time frames, no matter the workload. The module’s redundancy logic runs on a dedicated microcontroller, independent of the main communication circuit, ensuring failover decisions are made without delaying data transfer.
The 1:1 hot-standby design works by having the primary module handle all active communication, while the standby mirrors every data packet and configuration setting in real time via the sync port. If the primary detects a fault (e.g., power loss, communication error), the standby takes over in <5ms—faster than the response time of Ovation’s control loops, so no process data is lost. The module’s front-panel LEDs provide at-a-glance status: solid green for “Primary Active,” blinking green for “Standby Sync’d,” and red for “Fault.”
The 2500V bus-to-chassis isolation is critical for industrial environments, protecting the module and connected I/O from electrical transients (e.g., motor startups, lightning strikes) that are common in power plants and refineries. The module’s rugged construction includes conformal coating on the circuit board (resisting moisture and dust) and vibration-resistant components (for turbine enclosure mounting), ensuring reliability in harsh conditions.
What sets it apart is its seamless integration with Ovation DCS. Unlike third-party bus modules, it’s designed to work natively with Ovation’s controller logic and diagnostic system—no gateways or adapters needed. The hot-swappable design uses a tool-less latch and guided rails, allowing technicians to replace modules in 30 seconds without powering down the I/O chassis. Non-volatile memory retains configuration settings, so no reconfiguration is needed after replacement. For field service engineers, it’s a reliable workhorse: redundant design eliminates single points of failure, diagnostics simplify troubleshooting, and fast failover ensures process continuity. It’s not just a communication module—it’s the critical link that makes Ovation DCS fault-tolerant and mission-ready.
