Core Function: Executes safety interlocks, ESD sequences, and complex logic for SIS in DeltaV DCS.
Product Type: Safety Logic Solver (SIL 3)
Key Specs: 24VDC 1A | 16DI/8DO | -40°C to +70°C
Note: New original, in stock, 12-month warranty.

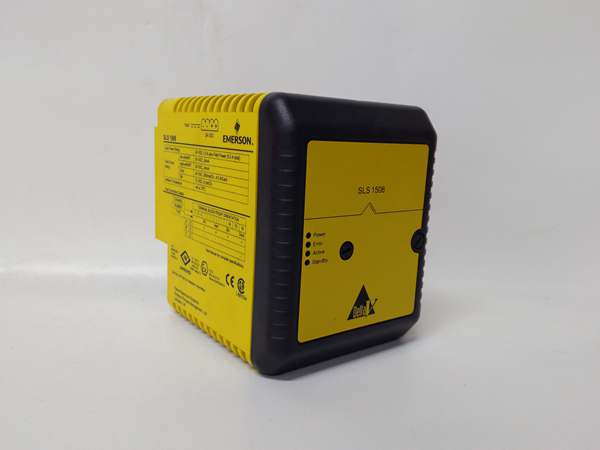

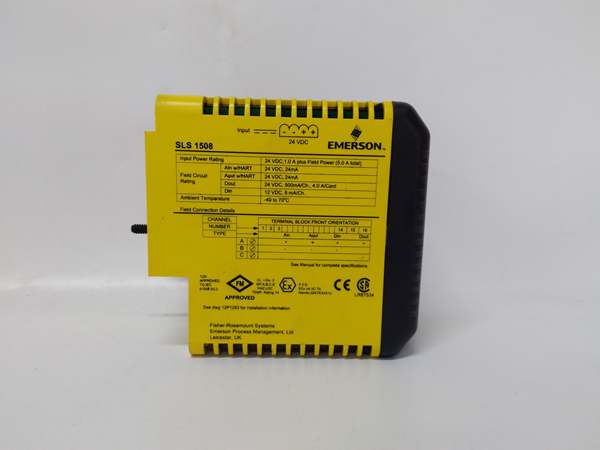

Emerson KJ2201X1-BA1
Key Technical Specifications
Part Number: (12P3162X102)
Power Supply: 24VDC ±5%, 1A (logic); 4A field power
I/O Configuration: 16 digital inputs (12VDC, 8mA/channel); 8 digital outputs (24VDC, 500mA/channel)
Safety Rating: IEC 61508 SIL 3; ATEX/IECEx Class I Div 2, T4
Communication: DeltaV native, Modbus RTU, HART
Temperature Range: -40°C to +70°C (operating)
Humidity: 5%–95% non-condensing
Shock/Vibration: 10G sine (5Hz, 11ms); ISA-S71.04 G3
Protection Class: IP20
Dimensions: 83.8 × 105.5 × 110 mm
Weight: 1.2 kg
Mounting: DIN rail or panel mount
Product Introduction
The Emerson is a SIL 3-certified smart logic solver for DeltaV DCS, designed for safety instrumented systems (SIS). It processes critical logic for emergency shutdowns, interlocks, and safety sequencing in oil/gas, chemical, and power applications.
This unit provides deterministic, high-integrity logic execution with comprehensive diagnostics. It integrates directly into DeltaV, reducing custom coding and improving system reliability. Its compact, rugged design withstands extreme industrial conditions.
QA & Testing SOP (Transparency Building)
Incoming Inspection: Verify Emerson hologram, serial number, and factory COC. Check for physical damage to casing, connectors, and DIN rail clips.
Live Testing: Power with 24VDC; connect to DeltaV. Run 24-hour burn-in with full I/O simulation; validate logic execution and diagnostic reporting.
Electrical Testing: Measure input voltage tolerance; verify output current per channel; check isolation >10MΩ between logic and field circuits.
Firmware/Config Backup: Record firmware revision (e.g., Rev S); backup logic program and I/O config; photograph DIP switch settings.
Final QC & Packaging: Label with test data; seal in anti-static bag with foam; attach signed QC tag; include static warning label.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Undersized Power Supply: Use only 24VDC ±5% with ≥1A capacity. Under-voltage causes logic faults and random resets.
❗ Incorrect I/O Wiring: DI uses 12VDC; DO uses 24VDC. Mixing voltages damages output transistors and input optocouplers.
❗ ESD Damage: Always ground the chassis and use anti-static gloves. Unprotected handling can destroy the $3,000 unit.
❗ Logic Program Mismatch: Upload the exact program from the old module. Mismatched logic causes interlock failures or spurious trips.
❗ Inadequate Cooling: Maintain 25mm clearance on all sides. Ambient >70°C triggers thermal shutdown and permanent damage.
Replacement Guide
Pre-install: Power off; LOTO; photograph wiring and DIP switches; backup existing logic.
Removal: Disconnect field and backplane cables; release DIN rail latch; pull module straight out.
Install: Seat new unit firmly; reconnect cables per photos; set DIP switches to match original.
Power-on Test: Restore power; download verified logic; perform full I/O loop test; validate all interlocks.

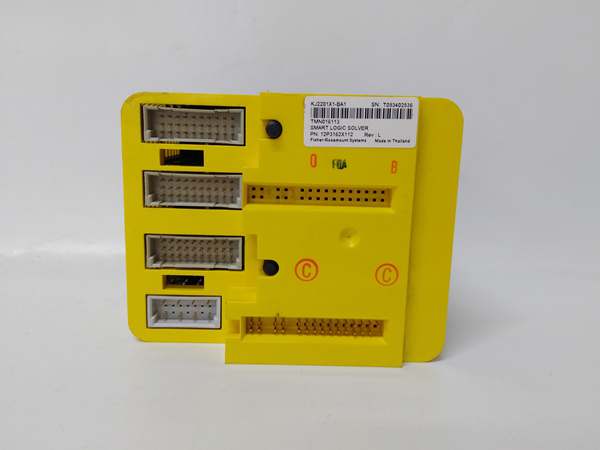

Emerson KJ2201X1-BA1
FAQ (Frequently Asked Questions)
Q: Is hot-swappable?A: No. Hot-swapping risks backplane voltage spikes and can damage both the logic solver and the DeltaV controller. Always power down the node.
Q: What is the SIL rating and certification?A: SIL 3 per IEC 61508; ATEX/IECEx Class I Div 2, T4. Suitable for high-risk safety functions.
Q: Can it operate standalone without DeltaV?A: Limited standalone use via Modbus RTU. Full safety logic and diagnostics require DeltaV DCS integration.
Q: What is the warranty coverage?A: 12 months from delivery. Covers manufacturing defects; excludes ESD damage, over-voltage, or improper programming.
Q: How often to test and calibrate?A: Annual proof test per IEC 61508. No calibration required; validate logic and I/O during testing.
Q: Can I extend the I/O capacity?A: Yes, via DeltaV I/O expansion. The base unit has 16DI/8DO; add remote I/O for more points.
Q: What happens if the firmware is outdated?A: Mismatched firmware causes communication faults, logic errors, or inability to download programs. Always match firmware revision to the system.
