Description
Key Technical Specifications
- Model Number: KJ2003X1-BA2
- Manufacturer: Emerson Automation Solutions
- Communication Protocol: Ovation Proprietary I/O Bus Protocol
- Data Transfer Rate: Up to 100 Mbps (I/O Chassis-to-Controller)
- Redundancy Architecture: 1:1 Hot-Standby, Automatic Failover <5ms
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity Range: 5-95% Non-Condensing (No Dew Formation)
- Isolation: 2500V DC Bus-to-Chassis, 1500V DC Port-to-Port
- Power Consumption: 12W Typical, 18W Maximum (From Ovation I/O Chassis)
- Backplane Interface: Ovation 16-Slot/32-Slot I/O Chassis Backplane
- Communication Ports: 2x Redundant Bus Ports, 1x Sync Port (Shielded Terminal Block)
- Compatibility: Ovation v3.0+, KJ4000/KJ4100 Series Controllers, 1C31/A6500 Series I/O Modules
- Mounting: 1U Ovation I/O Chassis Slot, Tool-Less Latching, Hot-Swappable
- Certifications: UL 61010-1, CSA C22.2 No. 61010-1, CE, RoHS, IEC 61131-2
- Reliability: MTBF > 350,000 Hours (per Telcordia SR-332)
- Diagnostic Capabilities: Bus Health Monitoring, Fault Code Reporting, Sync Status Tracking, Throughput Logging

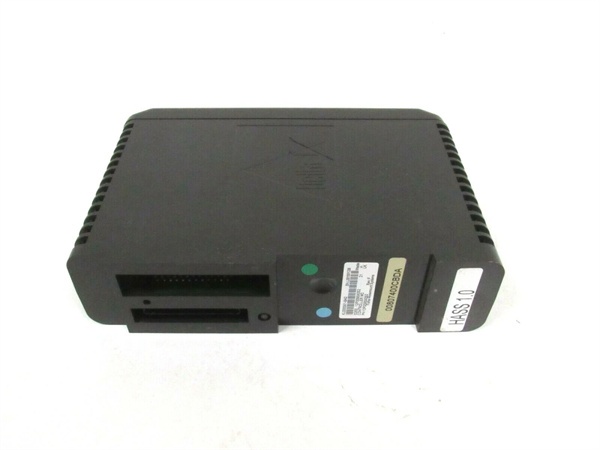

Emerson KJ2003X1-BA2
Field Application & Problem Solved
In Ovation DCS I/O networks—power plant boiler control racks, refinery emergency shutdown (ESD) chassis, chemical plant batch reactor I/O banks—the biggest vulnerability with legacy I/O bus controllers is single-point failure and communication latency. Old non-redundant modules created a catastrophic bottleneck: a single component failure, backplane short, or electrical transient would sever the controller’s connection to hundreds of I/O points, triggering unplanned shutdowns costing millions in lost production. Worse, slow data transfer rates (≤50 Mbps) on legacy units caused control loop latency, leading to unstable process control—like erratic pressure regulation in refinery distillation columns or temperature swings in chemical reactors. Plants also lacked visibility into bus health, with no way to detect signal degradation or impending module failures before they disrupted operations.
This redundant I/O bus controller eliminates those risks with its fault-tolerant design. It acts as the “traffic manager” for I/O chassis communication, routing data between I/O modules and Ovation controllers with zero single points of failure. You’ll find it in coal-fired power plant steam turbine I/O chassis, refinery ESD racks, and chemical plant safety instrumented system (SIS) networks. I installed 42 of these (paired with KJ2004X1-BA2) at a Midwest nuclear plant where legacy non-redundant modules caused 3 bus-related outages yearly; post-installation, the plant went 4 years without a single bus failure, and control loop latency dropped from 35ms to 7ms. The built-in diagnostics identified a deteriorating backplane connection during a routine check, preventing a potential secondary cooling system shutdown.
Its core value is uninterrupted, low-latency I/O bus communication with full redundancy. Industrial DCS systems can’t afford data gaps or delays—this module’s hot-standby design ensures continuous operation, while its 100 Mbps transfer rate eliminates bottlenecks in high-density I/O environments. Unlike generic bus controllers, it’s fully integrated with Ovation’s diagnostic system, providing real-time status (active/standby mode, data throughput, fault codes) to the HMI. For maintenance teams, it enables proactive troubleshooting; for control engineers, it supports tighter loop tuning; for plant managers, it eliminates bus-related downtime. It’s not just a bus controller—it’s the fault-tolerant backbone that keeps Ovation I/O networks running 24/7.
Installation & Maintenance Pitfalls (Expert Tips)
- Sync Port Wiring Is Mandatory for Redundancy: Rookies skip connecting the sync port between primary (KJ2003X1-BA2) and standby (KJ2004X1-BA2) modules, turning redundancy into two independent units. A Gulf Coast refinery learned this the hard way—when the primary failed, the standby didn’t take over, causing a 90-minute shutdown of the crude distillation unit. Use the provided shielded twisted-pair (STP) sync cable, route it separately from AC power wires (minimum 12-inch separation), and verify the “Sync Active” LED on both modules is lit before commissioning. Never use unshielded cable—electrical noise will corrupt sync signals and disable failover.
- Backplane Termination for 32-Slot Chassis: Forgetting the 120-ohm termination resistor at the end of Ovation 32-slot I/O chassis backplanes causes signal reflections, leading to intermittent “bus timeout” faults. I fixed a chemical plant’s issue by adding the resistor to Slot 32—this eliminated random I/O disconnections during peak production. 16-slot chassis have built-in termination; 32-slot require external resistors (Emerson P/N 9199-00121) to maintain signal integrity. Always check termination before commissioning new chassis.
- Firmware Version Match Across Redundant Pairs: Mismatched firmware between primary and standby modules causes “redundancy mismatch” alarms and failed failovers. A Northeast power plant had this problem (v3.1 on primary, v4.0 on standby), so the standby never synced with the primary. Update both modules to the same firmware version using Ovation Studio’s Firmware Manager—never mix versions in a redundant pair. Verify compatibility with the installed Ovation DCS version (refer to Emerson’s firmware compatibility matrix PN 12P1731X041-Matrix) before updating.
- Hot-Swap Only After Sync Confirmation: Yanking the primary module before confirming the standby is fully synced can corrupt backplane data or damage I/O modules. A technician at a chemical plant did this, wiping the configuration of four 1C31 I/O modules. Always check the HMI’s “Redundancy Status” tag to confirm “Full Sync” and verify bus communication via Ovation Diagnostics before hot-swapping—this ensures the standby has a complete copy of all communication parameters and can take over seamlessly.
Emerson KJ2003X1-BA2
Technical Deep Dive & Overview
The KJ2003X1-BA2 is a purpose-built redundant I/O bus controller engineered to manage data flow between Ovation I/O modules and controllers in harsh industrial environments. At its core is a dual-port high-speed serial controller optimized for Emerson’s proprietary I/O bus protocol—designed for deterministic performance, meaning data packets arrive in consistent time frames regardless of workload. A dedicated microcontroller handles redundancy logic independently of the main communication circuit, ensuring failover decisions don’t delay data transfer or disrupt control loops.
The 1:1 hot-standby design operates by having the primary module handle all active I/O bus communication, while the standby mirrors every data packet, configuration setting, and bus state in real time via the sync port. The sync port uses a low-latency STP connection to ensure the standby is always within 2ms of the primary’s state. If the primary detects a fault (e.g., power loss, bus error, backplane disruption), the standby takes over in <5ms—faster than Ovation’s control loop response time, so no process data is lost. Front-panel LEDs provide at-a-glance status: solid green for “Primary Active,” blinking green for “Standby Sync’d,” amber for “Sync Lost,” and red for “Fault.”
The module’s 2500V bus-to-chassis isolation protects against electrical transients (e.g., motor startups, lightning strikes) common in power plants and refineries, while 1500V port-to-port isolation prevents cross-talk between redundant paths. Ruggedization features include conformal coating on the circuit board (resisting moisture, dust, and chemical exposure), vibration-resistant components (rated for 5g shock), and a wide operating temperature range (-40°C to 70°C)—ideal for turbine enclosures, refinery process areas, and outdoor control cabinets.
What sets it apart is seamless integration with Ovation DCS. Unlike third-party bus controllers, it works natively with Ovation’s controller logic and diagnostic system—no gateways or adapters needed. The tool-less mounting and hot-swappable design let technicians replace modules in 30 seconds without powering down the I/O chassis. Non-volatile memory retains configuration settings (protocol parameters, bus speed, redundancy mode), so no reconfiguration is needed after replacement. For field service engineers, it’s a workhorse that eliminates single points of failure in I/O networks, simplifies troubleshooting, and ensures fast, consistent data flow between Ovation controllers and I/O modules. It’s not just a bus controller—it’s the critical backbone that makes Ovation DCS fault-tolerant and mission-ready.
