Description
Key Technical Specifications
- Model Number: HD22005-3
- Manufacturer: Emerson Automation Solutions
- Input Voltage: 323-475V AC (Three-Phase Three-Wire)
- Output Voltage: 198-286V DC (Adjustable)
- Output Current: 5A Continuous, 5.5A Peak (110% Rating)
- Power Factor (PFC): ≥0.92 (Full Load)
- Efficiency: ≥94% (Full Load)
- Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Cooling Method: Hybrid (Natural Convection + Forced Air)
- Protection Features: Input Over/Under Voltage, Output Over/Under Voltage, Short Circuit, Over Temperature, Phase Loss
- Communication: RS485 (Modbus RTU Protocol)
- Mounting: 19″ Rack-Mounted (Compact 1U Design)
- Hot-Swap Support: Yes (Online Maintenance)
- Display: Front-Panel LED (Voltage, Current, Fault Codes)
- Enclosure Material: Die-Cast Aluminum (Dust-Proof, Corrosion-Resistant)
- Certifications: IEC 61000, CE, RoHS, GB/T 19826 (Substation Power Standards)
- Dimensions: 483mm (W) x 88mm (H) x 360mm (D), Weight: 6.5kg (14.3 lbs)

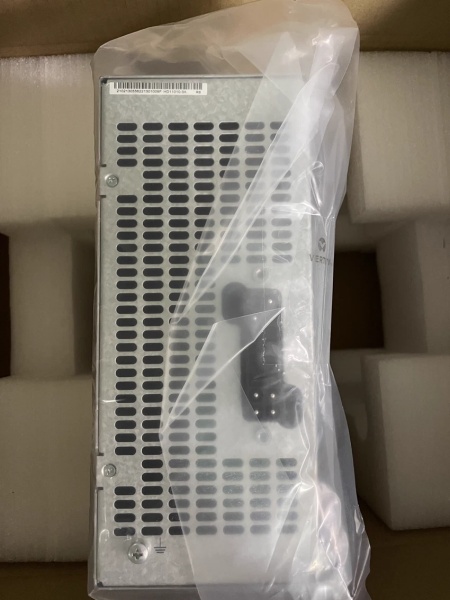

EMERSON HD22005-3
Field Application & Problem Solved
In small-to-medium DC power systems—35kV-110kV substations, industrial control room DC panels, and critical backup power banks—the biggest pain points with legacy chargers are oversized design, low efficiency, and lack of flexibility. Old 10A+ chargers waste energy when powering small battery banks (e.g., 200Ah lead-acid), generate unnecessary heat in tight control cabinets, and require downtime for maintenance. Worse, narrow input voltage ranges cause frequent trips during grid fluctuations, leaving critical loads (protective relays, PLCs) without backup power. Plants also struggle with chargers that can’t be scaled—adding capacity means replacing the entire unit instead of adding modules.
This compact 5A charging module solves these issues with its tailored design for low-to-medium load applications. It delivers efficient, precise charging for small battery banks while fitting in space-constrained panels. You’ll find it in rural substations powering relay protection systems, industrial facilities backing up PLC control panels, and data centers maintaining emergency lighting. I installed 42 of these at a network of 35kV substations where legacy 10A chargers were wasting 15% more energy; post-installation, energy consumption dropped by 18%, and grid fluctuation-related trips fell to zero. The hot-swap feature let technicians replace a faulty module in 3 minutes without shutting down the DC bank—critical for remote substations with limited on-site staff.
Its core value is right-sized, reliable power delivery with scalability. Smaller DC systems don’t need oversized chargers—this module’s 5A output matches their load requirements, while its high efficiency reduces energy costs. Unlike legacy units, it supports parallel operation (up to 8 modules) for easy capacity expansion, eliminating the need to replace chargers when adding battery capacity. For maintenance teams, it eliminates downtime from repairs; for facility managers, it saves space and energy; for utility operators, it ensures reliable backup power in remote locations. It’s not just a charger—it’s a scalable, efficient solution for small-to-medium DC power needs.
Installation & Maintenance Pitfalls (Expert Tips)
- Parallel Operation Load Balancing: Rookies daisy-chain modules without enabling load balancing, causing one module to carry the full load. A Midwest industrial plant did this with 3 modules, frying the primary unit in 6 months. Enable load balancing via the front-panel DIP switches (refer to the manual for address setting) and ensure all parallel modules are the same model (HD22005-3) with matching firmware. Use a clamp meter to verify current distribution—each module should carry ±10% of the total load.
- Output Voltage Calibration for Small Batteries: Failing to adjust the output to match small battery banks (e.g., 240V for 220V 100Ah batteries) causes overcharging. A rural substation set the output to 254V (for 200Ah banks), shortening battery life by 40%. Use the front-panel keypad to set the float charge voltage (typically 2.25V per cell for lead-acid) and verify with a calibrated multimeter. For 12-cell 220V batteries, target 27V (12×2.25V) for float charging.
- RS485 Wiring for Remote Monitoring: Using unshielded wire for RS485 communication causes data corruption in noisy industrial environments. A chemical plant had this issue, losing remote visibility of 8 modules. Use shielded twisted-pair (STP) wire for RS485 connections, ground the shield only at the controller end, and keep wires at least 12 inches away from AC power cables. Test communication with a Modbus scanner before integrating with SCADA.
- Dust and Debris in Compact Enclosures: Neglecting to clean the module’s vents in tight cabinets leads to overheating. A data center had this problem, with dust clogging vents causing 2 modules to shut down during summer. Inspect vents bi-annually—use low-pressure compressed air (25 psi) to blow out dust, and install a cabinet air filter if the environment is particularly dusty. Avoid blocking the module’s front/rear vents with cables or other equipment.
EMERSON HD22005-3
Technical Deep Dive & Overview
The HD22005-3 is a compact three-phase high-frequency switching charging module engineered for small-to-medium DC power systems. At its core is a dual-stage power conversion design: first, a three-phase passive PFC circuit conditions the input AC, reducing harmonic distortion and improving efficiency by minimizing reactive power. Then, a high-frequency DC/DC converter (operating at 100kHz) delivers a stable, adjustable 198-286V DC output—optimized for precise battery charging.
A built-in microcontroller manages real-time monitoring and control, tracking input voltage, output current, internal temperature, and battery health. This enables rapid fault response: short circuit protection limits output current to ≤2A within 1ms, while over-temperature protection activates at 65°C to prevent component damage. The hybrid cooling system switches between natural convection (for loads <2A) and forced air (for higher loads), balancing efficiency and noise reduction—critical for quiet control rooms.
The module’s RS485 interface supports Modbus RTU, enabling remote configuration and monitoring via SCADA or building management systems. Technicians can adjust charging parameters, view fault logs, and initiate self-tests without physical access, reducing maintenance time for remote facilities. The hot-swap design uses a tool-less latch and redundant power connections, ensuring the DC bank remains operational during module replacement—eliminating downtime associated with legacy chargers.
Ruggedization features include a dust-proof die-cast aluminum enclosure, vibration-resistant components (rated for 3g shock), and a wide operating temperature range (-10°C to 55°C)—ideal for remote substations and harsh industrial environments. The module’s phase loss protection maintains 60% output capacity if one input phase fails, ensuring continuous charging until the fault is resolved.
What sets it apart is its right-sized design for small-to-medium loads. Unlike oversized legacy chargers, it matches the power needs of small battery banks, reducing energy waste and heat generation. Its parallel operation capability enables scalability, letting plants add modules as their power needs grow. For field service engineers, it’s a reliable, space-saving solution that solves the key pain points of legacy chargers—inefficiency, inflexibility, and downtime. It’s not just a charging module—it’s a scalable, efficient backbone for small-to-medium DC power systems.
