Description
Key Technical Specifications
- Model Number: Emerson FloBoss S600+
- Manufacturer: Emerson
- Protocol Support: Modbus RTU/TCP, HART, Ethernet TCP/IP; dual HART master capability
- Supported Meter Types: Coriolis, ultrasonic, turbine, positive displacement, orifice, annubar, V-Cone® flow meters
- Stream Capacity: Up to 10 liquid/gas flow meter streams and 6 dual flow pulse streams
- Analog Input Resolution: 24-bit with ±0.005% full scale (FS) accuracy at 23°C
- HART Capacity: 12 HART channels, supports up to 50 transmitters
- Operating Temperature: –10°C to +60°C
- Data Storage: Tri-reg memory for redundant cumulative total storage; 8GB internal memory (expandable via SD card)
- Power Supply: 100–240 VAC ±10% or 24 VDC ±20%
- Physical Dimensions: 482.6 mm (W) × 177.8 mm (H) × 304.8 mm (D) (19-inch rack-compatible)
- Certifications: MID-approved for liquid and gas applications; ATEX, IECEx explosion-proof rated
EMERSON FLOBOSS S600+
Field Application & Problem Solved
In oil, gas, and petrochemical sectors, the biggest challenge in fluid transfer is reconciling precise measurement with compliance—especially for custody transfer, where even minor calculation errors lead to massive financial losses or regulatory penalties. Legacy systems often struggle with multi-stream monitoring, forcing operators to use multiple standalone meters that complicate data aggregation and increase error risks. The FloBoss S600+ solves this by centralizing multi-fluid, multi-point metering in a single unit.
You will typically find this module in pipeline terminals, refineries, and bulk storage facilities handling crude oil, natural gas, and refined hydrocarbons. It’s also a staple in international projects where adherence to varying regional standards (like AGA for gas, API for liquids) is mandatory. For example, in a cross-border natural gas pipeline, it seamlessly adapts to both AGA and GOST standards without reconfiguration, eliminating the need for custom hardware or software tweaks.
Its core value lies in balancing accuracy and operational efficiency. The 64-bit floating-point calculations cut metering uncertainty significantly—critical for fiscal applications where every fraction of a percent matters. By offloading complex flow corrections and data logging from upstream SCADA or DCS systems, it prevents network congestion and ensures real-time data availability for audits. The tri-reg memory also safeguards against data loss during power fluctuations, which is non-negotiable for maintaining unbroken fiscal records.
Installation & Maintenance Pitfalls (Expert Tips)
- Ignoring HART Network Termination: A common rookie mistake is skipping proper termination on HART multi-drop networks. The S600+ supports up to 50 transmitters, but unterminated HART lines cause signal reflections that lead to intermittent data drops or incorrect transmitter readings. Always install 250-ohm terminators at the end of HART loops to stabilize communication.
- Overlooking Tri-Reg Memory Validation: While the tri-reg memory stores cumulative totals in three locations for redundancy, technicians often forget to verify all three memory banks during routine checks. Corruption in one bank can go unnoticed until audits, so include cross-referencing of all three memory locations in monthly maintenance to ensure data integrity.
- Mismatched Measurement Standard Configuration: The unit supports multiple global standards, but misaligning the software setting with the application’s required standard (e.g., using API instead of ASTM for refined liquids) leads to non-compliant fiscal reports. After configuration, test with calibration fluids to confirm calculations match the specified standard before putting it into service.
- Poor Ethernet Port Protection: The embedded web server enables remote access, but leaving the Ethernet port unprotected by passwords or network firewalls exposes the unit to unauthorized tampering. Always set unique user credentials and restrict web server access to secure plant networks—never connect it directly to public internet.
EMERSON FLOBOSS S600+
Technical Deep Dive & Overview
The Emerson FloBoss S600+ is a modular, intelligent panel-mount flow computer built on a distributed processing architecture to handle complex hydrocarbon metering tasks. Its main CPU integrates a dedicated hardware floating-point processor, while each add-on I/O board features local processing capabilities. This design offloads tasks like unit conversion, background diagnostics, and PID loop operation from the main CPU, ensuring consistent performance even when monitoring the maximum 10 streams.
The unit functions as a central hub for flow measurement by integrating inputs from various flow meters, pressure transducers, and temperature sensors. It uses 64-bit double-precision calculations to apply corrections for pressure, temperature, and fluid composition—aligning with global standards like AGA, API, and ISO. The tri-reg memory system stores cumulative flow totals in three separate locations, which automatically cross-validate to prevent data corruption from power spikes or hardware glitches.

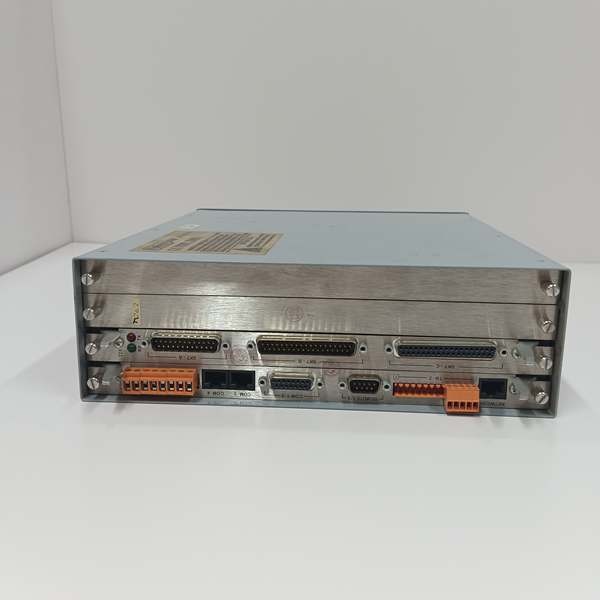

For connectivity, it uses a combination of Ethernet, RS-232, and RS-422/485 serial ports, plus HART channels, to integrate with SCADA systems, DCS networks, and intelligent meters. The embedded web server allows technicians to remotely configure settings, run diagnostics, and retrieve reports without physical access—critical for installations in hazardous or hard-to-reach areas. Whether used as a standalone unit or part of Emerson’s PlantWeb automation suite, it streamlines flow measurement workflows while maintaining the precision required for fiscal and regulatory compliance.
