Description
Product Core Brief
- Model: EMERSON A6110
- Brand: EMERSON (AMS 6500 Series)
- Series: AMS 6500 Mechanical Health Monitoring
- Core Function: Monitors shaft relative vibration and triggers protective relays for critical rotating machinery.
- Product Type: Axis Relative Vibration Monitor / API 670 Module
- Key Specs: Dual Channel 3U | Eddy Current Input | 50-2000 Hz Bandwidth
- Condition: New Original / New Surplus

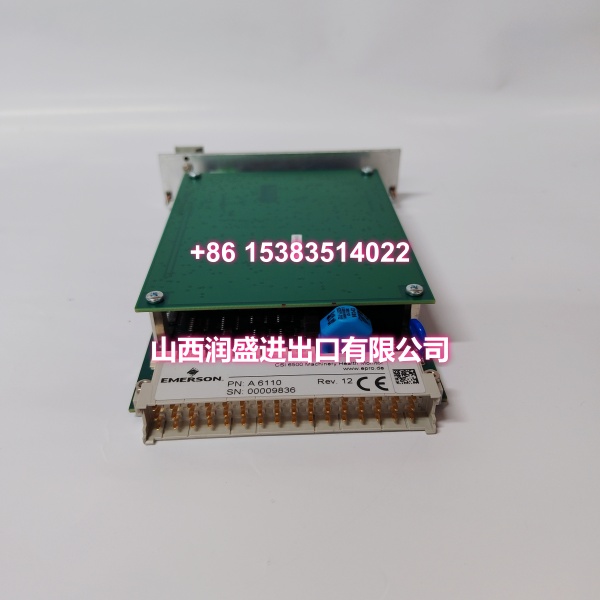

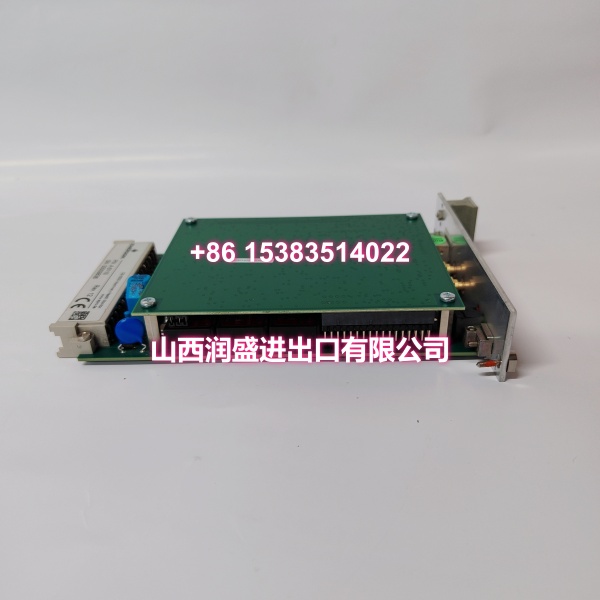

EMERSON A6110
Product Introduction
EMERSON serves as the primary vibration protection layer for critical turbines and compressors. This dual-channel monitor continuously compares shaft relative vibration against setpoints to drive alarms and trip relays.
The replacement module features a compact 3U form factor that cuts rack space by 50% versus legacy 6U cards. It supports hot-swapping and self-diagnostics to ensure zero downtime during maintenance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 2 Independent or Combined |
| Form Factor | 3U Single Slot |
| Sensor Input | Eddy Current / Differential |
| Frequency Range | 50-2000 Hz (Adjustable) |
| Output Signals | 0/4-20mA, 0-10V, Buffered |
| Compliance | API 670 Standard |
| Alarm Delay | 0-5s (0-36s with A6740) |
| Power Isolation | Fully Isolated Sensor Supply |
| Operating Temp | -40°C to +70°C |
| Mounting | AMS 6500 Backplane |
Quality Control Process
Every vibration monitor undergoes rigorous functional validation. We inspect the 3U connector pins for bending or oxidation before testing. Next, we inject simulated eddy current signals to verify alarm setpoint accuracy and relay trip timing. Output linearity is checked across the full 0-10V and 4-20mA ranges using a precision calibrator. Self-test diagnostics are triggered to confirm hardware health monitoring. Finally, the industrial automation unit is sealed in anti-static packaging.
Replacement Pitfall Guide
❗ Verify Sensor Type: Ensure your field probes are compatible eddy current sensors. Wrong sensor impedance causes false vibration readings.
❗ Check Alarm Delays: The base module offers 0-5s delay. If you need up to 36s, you MUST install the A6740 relay card.
❗ Don’t Skip Self-Test: Run the built-in hardware self-test after installation. It validates sensor cabling and internal temperature.
❗ Hot-Swap Carefully: While hot-swappable, ensure the backplane is stable. Sudden bus glitches during insertion can corrupt configuration.
Keep these in mind and you’ll cut 90% of rework time.
EMERSON A6110
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| (Rev B+) | Direct | Drop-in replacement with updated firmware | |
| Legacy 6U 4-Ch | Needs Adaptation | Requires backplane adapter and config migration |
- Benchmark: Alarm response time typically < 100ms from setpoint breach.
- Benchmark: Input bandwidth covers 50-2000 Hz for comprehensive fault detection.
Need the matching A6740 relay card or eddy current probes? I can pull up specs for those as well.
