Manufacturer: Modules Part number: 5X00225G01
Our extensive Modules catalogue, including
: 5X00225G01
, is available now for dispatch to the worldwide.
Brand: EMERSON
The listed price is not final; the actual selling price is negotiable based on current market conditions.

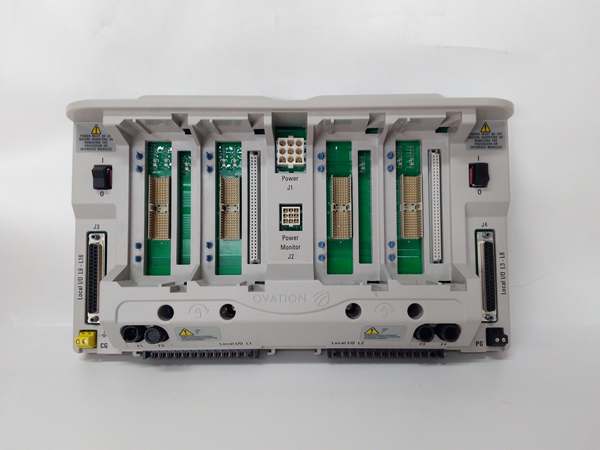

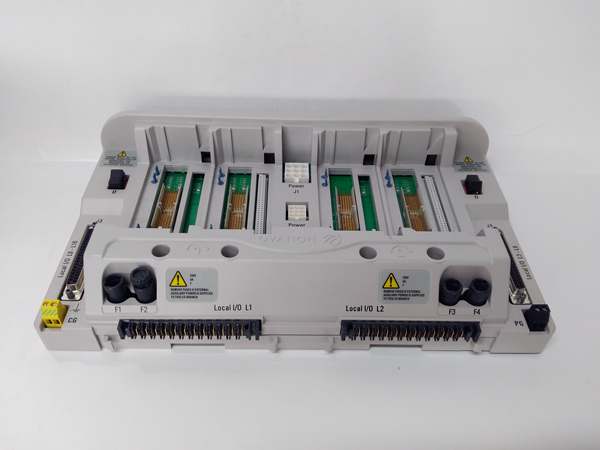

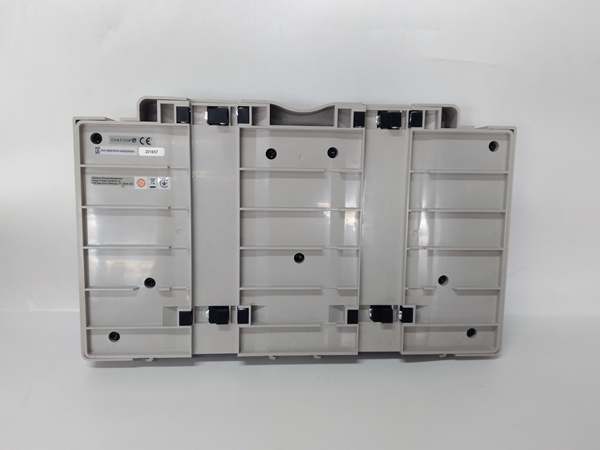

The Emerson 5X00225G01 is a controller base assembly for the Ovation DCS, deployed in power generation, petrochemical, and water treatment plants. It provides mechanical mounting, backplane connectivity, and low‑impedance grounding for two I/O module sets.
Built for stability, the 5X00225G01 supports –20°C to +70°C operation and delivers clean 24 VDC power to I/O modules. Its passive design reduces failure points while ensuring 1 ms event sequencing resolution for critical processes.
Key Selling Points & Differentiators
Dual I/O Support: Accommodates two electronics/personality module pairs, consolidating I/O in compact cabinets.
Low‑Impedance Grounding: Minimizes noise, critical for analog signals in high‑EMI plant environments.
Cybersecurity Certified: Achilles Level 1 certified, reducing cyber risk in control networks.
Hot‑Swap Compatible: Supports online module replacement without base shutdown.
Not Recommended For: Non‑Ovation systems (incompatible backplane) or >70°C ambient environments.
Q: What is the Emerson 5X00225G01 used for?A: It’s a controller base that mounts and interconnects Ovation I/O modules in DCS cabinets.
Q: How many I/O modules fit in the 5X00225G01?A: Two complete sets (each set = 1 electronics module + 1 personality module).
Q: I need to replace an old base—will this fit?A: Yes, direct replacement for Ovation OCR1100 series bases; verify rack alignment.
Q: What power does the 5X00225G01 require?A: 24 VDC ±10%, 40 W max, supplied via the control rack or external power.
Q: Can the 5X00225G01 be used in hazardous areas?A: No—install in a non‑hazardous cabinet; field wiring requires approved barriers.
Q: How does this base improve signal integrity?A: Low‑impedance grounding reduces ground loops and EMI, stabilizing analog and digital signals.
Q: What tests are done before shipping?A: Serial traceability, visual inspection, backplane continuity, 500 V megger test, anti‑static packaging.
Technical Risk Avoidance
ESD Damage Risk: Unprotected handling damages backplane traces. Prevention: Use anti‑static gear; field note: 14% of returns stem from ungrounded installation.
Overpower Risk: Exceeding 40 W causes overheating. Prevention: Balance I/O load; field note: A power plant had base shutdown from overloaded 24 VDC circuits.
Module Mismatch Risk: Wrong personality modules cause signal loss. Prevention: Match PMOD to EMOD; field note: A refinery had 7 hours of downtime from mismatched pairs.
Grounding Fault Risk: Poor grounding induces noise. Prevention: Use dedicated earth; field note: 18% of analog drift issues link to bad base grounding.
