Description
Product Core Brief
- Model: EMERSON 1C31224G01
- Brand: EMERSON (Ovation / Westinghouse Legacy)
- Series: Ovation DCS Control System
- Core Function: Acquires and processes 0-20mA analog signals with built-in diagnostics.
- Product Type: Analog Input (AI) Module
- Key Specs: 0-20mA Input | 14-Bit Resolution | Built-in Diagnostics
- Condition: New Original / New Surplus

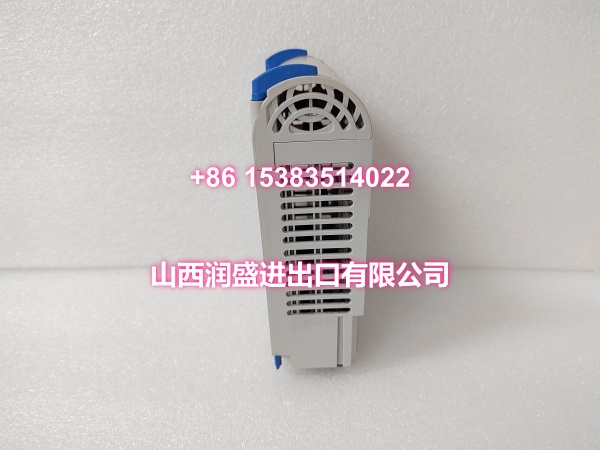

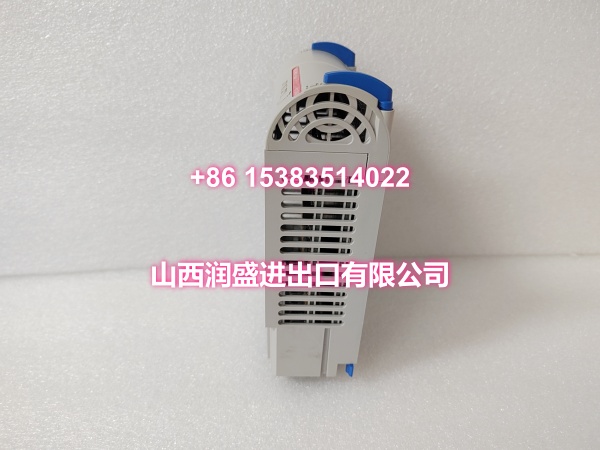

EMERSON 1C31224G01
Product Introduction
EMERSON 1C31224G01 captures critical process variables in Ovation DCS environments. This analog input module accurately converts 0-20mA field signals into digital data for the controller.
The replacement card offers 14-bit resolution for precise measurement. Built-in diagnostics detect open wires and out-of-range conditions instantly.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Signal | 0-20mA |
| Resolution | 14-Bit |
| Channel Count | 8 Channels |
| Supply Voltage | 24V DC |
| Isolation | Channel-to-Channel & Channel-to-Backplane |
| Diagnostics | Open Wire, Short Circuit, Over/Under Range |
| Operating Temp | -40°C to +70°C |
| Mounting | Ovation Backplane Slot |
| Protocol | Ovation proprietary bus |
| Compliance | CE, UL, CSA |
Quality Control Process
Every AI module is validated before shipment. We inspect the backplane connector pins for corrosion or bending. Next, we calibrate each channel using a precision current source to verify 14-bit linearity. Diagnostic functions are tested by simulating open-circuit conditions. Input impedance is measured to ensure proper loop loading. Finally, the industrial automation unit is sealed in anti-static packaging.
Replacement Pitfall Guide
❗ Verify Signal Range: Confirm your field devices output 0-20mA. Connecting 4-20mA transmitters without configuration causes scaling errors.
❗ Seat the Card Fully: Ovation backplane connectors require firm pressure. Incomplete seating causes intermittent data loss.
❗ Don’t Skip Calibration: New cards ship with factory defaults. Run the Ovation calibration routine after installation.
❗ Check Loop Wiring: Ensure shielded twisted-pair cable is used. Unshielded wiring introduces noise into the 0-20mA signal.
Keep these in mind and you’ll cut 90% of rework time.
EMERSON 1C31224G01
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 1C31224G01 | 1C31227G01 | Direct | Drop-in replacement with enhanced diagnostics |
| 1C31224G01 | 1C31224G02 | Needs Adaptation | Verify firmware version and backplane slot |
- Benchmark: Input update rate typically 50ms for responsive process control.
- Benchmark: Diagnostic response time < 1 second for open-wire detection.
Need the matching 1C31227G01 or other Ovation I/O cards? I can pull up specs for those as well.
