4–20 mA, 0–10 V DC, RTD (Pt100/Pt1000), Thermocouple (J/K/T/E/R/S/B)
Resolution
16-bit A/D conversion
Accuracy
±0.1% of span (25°C)
Isolation
Channel-to-channel & channel-to-backplane (1500 V AC)
Communication
HART protocol support, Ovation backplane bus
Update Rate
100 ms to 10 s (configurable)
Power
24 V DC (backplane-fed), 5 W max
Operating Temperature
–40°C to +70°C
Humidity
0–95% RH (non-condensing)
Dimensions
144 × 60 × 30 mm
Weight
0.3 kg
Certification
CE, IEC 61000-4-5 (surge protection)
Product Introduction
The Emerson 1C31224G01 is an 8-channel analog input module built for the Ovation DCS, deployed in power generation, chemical processing, and water treatment plants. It acquires precision data from field sensors—pressure, temperature, flow—converting analog signals to digital for the controller.
Engineered for harsh environments, the 1C31224G01 delivers 16-bit resolution and ±0.1% accuracy, supporting HART for bidirectional communication with smart transmitters. Its isolated design minimizes crosstalk, while the –40°C to +70°C range ensures reliability in extreme conditions.
Key Selling Points & Differentiators
Quantified Precision: 16-bit resolution with ±0.1% full-scale accuracy, critical for tight process control.
HART Compatibility: Enables diagnostic and configuration data exchange with HART-enabled field devices.
Isolation Protection: 1500 V AC channel-to-channel isolation reduces surge damage risk and crosstalk.
Harsh Environment Rated: Operates reliably from –40°C to +70°C, suitable for unconditioned cabinet spaces.
Hot-Swap Capable: Supports online replacement without system shutdown, cutting maintenance downtime.
Not Recommended For: Low-level microvolt signals (use dedicated high-sensitivity modules) or non-Ovation systems (incompatible bus protocol).
Tested & Certified: Surge protection tested to IEC 61000-4-5; 24-hour burn-in prior to shipment.

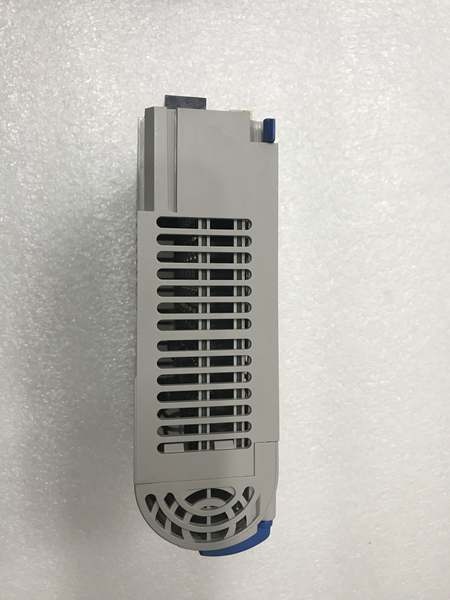

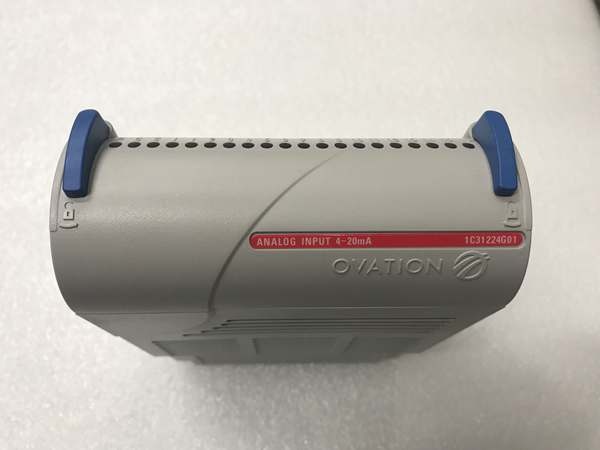

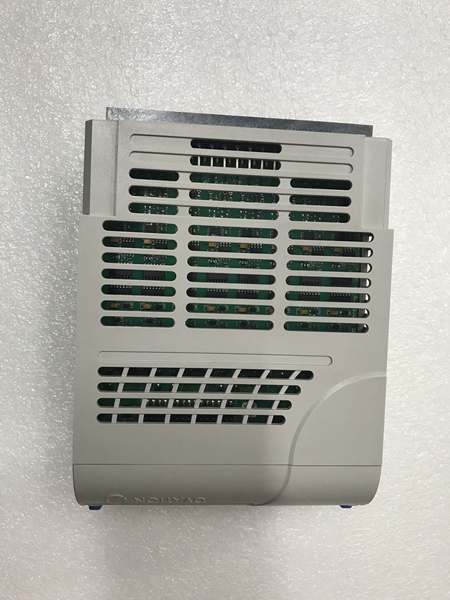

1C31224G01
FAQ
Q: What signal types does the Emerson 1C31224G01 support?A: It accepts 4–20 mA, 0–10 V DC, RTD (Pt100/Pt1000), and thermocouple (J/K/T/E/R/S/B) inputs.
Q: Is the 1C31224G01 isolated?A: Yes—each channel is isolated from others and the backplane (1500 V AC), preventing crosstalk and surge propagation.
Q: I need to integrate smart transmitters—does this unit support HART?A: Yes, the module natively supports HART for bidirectional communication with HART-enabled field devices.
Q: What is the warranty for the 1C31224G01?A: 3-year warranty against manufacturing defects; excludes ESD damage, overvoltage, or improper installation.
Q: How does this module compare to 14-bit alternatives?A: The 16-bit resolution provides 4× finer granularity, improving stability in closed-loop control; 14-bit modules suit less critical monitoring points.
Q: Can the 1C31224G01 be used in outdoor cabinets?A: It handles –40°C to +70°C, but requires a sealed, climate-protected enclosure to avoid condensation and direct sunlight.
Q: What tests are performed before shipping?A: Incoming serial traceability, visual inspection, continuity check, HART handshake test, 24-hour load simulation, and anti-static packaging.
Technical Risk Avoidance
ESD Damage Risk: Unprotected handling damages input circuits. Prevention: Use anti-static gloves/mats; field note: 18% of returns stem from ungrounded installation.
Signal Overload Risk: Exceeding ±10 V or 24 mA burns input channels. Prevention: Verify transmitter output ranges before wiring; field note: A 2025 chemical plant site lost 3 channels due to misconfigured transmitters.
HART Conflict Risk: Multiple HART devices on one channel cause data collisions. Prevention: Assign unique HART addresses; field note: A refinery experienced intermittent data drops from duplicate addressing.
Firmware Mismatch Risk: Outdated DCS firmware causes communication failures. Prevention: Match module firmware to Ovation revision; field note: A power plant upgrade incurred 4 hours of downtime due to unvalidated firmware.
Quality Transparency SOP
Incoming Verification: Serial number traceability, anti-counterfeit check, visual inspection for damage, accessory kit validation.
Live Bench Test: Dedicated Ovation test rack, power-on self-check, HART handshake, full-scale signal simulation, 24-hour load test, signed test report.
Electrical Tests: 500 V megger insulation resistance (>10 MΩ), ground continuity verification, surge test (±6 kV contact discharge).
Firmware Verification: Record firmware version, backup DIP/jumper configurations.
Final QC & Packaging: QC sign-off, anti-static seal, shock-absorbent foam, “QC Passed” label; test photos/videos available on request.
