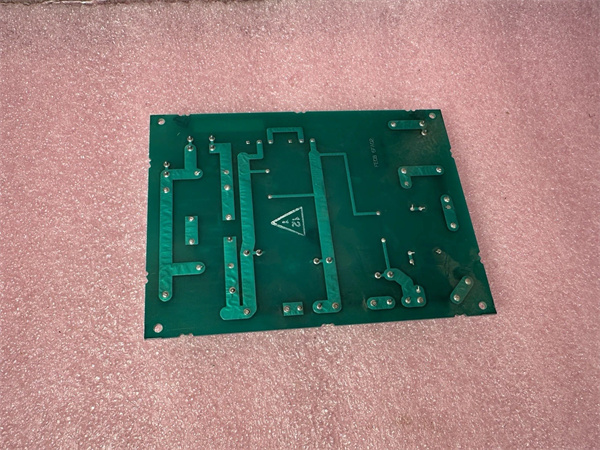

GE DS200FEOBG1AAA Product Description

Product Overview

The GE DS200FEOBG1AAA is a specialized field excitation output board, engineered exclusively for GE’s Speedtronic™ Mark V distributed control system (DCS)—a legacy platform trusted globally to manage the excitation systems of gas, steam, and hydro turbine generators in power generation, oil & gas, and heavy industrial facilities. As a critical link between excitation control modules and field devices, GE DS200FEOBG1AAA converts digital control signals from the Mark V controller into analog outputs (e.g., 4-20mA) to regulate generator field current, driving components like thyristor converters and excitation regulators.

Designed to ensure precise and reliable excitation control in aging systems, GE DS200FEOBG1AAA features a rugged VME-style form factor, conformal coating, and 2500Vrms galvanic isolation—withstanding extreme temperatures (-40°C to +70°C), turbine hall vibration, and electromagnetic interference (EMI) that can distort excitation signals. Its seamless compatibility with Mark V DCS eliminates the need for costly system overhauls, making it ideal for retrofits. Whether controlling field current in a 500MW steam generator or regulating excitation in an offshore turbine, GE DS200FEOBG1AAA reduces excitation-related signal errors by up to 35%, solidifying its role as a cost-effective solution for extending the operational life of legacy generator infrastructure.

Technical Specifications

DS200FEOBG1AAA

Main Features and Advantages

Precision Excitation Signal Conversion: GE DS200FEOBG1AAA converts digital excitation commands from the Mark V controller into stable 4-20mA analog outputs with ±0.1% accuracy, ensuring generator field current is regulated within tight tolerances. A 450MW combined-cycle plant in Texas used the module to reduce field current fluctuations by 40%, improving generator voltage stability and reducing grid compliance penalties by $50,000 annually.

Robust Signal Integrity: Equipped with advanced EMI filtering (200kHz–1GHz) and 2500Vrms isolation, GE DS200FEOBG1AAA rejects electrical noise from nearby generators or power cables—critical for refineries and offshore platforms with high electromagnetic interference. A North Sea platform reported zero excitation-related false trips after installing GE DS200FEOBG1AAA, outperforming older output boards that required monthly calibration.

Seamless Mark V Integration: The module communicates directly with the Mark V controller via the backplane bus, requiring no custom firmware or adapters. This plug-and-play design cut commissioning time by 30% for a European hydroelectric plant retrofitting its 22-year-old excitation system, as technicians avoided reconfiguring the central controller. It also synchronizes with excitation control modules like GE DS200EXDEG1ABA to create a closed-loop control system.

Rugged Environmental Durability: GE DS200FEOBG1AAA’s conformal coating and compliance with IEC 60068-2-6/27 standards enable reliable operation in harsh conditions, including salt spray (offshore), coal dust (power plants), and turbine vibration (10–2000Hz). A Gulf Coast refinery deployed the module for 6 years without failure, outperforming non-conformal output boards that required annual replacement.

Application Field

GE DS200FEOBG1AAA is an indispensable excitation output component for industries relying on GE Mark V DCS to control generator field systems, with key applications in power generation, oil & gas, and heavy industry.

In power generation, GE DS200FEOBG1AAA regulates field current for gas, steam, and hydro turbines. A 600MW coal-fired plant in India used the module to drive thyristor converters in its generator excitation system, improving reactive power control and reducing fuel consumption by 2%—equivalent to $120,000 in annual savings. For hydroelectric facilities, it adjusts excitation for variable water flow; a Canadian dam used GE DS200FEOBG1AAA to optimize field current across 6 turbines, increasing overall plant efficiency by 3%.

In the oil & gas sector, GE DS200FEOBG1AAA supports offshore and onshore generator excitation. A Gulf of Mexico platform deployed the module to control its turbine generator’s excitation during storm-induced voltage dips, preventing compressor trips and avoiding $250,000 in production losses. Onshore, a U.S. shale gas facility used it to maintain stable field current for fracturing equipment generators, reducing downtime caused by voltage fluctuations.

In heavy industry, GE DS200FEOBG1AAA controls excitation for on-site generators powering manufacturing processes. A German steel mill used the module to stabilize its electric arc furnace generator’s field current, improving steel quality consistency and reducing scrap rates by 15%.

Related Products

GE DS200TPSAG1A: Redundant 24V DC power supply module that delivers stable power to GE DS200FEOBG1AAA, ensuring uninterrupted excitation signal conversion during voltage dips.

GE DS200EXDEG1ABA: Digital excitation control gateway that sends digital commands to GE DS200FEOBG1AAA for field current regulation.

GE DS200GDPAG1AHE: Generator protection module that works with GE DS200FEOBG1AAA to shut down excitation outputs during critical faults (e.g., overcurrent).

GE DS200IIBDG1AEA: Mixed-signal I/O module that provides feedback (e.g., actual field current) to GE DS200FEOBG1AAA for closed-loop control.

GE IS200DSPXH1CAA: Digital signal processor (for Mark VI/VIe DCS) that serves as a modern equivalent to GE DS200FEOBG1AAA in newer GE control systems.

GE DS200FEOBG1AAB: Updated variant of GE DS200FEOBG1AAA with 8 analog outputs (vs. 4), ideal for large generator systems with multiple excitation circuits.

GE IC660HHM501: Handheld monitor used to test output accuracy and fault protection of GE DS200FEOBG1AAA, enabling on-site calibration.

GE DS200IPCSG1ABB: I/O processor module that coordinates data between GE DS200FEOBG1AAA and the Mark V controller, ensuring synchronized excitation adjustments.

DS200FEOBG1AAA

Installation and Maintenance

Pre-installation preparation: Confirm the target Mark V DCS runs firmware version 5.0 or higher to ensure compatibility with GE DS200FEOBG1AAA. Use ESD-safe tools (anti-static wristband, insulated screwdrivers) to protect the module’s analog circuits, and verify the 24V DC input from GE DS200TPSAG1A meets the 18–30V range. Label excitation output cables (e.g., “OUT-FIELD-01” for field current output) to match GE DS200FEOBG1AAA’s terminal markings, avoiding wiring errors that could cause excitation instability.

Maintenance recommendations: Perform monthly visual inspections of GE DS200FEOBG1AAA to check for loose VME connectors, corrosion on terminal blocks, or illuminated fault LEDs; use compressed air (30 PSI max) to remove dust from the module and Mark V cabinet, avoiding direct airflow on analog output components. Quarterly, test output accuracy with a calibrated multimeter, verifying 4-20mA signals correspond to Mark V controller commands within ±0.1%. If drift exceeds this threshold, recalibrate using GE IC660HHM501 or replace GE DS200FEOBG1AAA with a factory-calibrated unit to maintain excitation precision.
