CAMERON AAP3798102-00130 | MU Controller Main Logic Module

Description

Product Core Brief

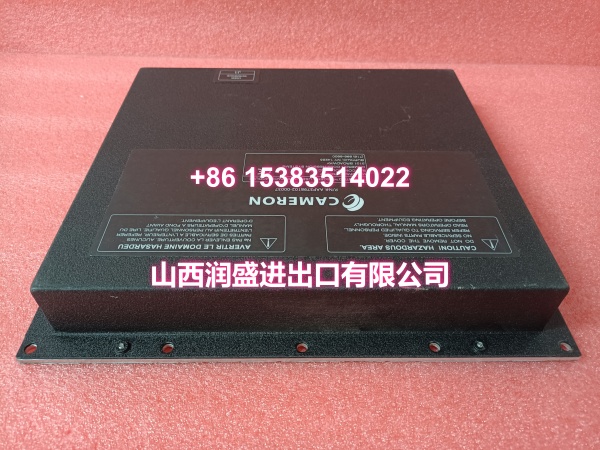

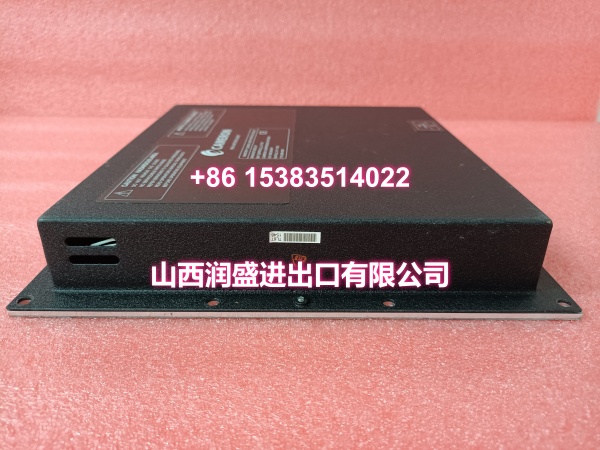

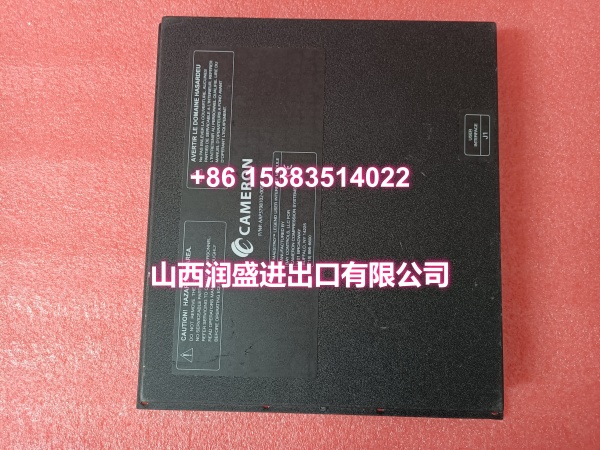

• Model: CAMERON AAP3798102-00130
• Brand: CAMERON
• Series: Centrifugal Compressor Control System
• Core Function: Executes primary logic for compressor startup, shutdown, and active safety protection.
• Product Type: Main Logic Module (MLM) / MU Controller
• Key Specs: PID Control | RS485/RS232 Interfaces | -40°C to 85°C Operating Range
• Condition: New Original / New Surplus

Product Introduction

CAMERON serves as the central processing unit for centrifugal air compressors. This MU controller regulates critical operations like intake valves and oil pumps.

The replacement module ensures safe operation through built-in overload and overtemperature protection. It operates reliably across a wide -40°C to 85°C range.

Key Technical Specifications

Quality Control Process

We test every OEM controller before shipping. First, we visually inspect the PCB for burnt traces or damaged relays. Next, we apply a 24V DC supply to verify power rails. Signal injection tests confirm analog channel accuracy. We also check RS485 communication using a serial monitor. Finally, the industrial automation unit is sealed in anti-static packaging.

Replacement Pitfall Guide

❗ Verify the Suffix: Ensure the replacement matches exactly. Suffix changes often indicate different firmware revisions.

❗ Check Backplane Seating: Push the module firmly into the backplane. A loose connection causes intermittent logic faults.

❗ Grounding Matters: Verify the control cabinet ground. Poor grounding introduces noise into the PID loops.

❗ Save Parameters First: Document current setpoints before swapping. The new board will have factory defaults.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• Benchmark: PID loop update rate typically < 10ms for responsive surge control.
• Benchmark: Supports up to 32 discrete I/O points for comprehensive machine monitoring.
