Description
1. Product Overview

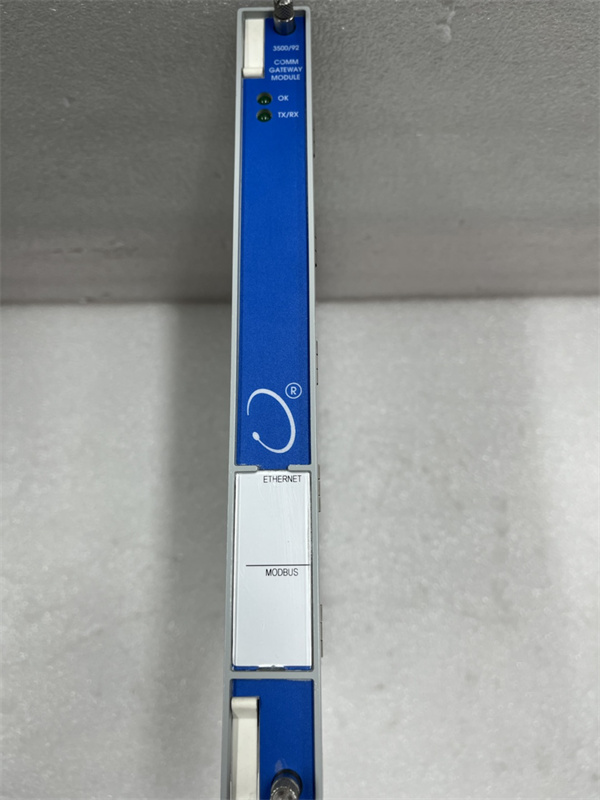

The BENTLY 3500/92 is a high-performance communication gateway module designed for BENTLY NEVADA’s 3500 series machinery monitoring system. As a core component of industrial IoT architectures, it serves as a bridge between rotating equipment monitoring systems and higher-level automation platforms, enabling real-time transmission of vibration, displacement, and other critical data. Its modular design allows flexible configuration of multiple communication protocols and interfaces, making it ideal for scenarios requiring integration with SCADA, DCS, or predictive maintenance systems in power generation, oil and gas, and chemical industries.
2. Parameter List
| Parameter Name | Parameter Value |
| Product Model | 3500/92 |
| Manufacturer | BENTLY NEVADA |
| Product Category | Communication gateway module for 3500 system |
| Protocol Support | Modbus RTU, Modbus TCP, BENTLY proprietary protocol, Ethernet/IP (optional) |
| Interface Types | RS232/RS422/RS485 serial ports, RJ45 Ethernet port |
| Data Rate | Serial: 19.2 kbps max; Ethernet: 10/100 Mbps auto-negotiation |
| Input/Output Channels | 8 configurable Modbus registers, supporting up to 256 data points per channel |
| Power Supply | 24 VDC ±10%, power consumption: 5 W typical, 7 W max |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Physical Dimensions | 241 mm × 24.4 mm × 242 mm (H × W × D), weight: 0.82 kg |
| Environmental Protection | IP65 dust and water jet protection |
| Certifications | CE, ATEX (hazardous area compliance), UL listed |
| Compatibility | 3500/05 full-size frame, 3500/15 power module, 3500/20 interface module |

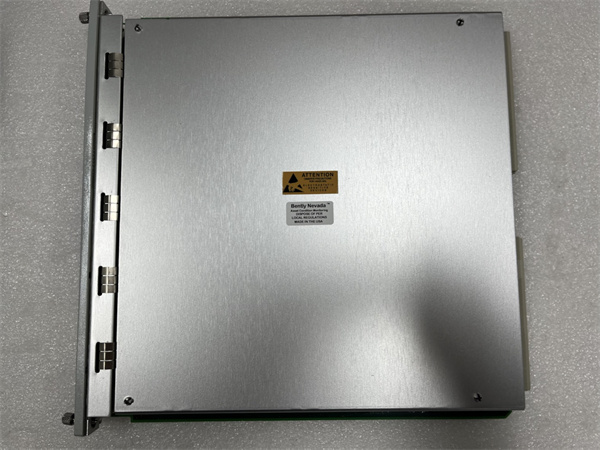

BENTLY 3500/92
3. Technical Features and Advantages
Multi-Protocol Data Integration
The 3500/92 supports multiple communication protocols, including Modbus RTU (via serial ports) and Modbus TCP (via Ethernet), allowing direct connection to PLCs, HMIs, and cloud platforms. For example, in a power plant, it can transmit turbine vibration data to a DCS system via Modbus TCP while simultaneously sending bearing temperature data to a predictive maintenance platform via BENTLY’s proprietary protocol. This dual-channel transmission ensures both real-time control and long-term data analysis requirements are met .
Configurable Data Mapping
Its 8 Modbus registers can be freely mapped to 3500 system monitoring parameters (e.g., vibration amplitude, alarm status), enabling users to customize data transmission formats. In a chemical plant, users can configure Register 1 to output compressor radial vibration values and Register 2 to output bearing temperature alarms, simplifying upper-layer system integration .
High-Reliability Signal Isolation
Featuring galvanic isolation technology, the module prevents ground loops and electromagnetic interference (EMI), ensuring stable data transmission in harsh environments. For instance, in a steel mill with high electromagnetic noise, the 3500/92 maintains data integrity while connecting rolling mill drive motor vibration sensors to the monitoring system .
Modular Hot-Swap Design
Compatible with 3500 series full-size frames, the 3500/92 supports hot-swapping, allowing module replacement without system downtime. This is critical for continuous production environments like oil refineries, where maintenance must be performed during operation .
Real-Time Data Processing
Equipped with a high-performance processor, the module processes up to 256 data points per second, ensuring millisecond-level latency. In wind power generation, it enables real-time adjustment of pitch systems by transmitting wind turbine gearbox vibration data to the control system .
4. Typical Application Scenarios
Power Generation Industry
Steam Turbine Condition Monitoring: Connects 3500 system vibration monitoring data to the plant’s SCADA system via Modbus TCP, providing operators with real-time shaft vibration, axial displacement, and other parameters to optimize turbine efficiency .
Generator Fault Prediction: Transmits stator winding temperature and bearing vibration data to a predictive maintenance platform via BENTLY’s proprietary protocol for early detection of insulation aging or bearing wear .
Oil & Gas Industry
Compressor Remote Monitoring: In offshore platforms, the 3500/92 sends centrifugal compressor vibration data to onshore control centers via Ethernet/IP, supporting remote fault diagnosis and maintenance scheduling .
Pump Health Management: Integrates pump casing vibration and motor current data via Modbus RTU, enabling centralized monitoring of multiple pump units in a petrochemical plant to prevent cavitation and seal failures .
Manufacturing Industry
High-Speed Motor Condition Monitoring: In automotive factories, the 3500/92 connects motor vibration sensors to the MES system via Modbus TCP, providing real-time data for production line equipment health assessments .
CNC Machine Tool Vibration Analysis: Transmits spindle vibration data to a cloud platform via Ethernet, enabling remote diagnostics and tool wear predictions to improve machining precision .

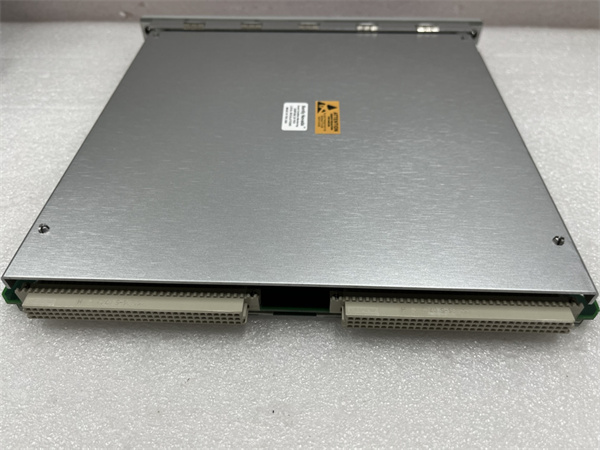

BENTLY 3500/92
5. Installation and Maintenance Guidelines
Installation Steps:
Frame Integration: Install the module in slots 3-14 of the 3500/05 full-size frame, ensuring proper grounding .
Cable Connection:
Serial Ports: Use shielded twisted-pair cables for RS485 connections, with a maximum length of 1200 meters .
Ethernet: Deploy Cat6 cables for distances up to 100 meters; use fiber optic transceivers for longer ranges .
Software Configuration:
Use BENTLY 3500 Configuration Software to map Modbus registers to monitoring parameters (e.g., assign Channel 1 vibration amplitude to Register 40001) .
Set communication parameters: baud rate (19200 bps), parity (None), and data bits (8) .
Function Testing: Simulate sensor inputs to verify data transmission integrity, ensuring upper-layer systems receive accurate values .
Maintenance Recommendations:
Routine Checks: Inspect cable connections monthly for looseness or corrosion; clean dust from the module surface .
Firmware Updates: Regularly update firmware via BENTLY’s official website to access new features and security patches .
Performance Calibration: Annually calibrate communication latency and data accuracy using BENTLY’s proprietary tools .
Fault Handling:
If data transmission is interrupted, check physical connections and reconfigure communication parameters.
For protocol conversion failures, reset the module or restore factory settings .
6. Service and Support
Warranty: 12-month warranty covering material and workmanship defects .
Technical Support: 24/7 global support via BENTLY’s customer service hotline and online ticketing system .
Training Services: Customized training on protocol configuration, data mapping, and fault diagnosis .
Spare Parts Supply: A global inventory ensures 48-hour delivery of replacement modules .
Documentation Resources: Online access to installation manuals, configuration guides, and API documentation via BENTLY’s official website .
Summary: The BENTLY 3500/92 communication gateway module, with its multi-protocol support, high reliability, and ease of integration, is a critical component for modern industrial IoT architectures. By seamlessly connecting machinery monitoring systems to upper-layer platforms, it enables predictive maintenance and intelligent decision-making, helping industrial enterprises reduce downtime and improve operational efficiency.
