Description
Technical Specifications Table
| Parameter | Specification |
| Model Number | Bently Nevada 330106-05-30-90-02-05(CN) |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | Proximity Transducer System (China Market) |
| Measurement Range | 0.08 to 0.236 in (2 to 6 mm) |
| Output Signal | -2 to -18 VDC |
| Frequency Response | 0 to 10 kHz |
| Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Power Requirement | 18-30 VDC, 10 mA typical |
| Probe Diameter | 8 mm |
| Cable Length | 9 m (29.5 ft) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Environmental Rating | IP67 |
| Compliance Standards | API 670, ISO 10816, GB Standards |
| Special Features | China-market configuration with extended cable |

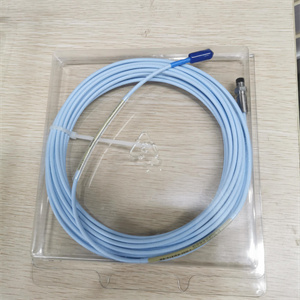

BENTLY 330106-05-30-90-02-05(CN)
Product Overview
The Bently Nevada 330106-05-30-90-02-05(CN) is a specialized proximity transducer system configured for the Chinese industrial market. This complete vibration measurement package includes a high-precision probe, extended-length cable, and driver electronics, specifically designed to meet the requirements of Chinese power generation and heavy industries.
The model number breakdown indicates:
330106: Base product number
05: Hardware revision
30: 30mm probe length
90: 90° connector orientation
02: Cable type
05: 5-pin configuration
(CN): China-market variant
Key Features and Benefits
Measurement Performance:
High-accuracy displacement measurement (±1%)
Wide frequency response for dynamic monitoring
Excellent temperature stability
200 mV/mil standard sensitivity
China-Market Specifics:
Extended 9-meter cable for large Chinese turbines
GB standard compliance
Localized documentation
Shanghai warehouse stock availability
Durability Features:
316 stainless steel construction
IP67 environmental protection
Vibration-resistant to 20 g
High-temperature cable materials

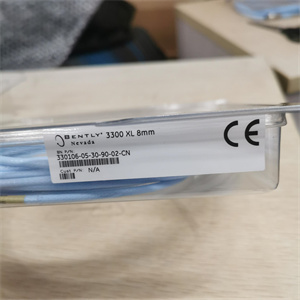

BENTLY 330106-05-30-90-02-05(CN)
Installation Requirements
Mechanical:
M10 x 1 mounting thread
Recommended torque: 20 Nm
Minimum bend radius: 50 mm
Anti-rotation provisions
Electrical:
Proper grounding essential
Shielded cable routing
-10 VDC ±0.5 V gap voltage
MIL-C-5015 connector interface
Compatible Systems
Bently Nevada 3500 Series monitoring systems
System 1® condition monitoring software
Chinese DCS platforms (Honeywell, Siemens, domestic)
Bently Nevada 3300/20 Proximitor®
Local PLC systems with analog input
China-Specific Support
Services:
Mandarin technical support hotline
Shanghai-based calibration services
Fast local spare parts delivery
On-site commissioning support
Certifications:
GB/T 15464 (Packaging)
GB 4208 (IP Rating)
Other applicable Chinese standards
The Bently Nevada 330106-05-30-90-02-05(CN) provides Chinese industries with a locally-supported vibration monitoring solution that maintains Bently Nevada’s global standards for machinery protection, while meeting specific regional requirements for documentation, compliance and technical support.
