Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | 135799-01 |
| Manufacturer | BENTLY NEVADA |
| Product category | Signal conditioning amplifier |
| Electrical performance | 24V DC power supply; Power consumption: 5W max; Input range: Compatible with eddy current sensor signals (e.g., 87199-01) |
| Output signal | ±5V DC (proportional to input); 4-20mA optional via configuration |
| Frequency response | 0 Hz to 10 kHz |
| Gain range | Configurable: 1x to 10x |
| Physical size | Width: 12.2mm, Height: 120mm, Depth: 150mm |
| Interface type | Terminal block for sensor input; Terminal block for conditioned output; DIN rail mountable |
| Environmental requirements | Operating temperature: -20°C to +70°C; Humidity: 5% – 95%, non-condensing; Vibration resistance: 5g peak (10-2000Hz) |
| Compatibility | Works with 87199-01 eddy current sensors, 3500/40M 176449-01 modules, 170180-01-00 software, and other 3500 series components |

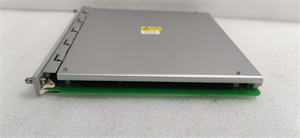

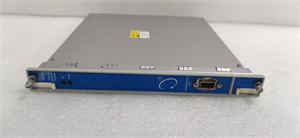

BENTLY 135799-01
Product introduction
The BENTLY NEVADA 135799-01 is a compact, high-performance signal conditioning amplifier designed to enhance and process signals from eddy current sensors such as the 87199-01, before they are fed into larger systems like the 3500/40M 176449-01 multi-channel transducer signal conditioner module. This specialized amplifier plays a crucial role in industrial machinery monitoring by refining raw sensor signals, reducing noise, and ensuring optimal signal quality for downstream processing.
As a dedicated signal conditioning solution, the 135799-01 is engineered to work seamlessly with eddy current sensors, which are widely used to measure shaft vibration, position, and speed in rotating machinery. By amplifying the weak -2V to +2V output of sensors like the 87199-01 and providing configurable gain options, this amplifier ensures that even the smallest signal variations are preserved and accurately transmitted. Its compact design and DIN rail mountable feature make it easy to integrate into existing setups, whether as a standalone unit or as part of a larger 3500 series system.
The 135799-01 acts as a vital intermediary between sensors and more complex conditioning modules like the 3500/40M 176449-01, enhancing the overall accuracy and reliability of the monitoring system. It is particularly valuable in environments where sensor signals may be degraded by long cable runs or electromagnetic interference, ensuring that the data reaching the 3500/40M 176449-01 and subsequent analysis software like 170180-01-00 is of the highest quality.
Core advantages and technical highlights
Signal amplification and noise reduction: The 135799-01 features advanced filtering and amplification circuitry that enhances the weak signals from 87199-01 eddy current sensors. With configurable gain ranging from 1x to 10x, it can amplify subtle signal variations caused by small shaft movements or vibrations, ensuring these details are not lost during transmission to the 3500/40M 176449-01 module. Its built-in noise reduction filters further improve signal quality by minimizing electromagnetic interference (EMI) and radio frequency interference (RFI) commonly found in industrial environments.
Seamless integration with eddy current sensors: Specifically calibrated to work with eddy current sensors like the 87199-01, the 135799-01 is optimized to handle their unique signal characteristics. It maintains the sensor’s frequency response up to 10 kHz, ensuring that high-frequency vibration components—critical for detecting early-stage bearing defects or rotor imbalance—are accurately preserved. This tailored compatibility eliminates signal distortion that can occur with generic amplifiers, providing more reliable data for the 3500/40M 176449-01 to process.
Compact and flexible installation: With its small form factor (12.2mm width) and DIN rail mountable design, the 135799-01 is ideal for installations where space is limited, such as control cabinets or machinery enclosures. It can be easily positioned close to the 87199-01 sensor to minimize cable length and reduce signal degradation, while still connecting seamlessly to the 3500/40M 176449-01 module via standard wiring. This flexibility makes it suitable for both new installations and retrofits of existing monitoring systems.
Enhanced system accuracy: By conditioning signals before they reach the 3500/40M 176449-01, the 135799-01 improves the overall accuracy of the monitoring system. It ensures that the 3500/40M 176449-01 receives a clean, amplified signal, reducing the risk of measurement errors and false alarms. This is particularly important for critical applications like turbine or compressor monitoring, where accurate vibration and position data is essential for preventing machinery failure.
Typical application scenarios
In a gas turbine power plant, 135799-01 amplifiers are installed near 87199-01 sensors monitoring turbine shaft vibration. The amplifiers condition the sensor signals, reducing noise from the turbine’s high-voltage environment, and transmit the enhanced signals to the 3500/40M 176449-01 module. The 3500/40M 176449-01 then processes these signals and sends them to the 3500/60 163179-01 relay module, which triggers alarms if vibration levels exceed safe thresholds. Engineers using 170180-01-00 software benefit from the improved signal quality, enabling more accurate analysis of vibration trends and early detection of potential issues.
Within a paper mill’s dryer section, 135799-01 amplifiers are used to condition signals from 87199-01 sensors monitoring dryer roll vibration. The amplifiers’ compact size allows them to be mounted directly on the machinery, minimizing cable length and signal loss. The conditioned signals are sent to the 3500/40M 176449-01 module, which integrates them with temperature and pressure data to provide a comprehensive view of roll health. Operators using the 3500/50 133388-02 display module can easily monitor vibration levels, while the 170180-01-00 software uses the high-quality data to generate maintenance reports.
In an oil refinery’s centrifugal pump system, 135799-01 amplifiers are deployed to enhance signals from 87199-01 sensors measuring pump shaft position and vibration. The amplifiers’ noise reduction capabilities are critical in this environment, where electrical interference from nearby motors can degrade sensor signals. The conditioned signals are transmitted to the 3500/40M 176449-01 module, which converts them to standardized outputs for the refinery’s DCS. This ensures that the DCS receives accurate data, enabling precise control of pump operations and timely response to any deviations from normal operating conditions.

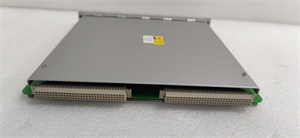

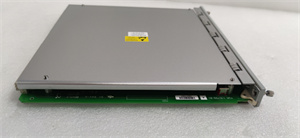

BENTLY 135799-01
Relationship with 3500/40M 176449-01 and other modules
The 135799-01 serves as a valuable preprocessing component that enhances the performance of the 3500/40M 176449-01 and other 3500 series modules:
With 3500/40M 176449-01: The 135799-01 conditions and amplifies signals from 87199-01 sensors before they reach the 3500/40M 176449-01 module. This preprocessing reduces the workload on the 3500/40M 176449-01 and ensures that it receives high-quality signals, improving the accuracy of its subsequent processing and analysis. The amplified ±5V output of the 135799-01 is perfectly matched to the input requirements of the 3500/40M 176449-01, ensuring seamless integration.
With 87199-01: The 135799-01 is specifically designed to work with the 87199-01 eddy current sensor, amplifying its weak output and filtering out noise. This partnership ensures that the subtle changes in shaft position and vibration detected by the 87199-01 are preserved and accurately transmitted to downstream modules. The amplifier’s configurable gain allows it to adapt to different measurement ranges of the 87199-01, providing flexibility in various applications.
With 170180-01-00: While the 135799-01 itself is not directly configurable via software, the improved signal quality it provides enhances the data analyzed by 170180-01-00. The software can more accurately detect trends, perform spectral analysis, and diagnose machinery faults when working with the clean, amplified signals from the 135799-01 (via the 3500/40M 176449-01).
With 3500/60 163179-01: The 135799-01 contributes to the reliability of the 3500/60 163179-01 relay module by ensuring that the signals triggering alarms are accurate and free from noise. By reducing false signals, it helps prevent unnecessary shutdowns or alarms, improving the overall efficiency of the protection system.
Related model recommendations
135799-02: A variant with extended temperature range (-40°C to +85°C) for extreme environment applications.
3500/40M 176449-01: Multi-channel transducer signal conditioner module that processes signals from the 135799-01.
87199-01: Eddy current proximity sensor whose signals are amplified and conditioned by the 135799-01.
170180-01-00: Software for analyzing data that has been conditioned by the 135799-01 and processed by the 3500/40M 176449-01.
3500/60 163179-01: Relay module that acts on signals derived from the 135799-01-conditioned sensor data.
149992-01: Shielded cable for connecting the 135799-01 to the 3500/40M 176449-01 module.
3500/05: Rack interface module that aggregates data from the 3500/40M 176449-01 (including signals from 135799-01).
Installation, calibration and maintenance instructions
Installation preparation: Mount the 135799-01 on a DIN rail in a control cabinet or near the 87199-01 sensor to minimize cable length. Ensure the installation location is free from excessive vibration and extreme temperatures. Power off all connected equipment before starting installation. Required tools include a screwdriver, wire strippers, and a torque wrench (0.5Nm).
Wiring and connection: Connect the 87199-01 sensor to the 135799-01 input terminal block using shielded twisted-pair cable. Ground the shield at the sensor end to prevent ground loops. Connect the 135799-01 output to the 3500/40M 176449-01 module’s input channel using appropriate wiring. Ensure all connections are tight and secure. Apply 24V DC power to the 135799-01 using a regulated power supply.
Calibration: The 135799-01 is factory-calibrated to work with 87199-01 sensors, but field calibration can be performed if necessary. Use a signal generator to apply a known -2V to +2V input signal (simulating the 87199-01 output) and adjust the gain potentiometer on the 135799-01 to achieve the desired ±5V output. Verify the calibration using a multimeter, ensuring the output is linear across the input range. For system-level calibration, use the 170180-01-00 software to calibrate the 3500/40M 176449-01 with the 135799-01 in the signal path.
Maintenance suggestions: Perform quarterly visual inspections to check for loose connections, corrosion, or damage to the amplifier or wiring. Clean the terminal blocks with a dry cloth if necessary. Test the amplifier’s output periodically using a known input signal to ensure it is within specification. If the output becomes unstable or noisy, check for loose connections or damaged cables before replacing the unit. The 135799-01 has no user-serviceable components, so contact technical support for repairs if issues persist.
Service and guarantee commitment
The 135799-01 comes with a 12-month warranty covering manufacturing defects, including signal amplification errors, filter malfunctions, or connection issues. During this period, we provide free repair or replacement of faulty units and technical support for integration with the 3500/40M 176449-01 module and 87199-01 sensor.
Optional extended warranties (up to 3 years) include priority technical assistance and calibration verification services. Backed by BENTLY NEVADA’s expertise in signal conditioning, the 135799-01 is guaranteed to deliver reliable performance, enhancing the accuracy and integrity of your machinery monitoring system by conditioning critical sensor signals before they reach the 3500/40M 176449-01 and other downstream components.
