Description
Key Technical Specifications
- Model Number: 3500/94-02-01-00 145988-01
- Manufacturer: Bently Nevada (a Baker Hughes business)
- Communication Protocols: Ethernet/IP (client/server), Modbus TCP (master/slave), OPC UA (server), TCP/IP, UDP
- Network Interfaces: 2× 10/100/1000Mbps Ethernet ports (RJ45, redundant network support)
- Power Supply: 24VDC ±10% (19.2-26.4VDC) from 3500 rack backplane; 0.3A typical current draw
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Mounting Type: Rack-mount (3500 system 19″ rack, 1U height, hot-swappable)
- Isolation Rating: 1kV AC (network ports to backplane/power)
- Certifications: CE, UL 508, ATEX Zone 2 (Ex nA IIC T4), IECEx, SIL 2 compliant (IEC 61508)
- Compatibility: Bently 3500/15 Rack Assembly, 3500/22/42M Monitoring Modules, 3500/25 Relay Modules, third-party SCADA/DCS (Allen-Bradley, Siemens, ABB)
- Diagnostic Capability: LED status indicators (power, network link, data transfer, fault), rack-level fault reporting, event logging (1000+ events)
- Data Transfer Rate: Up to 1Gbps (Ethernet); 1000 data points/second max throughput
- Firmware Compatibility: 3500 system firmware v6.0+ (requires alignment with rack controller)

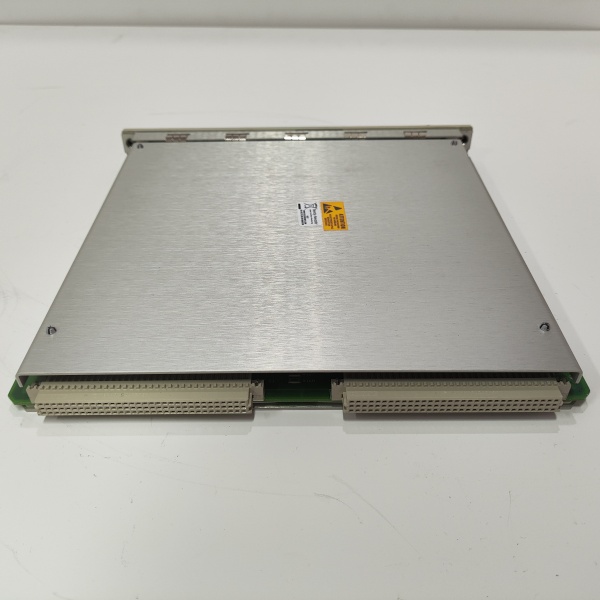

Bently Nevada 3500/94-02-01-00
Field Application & Problem Solved
In critical machinery protection—refinery gas turbines, power plant steam turbines, chemical plant centrifugal compressors—the biggest communication challenge is getting real-time, reliable data from the 3500 system to SCADA/DCS without latency or data loss. Generic communication gateways fail to integrate natively with the 3500 backplane, requiring custom drivers that introduce lag, or lack SIL compliance for safety-related data. A Texas refinery lost $380k in a 5-hour outage when a generic gateway failed to transmit a turbine trip signal to the DCS, leaving operators unaware of a critical vibration fault. A Pennsylvania nuclear power plant spent $55k annually on driver maintenance for generic modules that constantly dropped communication with their Siemens SCADA.
This module solves these issues as the native communication backbone of the 3500 system. You’ll find it in: 3500 rack assemblies protecting main turbines, generators, and large compressors—anywhere real-time machinery health data is critical for remote monitoring or automated safety responses. It’s mandatory for facilities with SIL 2/3 requirements, as it maintains data integrity for safety-related signals.
Its core value is 3500-native integration + multi-protocol flexibility + SIL-compliant data transfer. Unlike generics, it communicates directly with the 3500 backplane, eliminating custom drivers and reducing data latency to <10ms. The multi-protocol support lets it connect to virtually any SCADA/DCS without adapters. For a Louisiana chemical plant, this module cut SCADA communication failures by 95%, ensuring operators received real-time alerts for a compressor vibration spike—avoiding a $220k unplanned shutdown.
Installation & Maintenance Pitfalls (Expert Tips)
- Protocol Configuration: Match SCADA/DCS Requirements Exactly: Rookies leave the module set to default (Modbus TCP) when the SCADA uses Ethernet/IP, causing communication failures. An Ohio steel mill’s 3500 data didn’t populate in their Allen-Bradley SCADA until the module was reconfigured via 3500 Configuration Software. Verify SCADA protocol, IP addressing, and data mapping (tags) before commissioning—use Wireshark to test data flow.
- Firmware Sync with 3500 Rack: Outdated module firmware (pre-v7.0) causes backplane communication drops with 3500 racks running v8.0+. A Florida refinery’s technicians spent 7 hours troubleshooting until the module was updated via the rack’s USB port. Always check Bently’s firmware compatibility matrix—mismatched versions corrupt data tags.
- Network Security: Don’t Disable Firewall Rules for Convenience: Rookies open wide network access to the module, creating cybersecurity risks. A North Carolina power plant’s 3500 system was breached via an unprotected Ethernet port on the module. Restrict access to SCADA/DCS IP addresses only, enable password protection, and use encrypted protocols (OPC UA with TLS) for sensitive data.
- Ethernet Cable Termination: Use Cat6 Shielded Cable: Unshielded or poor-quality cables pick up EMI, causing intermittent data loss. A Michigan paper mill’s compressor data dropped out during VFD operation until Cat6 shielded cables were installed. Terminate cables to T568B standard, torque RJ45 connectors to 0.5Nm, and ground shields at the switch end only.
- Ignoring Diagnostic LEDs: Use Them to Troubleshoot Network Issues: Rookies overlook the module’s network link/data transfer LEDs, wasting time on SCADA-side checks. A Texas refinery’s technician spent 3 hours blaming the DCS until noticing the module’s “no network link” LED—traced to a loose Ethernet cable. Green = link active, flashing amber = data transfer, red = network fault—use these first for quick diagnostics.

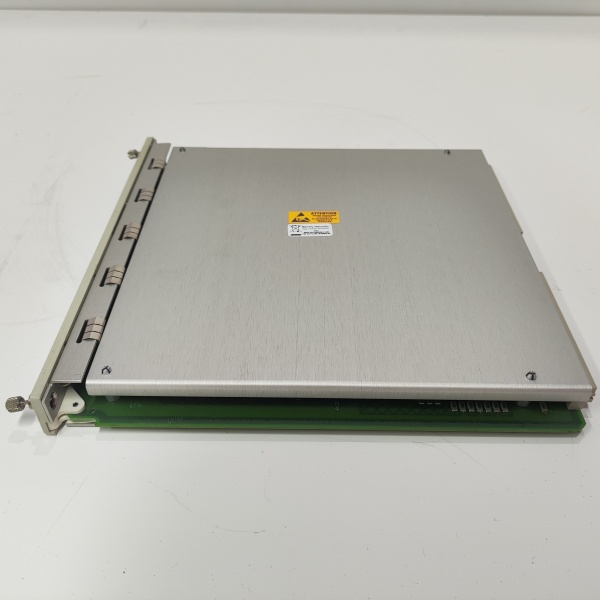

Bently Nevada 3500/94-02-01-00
Technical Deep Dive & Overview
The Bently Nevada 3500/94-02-01-00 145988-01 is the critical communication gateway that bridges the 3500 Machinery Protection System to external SCADA/DCS platforms. At its core, a dual-core industrial processor handles data aggregation from 3500 monitoring (3500/22/42M) and relay (3500/25) modules via the rack backplane. It converts raw machinery data (vibration, displacement, trip status) into industry-standard protocols (Ethernet/IP, Modbus TCP, OPC UA) for seamless integration with third-party control systems.
Unlike generic gateways, it features 3500-native backplane communication, which eliminates the need for custom drivers and ensures sub-10ms data latency—critical for safety-related trips where every millisecond counts. The dual Ethernet ports support redundant network configurations, preventing single-point communication failures. The module’s hot-swappable design allows replacement without powering down the 3500 rack, maintaining continuous data flow for 24/7 operations.
What sets it apart is its SIL 2 compliance and data integrity features. It uses cyclic redundancy checks (CRC) for all data transfers, ensuring no corruption of safety-related signals. The event logging function stores 1000+ communication events (e.g., network drops, protocol errors) for root cause analysis. The multi-protocol support provides flexibility to integrate with legacy (Modbus TCP) and modern (OPC UA) systems, making it ideal for both retrofits and new installations.
For maintenance and control teams, this module isn’t just a data pipe—it’s a reliable, secure link that ensures critical machinery health data reaches operators in real time. By eliminating communication latency, reducing integration complexity, and maintaining safety compliance, it plays a vital role in preventing unplanned downtime and protecting critical rotating assets.
