Description
Key Technical Specifications
- Model Number: 3500/92-03-01-00
- I/O Module Type: 03 = Ethernet/RS232 Modbus I/O Module (dual communication channels)
- Memory Configuration: 01 = Low Memory (suitable for standard monitoring applications)
- Agency Approval: 00 = None (no special hazardous area certifications)
- Supported Protocols:
- Modbus RTU (via RS232 serial port)
- Modbus TCP/IP (via Ethernet)
- Proprietary Bently Nevada protocol (for 3500 System software)
- Ethernet Interface: RJ45, 10BASE-T, 10Mbps, IEEE802.3 compliant
- Serial Interface: RS232 (DB9 connector), supports Modicon Modbus protocol in RTU mode
- Data Collection: Monitors all values/statuses from 3500 rack modules, updates at ≤1 second intervals
- Operating Temp: -30°C to +65°C (-22°F to +149°F)
- Storage Temp: -40°C to +85°C (-40°F to +185°F)
- Humidity: 95% non-condensing
- Safety Rating: SIL 2 (Functional Safety)
- Hazardous Area Rating: Not certified (standard version)
- Mounting: Installs directly into 3500 Series instrument rack (1 full-height front slot)
- Compliance: API 670 (for machinery protection systems), FCC, EMC Directive 2014/30/EU, RoHS

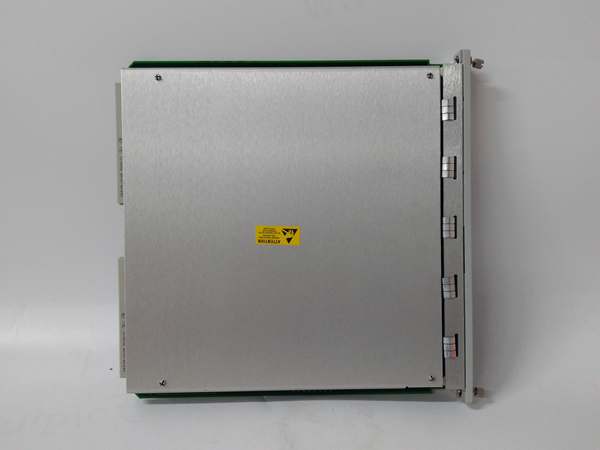

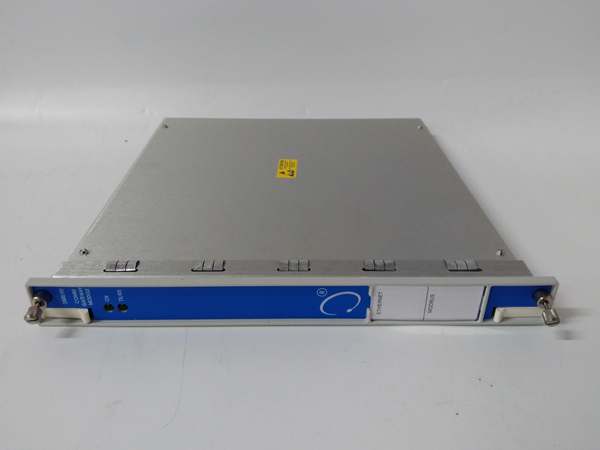

Bently Nevada 3500/92-03-01-00
Field Application & Problem Solved
In industrial plants with critical rotating equipment (turbines, compressors, pumps), the 3500/92-03-01-00 solves a common integration challenge: connecting machinery health data to plant-wide control systems. Many facilities struggle with siloed monitoring where machinery protection data (vibration, displacement, temperature) exists only in the 3500 System console, while process control operates separately on DCS/PLC networks.
A Texas refinery faced this exact issue when their turbine monitoring system couldn’t communicate with the plant DCS, leading to delayed detection of a bearing failure that cost $250,000 in unplanned downtime. The 3500/92-03-01-00 solved this by:
- Acting as a bidirectional data bridge between the 3500 System and external networks
- Simultaneously supporting both Ethernet (for high-speed data transfer) and RS232 (for legacy system compatibility)
- Enabling real-time monitoring of machinery parameters in the DCS interface alongside process variables
You’ll typically find this module in:
- Power plants (steam/gas turbine monitoring integration)
- Oil & gas facilities (compressor trains, pumps)
- Chemical plants (critical rotating equipment protection)
- Any industrial site requiring API 670-compliant machinery protection with enterprise-level data integration
Installation & Maintenance Pitfalls (Expert Tips)
-
Network Configuration: Never connect to unsecured networks. A Louisiana petrochemical plant experienced a cyber incident when their 3500/92 was accessed remotely through an unprotected Ethernet port. Always implement firewalls and use the optional VPN capabilities.
-
Cable Management:
- Ethernet: Use shielded CAT5e/CAT6 cables, maximum 100m length for reliable performance
- Serial: For RS232 connections exceeding 15m, use RS422/RS485 converters to prevent signal degradation
-
Memory Limitations: The “Low Memory” (-01) configuration has reduced data buffering capacity. In high-speed monitoring applications with multiple vibration channels, consider upgrading to the standard memory version to prevent data loss during peak load periods.
-
Firmware Updates: Always schedule updates during planned maintenance windows. An unexpected firmware update at an Ohio power plant caused a brief communication outage during a load shift, triggering false alarms in the DCS.
-
Redundancy Consideration: For critical applications, install dual 3500/92 modules in the same rack with separate network connections. A Midwest steel mill avoided a complete monitoring failure when one module experienced a hardware fault, with the redundant unit seamlessly taking over.

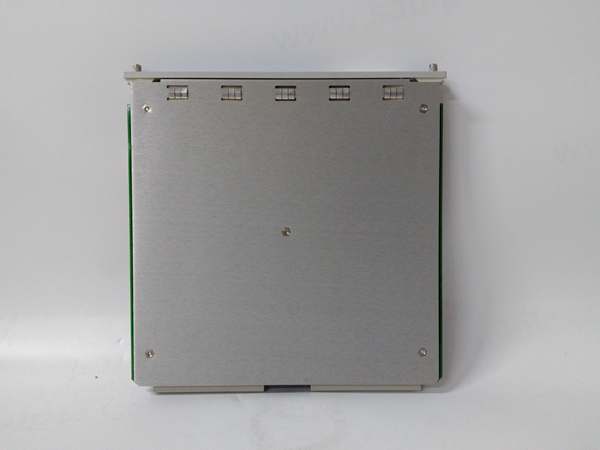

Bently Nevada 3500/92-03-01-00
Technical Deep Dive & Overview
The 3500/92-03-01-00 is a purpose-built communication hub designed to break down data silos in industrial monitoring environments. At its core, it functions as a protocol translator between the 3500 System’s proprietary data format and industry-standard Modbus protocols.
When installed in a 3500 Series rack (alongside monitor modules, power supplies, and I/O cards), it establishes a high-speed internal connection to gather real-time data from all rack components. This data includes:
- Vibration amplitudes from proximity probes
- Axial displacement measurements
- Bearing temperatures
- Keyphasor signals
- Module health statuses and alarms
The dual-interface design (Ethernet + RS232) provides unmatched flexibility for system integration:
- Ethernet Port: Connects to plant LAN for high-speed data transfer to DCS/SCADA systems using Modbus TCP/IP. This interface also supports direct communication with Bently’s 3500 Configuration Software for remote system management.
- RS232 Port: Maintains compatibility with legacy control systems or devices that only support serial Modbus RTU.
What makes this module particularly valuable is its ability to handle protocol conversion on-the-fly while maintaining the integrity and timing critical for machinery protection. Unlike generic gateways that introduce latency, the 3500/92-03-01-00 is optimized for industrial real-time applications, with data refresh rates of less than 1 second for the entire rack.
For maintenance teams, it eliminates the need for separate monitoring workstations by making machinery health data available directly in the plant’s existing control infrastructure. This not only streamlines operations but also enables predictive maintenance strategies by correlating machinery performance with process conditions – ultimately reducing unplanned downtime and extending equipment life.
