Description
Key Technical Specifications
- Model Number: 3500/42M 138700-01
- Manufacturer: Bently Nevada (a Baker Hughes business)
- Channel Count: 2 fully independent, configurable channels
- Measurement Capabilities:
- Channel 1: Proximitor (eddy current) input – shaft displacement (peak-peak), velocity (RMS)
- Channel 2: Seismic (IEPE accelerometer) input – vibration velocity (RMS), acceleration (peak)
- Input Compatibility:
- Proximitor: Bently 3300 XL Proximitors, 3301 series proximity probes
- Seismic: 4-20mA IEPE accelerometers, charge accelerometers (with external conditioner)
- Measurement Ranges:
- Displacement: 0-508μm (0-20 mils) peak-peak
- Velocity: 0-50mm/s (0-2.0 ips) RMS
- Acceleration: 0-50g peak
- Power Supply: 24VDC ±10% (19.2-26.4VDC) from 3500 rack backplane; 0.5A typical current draw
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Mounting Type: Rack-mount (3500 system 19″ rack, 1U height, hot-swappable)
- Isolation Rating: 1kV AC (input circuits to backplane/power); 500V AC (channel-to-channel)
- Certifications: CE, ATEX Zone 2 (Ex nA IIC T4), IECEx, UL 508, SIL 2 compliant (IEC 61508)
- Compatibility: Bently 3500/15 Rack Assembly, 3500/25 Relay Module, 3500/92 Communication Module, 3301 proximity probes, industrial IEPE accelerometers
- Diagnostic Capability: Per-channel LED indicators (power, signal OK, alarm, trip), rack-level fault reporting, 10-second waveform capture (raw data)
- Response Time: ≤10ms (alarm/trip trigger); 1kHz sampling rate per channel

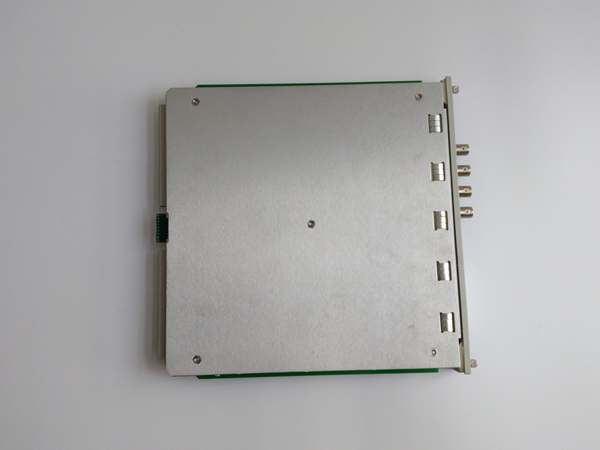

Bently Nevada 3500/42M
Field Application & Problem Solved
In critical rotating machinery protection—power plant steam turbines, refinery gas turbines, chemical plant centrifugal compressors—the biggest gap is combining shaft-level (displacement) and housing-level (vibration) data into a single, integrated monitoring system. Generic setups require separate proximity and seismic modules that don’t sync with the 3500 system, leading to data lag, misaligned alarm thresholds, and missed fault correlations. A Texas refinery lost $750k in a 10-hour outage when a generic proximity module detected shaft displacement, but a separate seismic module failed to trigger a shutdown—by the time operators reacted, the turbine rotor had contacted the stator. A Pennsylvania power plant spent $60k annually on troubleshooting because their disjointed modules couldn’t correlate shaft misalignment (proximity) with bearing vibration (seismic), leading to guesswork in maintenance.
This module solves that by integrating both measurement types into a native 3500 component. You’ll find it in: 3500 rack assemblies protecting main power turbines, generator sets, and large centrifugal compressors—assets where unplanned downtime costs six to seven figures per hour. It’s mandatory for facilities with SIL 2/3 safety requirements, as it provides a single, compliant monitoring point for dual-fault detection.
Its core value is integrated dual-input monitoring + 3500-native sync + fault correlation capability. Unlike separate modules, it time-stamps proximity and seismic data to the same clock, enabling technicians to correlate shaft displacement with housing vibration (e.g., linking bearing wear to rotor unbalance). For a Louisiana nuclear power plant, this module detected a 3mm/s increase in seismic vibration paired with 15μm shaft displacement—correlating to a failing turbine bearing—96 hours before a potential catastrophic failure, allowing scheduled maintenance and avoiding a $2.1M outage.
Installation & Maintenance Pitfalls (Expert Tips)
- Channel Configuration: Never Mix Input Types Without Software Setup: Rookies plug an accelerometer into Channel 1 (proximitor input) or a proximity probe into Channel 2 (seismic input), causing invalid readings or module damage. An Ohio steel mill’s generator monitor showed nonsensical data until the 3500 Configuration Software was updated to set Channel 1 = proximitor, Channel 2 = seismic. Always configure channel types in software before wiring sensors—verify with a signal generator post-installation.
- Firmware Alignment with 3500 Rack: Outdated module firmware (pre-v6.0) fails to communicate with 3500 racks running v7.0+, leading to “module not detected” faults. A Florida refinery’s technicians wasted 8 hours troubleshooting until the module was updated via the rack’s USB port. Check Bently’s firmware compatibility matrix—always match module firmware to the rack’s controller version.
- Terminal Torque: 0.6Nm for Signal, 0.8Nm for Power: Loose signal terminals cause intermittent signal dropouts; over-tightened power terminals strip blocks. A Michigan paper mill’s compressor monitor triggered random alarms until signal terminals were torqued to 0.6Nm. Use a precision torque screwdriver—label terminals to avoid mixing torque specs.
- Sensor Shield Grounding: Single-Point at Module End: Grounding proximity/seismic cable shields at both ends creates ground loops, introducing 60Hz noise. A North Carolina refinery’s turbine data had persistent hum until shields were disconnected from the machinery housing and grounded solely at the module. Use Bently’s 200350 shielded cables and maintain 30cm separation from AC power lines.
- Waveform Capture: Enable It for Root Cause Analysis: Rookies disable waveform capture to “save memory,” losing critical data during fault events. A Texas chemical plant’s turbine trip was traced to a 5ms shaft rub only after reviewing the module’s captured waveform (correlating proximity spike with seismic vibration). Enable continuous 10-second buffers via software—this data is irreplaceable for troubleshooting unbalance, misalignment, or bearing failure.

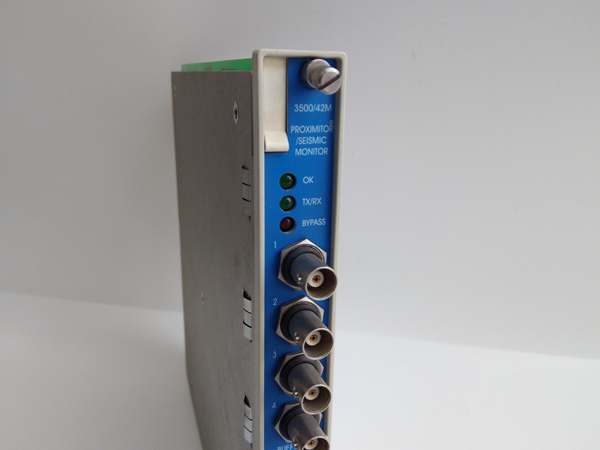

Bently Nevada 3500/42M
Technical Deep Dive & Overview
The Bently Nevada 3500/42M 138700-01 is a cornerstone of the 3500 Machinery Protection System, engineered to provide comprehensive health monitoring by uniting shaft and housing data in a single module. At its core, a 32-bit microprocessor with dedicated signal processing engines handles each channel independently: Channel 1 processes low-voltage eddy current signals from proximity probes (converting to displacement/velocity), while Channel 2 amplifies and filters 4-20mA signals from IEPE accelerometers (converting to velocity/acceleration).
The module’s real power lies in its 3500-native integration: It communicates directly with the rack’s backplane, syncing data with other 3500 modules (e.g., 3500/25 relays, 3500/92 communication) to eliminate latency between fault detection and shutdown. Hot-swap capability allows module replacement without powering down the rack—critical for 24/7 operations. The 1kV AC isolation between channels and backplane blocks electrical interference from VFDs and motor cables, ensuring signal integrity in noisy industrial environments.
What sets it apart is its fault correlation capability and SIL 2 compliance. By time-stamping proximity and seismic data to the same internal clock, it enables technicians to link shaft behavior (e.g., displacement) to housing vibration (e.g., bearing wear), reducing diagnostic time by 70% compared to disjointed systems. The SIL 2 certification (IEC 61508) confirms its reliability for safety-related applications, making it the gold standard for critical rotating assets. For maintenance and safety teams, this module isn’t just a monitor—it’s a diagnostic tool that provides a complete picture of machinery health, ensuring personnel safety and minimizing catastrophic downtime.
