Description
Key Technical Specifications
- Model Number: 3500/40M-01-01 125680-01
- Manufacturer: Bently Nevada (a Baker Hughes business)
- Module Type: 3500/40M Proximitor Monitor with Internal Terminations
- Channel Count: 4 independent channels (programmable in pairs)
- Input Type: Bently Nevada proximity transducer signals (eddy current probes)
- Input Impedance: 10 kΩ (standard I/O)
- Measurement Parameters:
- Radial Vibration (sensitivity: 3.94 mV/μm or 7.87 mV/μm)
- Thrust Position (sensitivity: 3.94 mV/μm or 7.87 mV/μm)
- Differential Expansion (sensitivity: 0.394 mV/μm or 0.787 mV/μm)
- Eccentricity (sensitivity: 3.94 mV/μm or 7.87 mV/μm)
- REBAM® (Rotating Element Bearing Analysis Method, sensitivity: 40 mV/μm or 80 mV/μm)
- Signal Conditioning: Programmable filters (direct, gap, 1X, 2X, not 1X, Smax)
- Accuracy: Within ±0.33% of full scale (typical), ±1% maximum
- Power Requirements: 24VDC ±10% (from 3500 system power supply)
- Power Consumption: 7 watts typical
- Operating Temperature: -30°C to +65°C (-22°F to +150°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: 95%, non-condensing
- Physical Dimensions: 241.3 mm × 24.4 mm × 241.8 mm (9.50 in × 0.96 in × 9.52 in)
- Weight: 0.46 kg (1.01 lb)
- Mounting: 19″ rack mount (1 full-height front slot in 3500 system rack)
- Certifications: CE, UL 508, ATEX Zone 2, IECEx, API 670 compliant
- Communication: Backplane interface for 3500 system communication (RS-485 equivalent)
- LED Indicators: OK (power/health), TX/RX (communication), Bypass (bypass mode)

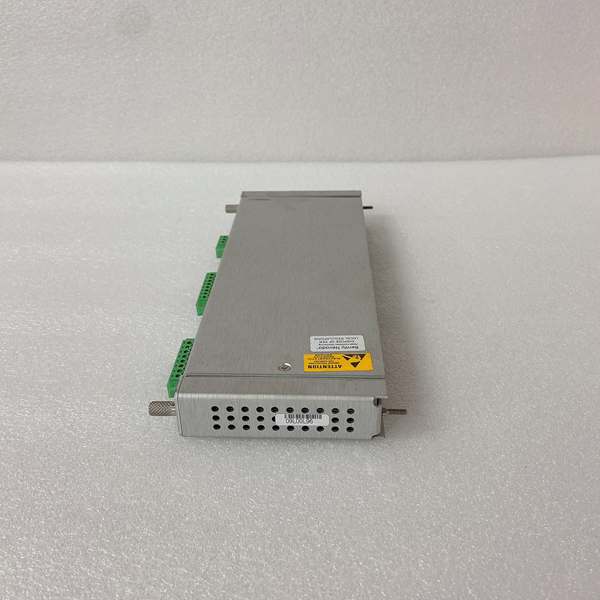

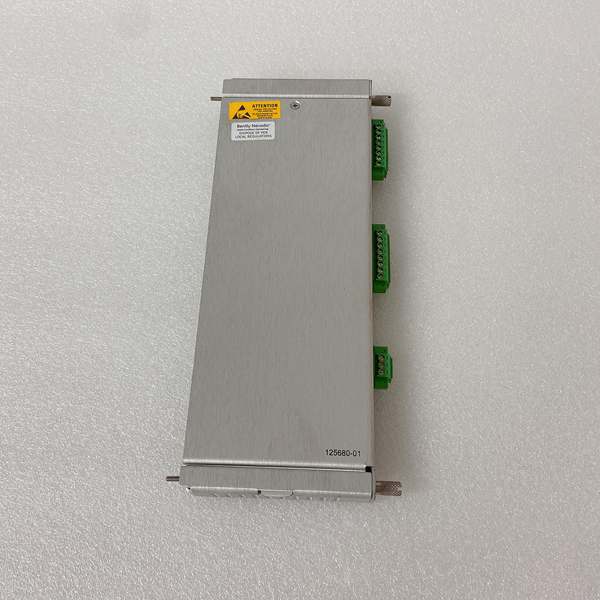

Bently Nevada 3500/40M-01-01 125680-01
Field Application & Problem Solved
In critical rotating machinery, the challenge is maintaining continuous, reliable monitoring of shaft vibration and position to prevent catastrophic failures. Generic monitoring systems lack the precision and integration needed for API 670 compliance, leading to false alarms or missed faults. A Texas refinery experienced a $1.2M outage when a non-Bently monitoring system failed to detect a turbine shaft misalignment. A Pennsylvania power plant spent $75k annually replacing inferior modules that couldn’t handle steam turbine operating conditions.
The 3500/40M-01-01 125680-01 solves these issues as a factory-integrated component of the 3500 Machinery Protection System. It’s deployed in:
- Oil & Gas: Refinery gas turbines, compressor trains, pump shafts
- Power Generation: Steam turbines, generators, hydroelectric equipment
- Chemical Processing: Centrifugal compressors, agitators
- Manufacturing: High-speed rotating equipment, extruders
Its core value is precision measurement + rugged reliability + system integration. Unlike generic solutions, it provides API 670-compliant monitoring with 0.33% full-scale accuracy while operating flawlessly in extreme industrial environments. For a Louisiana chemical plant, this module reduced maintenance costs by 40% and eliminated unplanned shutdowns, saving $320k annually.
Installation & Maintenance Pitfalls (Expert Tips)
-
Channel Pairing Mandate: Program in Channel Pairs: The 3500/40M requires channels to be programmed in pairs (1&2, 3&4), not individually. A rookie mistake at a Michigan steel mill caused monitoring gaps when channels were configured separately. Always use 3500 Rack Configuration Software to program channels in pairs for proper functionality .
-
Cable Routing: Avoid EMI Hotspots: Improper cable routing near motors or variable frequency drives introduces noise. A Florida power plant’s vibration readings were corrupted until cables were rerouted through shielded conduits. Route proximity transducer cables separately from power cables and high-noise equipment, using Bently’s recommended 330130 series extension cables 本特利（Bently Nevada）.
-
Alarm Configuration: Set Multiple Trip Levels: Many operators only set primary alarms, missing the opportunity for progressive protection. Configure Warning alarms to trigger early detection, and Danger alarms for critical thresholds. A Texas petrochemical facility avoided a $250k incident by using tiered alarms to identify bearing wear before catastrophic failure .
-
Firmware Updates: Maintain Compatibility: Outdated firmware causes communication issues with newer 3500 modules. A Kentucky refinery experienced system crashes until all modules were updated to the required minimum versions (3500/01 Software V2.50, 3500/40M Firmware V2.1). Always check for updates during preventive maintenance .
-
Hot-Swap Caution: Observe Power Sequencing: While the module supports hot-swapping, power cycling during replacement can damage backplane components. A Pennsylvania paper mill fried a backplane when a technician replaced a module without following the proper procedure. Always use the 3500 software to put the module in Bypass mode before removal, and power down the affected rack section if multiple modules are being replaced .

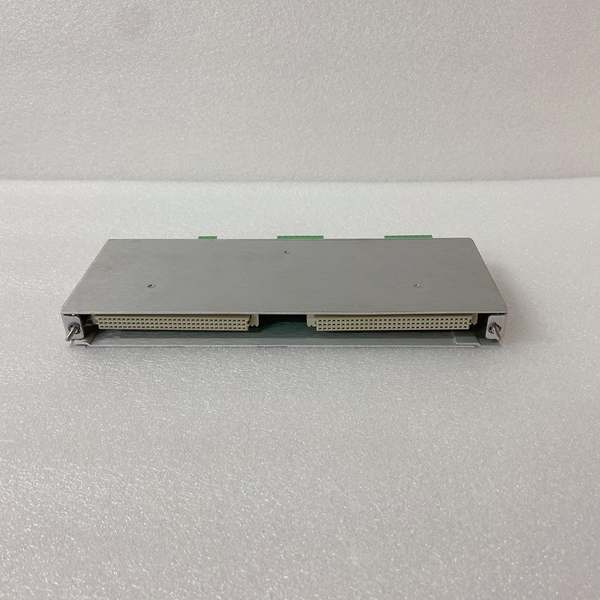

Bently Nevada 3500/40M-01-01 125680-01
Technical Deep Dive & Overview
The Bently Nevada 3500/40M-01-01 125680-01 is a sophisticated monitoring engine at the heart of the 3500 system. Each of its 4 channels accepts signals from Bently Nevada proximity transducers (eddy current probes), which measure non-contact displacement between the probe tip and a conductive target (typically a machine shaft) .
Internally, the module employs advanced signal conditioning circuitry to convert raw transducer signals into precise measurements:
- For Radial Vibration: The module calculates direct vibration amplitude, gap (DC position), 1X amplitude/phase (synchronous vibration), 2X amplitude/phase (twice-running speed vibration), and other key parameters .
- For REBAM Analysis: A specialized algorithm processes bearing vibration signals to detect early signs of rolling element bearing damage, with sensitivity up to 80 mV/μm .
- For Thrust/Eccentricity/Differential Expansion: The module provides high-precision position measurements critical for detecting shaft misalignment or thermal growth .
What distinguishes this module is its system intelligence. It continuously compares measured values against user-configurable alarm setpoints, triggering warnings or shutdowns when thresholds are breached. The module also communicates with other 3500 components via the backplane, enabling comprehensive machinery health monitoring and data logging through Bently’s System 1 software .
For maintenance teams, this isn’t just a monitoring device—it’s a guardian of industrial assets. By providing early warning of developing faults and reliable trip protection, it ensures safe, efficient operation of machinery that would otherwise risk catastrophic failure, production losses, and environmental hazards. Its rugged design and precision engineering make it the industry standard for critical machinery protection across the globe.
