Description
Product Core Brief
- Model: 330103-A00-B10-C10-D02-E00
- Brand: Bently Nevada
- Series: 3300 XL 8 mm
- Core Function: Provides non-contact shaft vibration and position monitoring for critical machinery.
- Product Type: Proximity Probe
- Key Specs: 8 mm Tip | 4 m Cable | M10x1 Thread
- Condition: New Original (New Surplus)

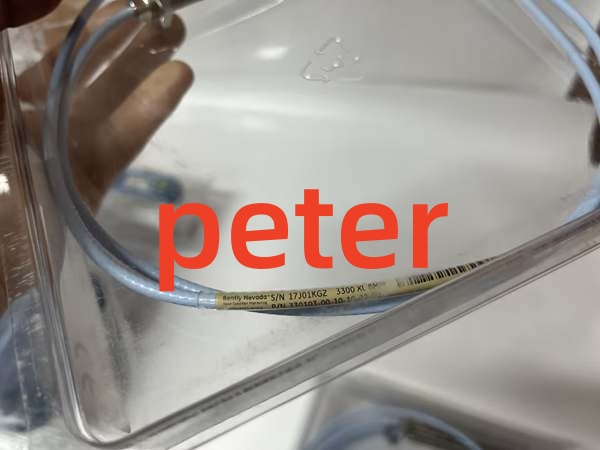

Bently Nevada 330103-A00-B10-C10-D02-E00
Product Introduction
BENTLY 330103- is an 8 mm eddy current proximity probe with integrated cabling. It mounts directly to the machine casing using a standard M10x1 metric thread.
This specific configuration eliminates separate extension cables, reducing potential failure points. The BENTLY 330103- offers a linear range of 2 mm with 7.87 mV/µm sensitivity. Verify target material conductivity against OEM specs before mounting.
Key Technical Specifications
- Probe Tip Diameter: 8 mm (0.315 in)
- Cable Length: 4 meters
- Thread Size: M10x1 Metric
- Sensitivity: 7.87 mV/µm (200 mV/mil)
- Linear Range: 2 mm (80 mils)
- Frequency Response: 0 to 10 kHz
- Operating Temp: -40 °C to +177 °C
- Coil Resistance: 9.5 Ω ±1 Ω at 25 °C
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Trace source via serial number. Inspect probe tip for scratches or pitting.
- Live Functional Test: Connect to TK-3E calibrator. Verify linearity across full 2 mm gap.
- Electrical Parameter Test: Measure coil resistance and insulation (500 V Megger, >10 MΩ).
- Cable Integrity Test: Check continuity and shield grounding at connector.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with date.
Bently Nevada 330103-A00-B10-C10-D02-E00
Replacement Pitfall Guide
❗ Cable Length Mismatch: The BENTLY 330103- has a fixed 4 m cable. Adding extension cables changes system calibration.
❗ Thread Confusion: M10x1 is metric. Do not force 3/8-24 UNF probes into metric housings. Cross-threading destroys the casing.
❗ Target Material: Eddy current response varies with conductivity. Verify target material matches original OEM spec. Aluminum and steel behave differently.
❗ Gap Voltage: Set initial gap to -9 Vdc to -10 Vdc for steel targets. Well, technically you can use other points, but -9.5 Vdc is the industry standard center point.
❗ ESD & Handling: Never touch the probe tip with bare fingers. Skin oils attract debris and alter gap readings.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- 330103- → 330103-00-04-10-02-CN : Direct — verify CN suffix requirements
- 330103- → 330101-00-12-10-02-05 : Incompatible — 3/8-24 UNF thread
- 330103- → 330103-00-06-10-02-00 : Needs Adaptation — 6m cable requires recalibration
