Description
Product Core Brief
- Model: 136294-01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Provides isolated 4-20 mA process variable signal routing with external terminations for the 3500/62 monitor.
- Product Type: Isolated 4-20 mA I/O Module (External Terminations)
- Key Specs: External Termination Block | Isolated 4-20 mA | 3500/62 Compatible
- Note: Requires separate purchase of External Termination Block and interconnect cables.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Isolated 4-20 mA I/O Module with External Terminations |
| System Compatibility | Bently Nevada 3500/62 Monitor |
| Signal Type | Isolated 4 to 20 mA |
| Termination Style | External Termination Block (Euro Style or Terminal Strip) |
| Function | Process variable routing, isolation, and external wiring interface |
| Form Factor | 3500 Front Card Assembly |
| Application | DCS integration, process monitoring, and data acquisition |
| Integration | Plug-and-play into 3500 rack backplane |

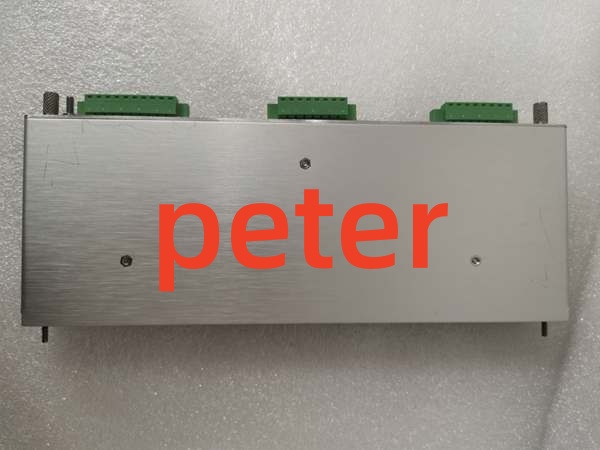

Bently Nevada 128229-01
Product Introduction
The 136294-01 is a specialized I/O module designed for the Bently Nevada 3500/62 Process Variable Monitor. It provides the physical interface for routing isolated 4-20 mA signals while utilizing an external termination block for simplified field wiring and maintenance.
This module ensures reliable signal isolation and routing for process variables. By separating the wiring interface from the module, it allows technicians to disconnect field wiring without disturbing the module itself, making it ideal for critical process monitoring applications.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Verify part number 136294-01 against OEM documentation. Inspect the backplane connector pins for straightness and oxidation. Check the PCB for cold solder joints or physical damage.
- Live Testing: Mate with a verified 3500/62 rear card in a test rack. Inject a calibrated 4-20 mA signal and verify accurate data reporting in System 1 software.
- Electrical Testing: Measure insulation resistance between signal channels and chassis ground (>10MΩ). Verify the isolation barrier integrity. Check grounding continuity across the chassis.
- Hardware Verification: Confirm all mounting standoffs and internal ribbon cable connections are secure. Inspect the mating connector pins for straightness.
- Final QC & Packaging: Clean contact surfaces with approved solvent. Package in anti-static shielding with desiccant. Attach QC pass tag with test date, signal verification results, and technician ID.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ External Termination Block Required: This module does NOT have internal terminations. You must order the External Termination Block and interconnect cables separately. Attempting to wire directly to the module without the proper termination block will result in connection failure.
❗ Rear Card Mismatch: The 136294-01 front card must match the specific revision of your 3500/62 rear card. Never mix incompatible front/rear card combinations. Doing so can cause signal routing errors or backplane communication failures. Always verify the rear card part number first.
❗ Internal vs. External Confusion: Do not confuse this module (136294-01) with the internal termination version (136483-01). You cannot use External Termination Blocks with Internal Termination I/O modules. Verify your existing wiring architecture before ordering.
❗ Internal Ribbon Cable Stress: This front card connects to the rear processing card via an internal ribbon cable. When installing, ensure the ribbon cable is not pinched, folded, or stressed. A damaged ribbon cable causes intermittent signal loss that is nearly impossible to diagnose in the field.
❗ ESD Dangers: The isolated signal circuits are extremely sensitive to electrostatic discharge. A static zap from an ungloved hand can destroy the isolation components without visible damage. Always wear a grounded wrist strap when handling this module.
Replacement Guide:
- Pre-install: Document existing sensor wiring and verify rear card compatibility. Disconnect all field cables from the external termination block. Ground yourself.
- Removal: Remove the front panel mounting screws. Carefully separate the front card from the rear card, ensuring the internal ribbon cable is not damaged.
- Install: Align the new front card with the rear card connector. Press evenly until fully seated. Reinstall mounting screws and reconnect the external termination block.
- Power-on Test: Verify 4-20 mA signal quality in System 1 software. Check for proper process variable readings and confirm no new alarms are active before returning to service.

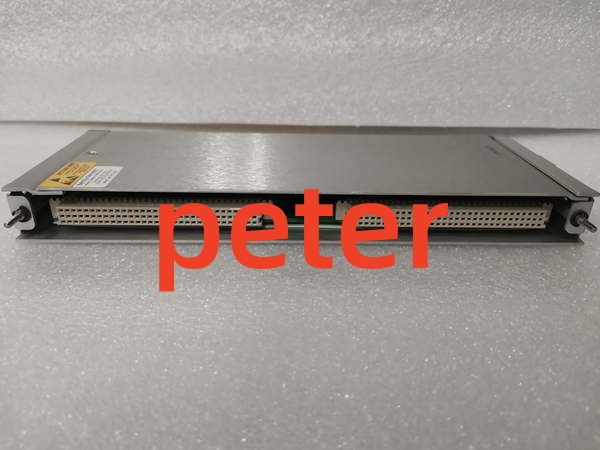

Bently Nevada 128229-01
FAQ (Frequently Asked Questions)
Q: Can I hot-swap this I/O module?
A: No. The 136294-01 does not support hot-swapping. Disconnecting the front card while the 3500/62 is powered will cause open-circuit conditions on the signal inputs, potentially triggering false alarms or damaging the isolation circuits. Always schedule a maintenance window and de-energize the module.
Q: What is the difference between 136294-01 and 136483-01?
A: The 136294-01 uses external terminations and requires a separate termination block and cables. The 136483-01 has internal terminations where field wiring connects directly to the module. These two modules are NOT interchangeable.
Q: What external termination block do I need?
A: You need either the 3500/62 External Termination Block with Terminal Strip Connectors (136603-01) or the Euro Style Connectors version (163179-03). Verify which style matches your existing field wiring infrastructure.
Q: Why am I getting erratic 4-20 mA readings after replacement?
A: This is usually caused by improper termination block connections, damaged interconnect cable, or a mismatched front/rear card combination. Verify all connections at the external termination block are secure. Check the interconnect cable for damage. Confirm the front card part number matches your rear card revision exactly.
Q: Can I use this module with a 3500/42M monitor?
A: No. The 136294-01 is designed exclusively for the 3500/62 Process Variable Monitor. The 3500/42M uses a different I/O architecture for proximitors and seismic sensors. Cross-compatibility will result in mechanical fitment failure and electrical incompatibility.
Q: What happens if I lose the interconnect cable?
A: The interconnect cable between the front card and external termination block is specific to this module. Generic cables will not work. Order the exact replacement cable from Bently Nevada to ensure proper pinout and signal integrity.
Q: Is this part still manufactured by Bently Nevada?
A: The 3500 system remains an active product line, and the 136294-01 is a standard component. However, always verify current OEM availability and lead times. For legacy installations, New Original or New Surplus inventory is typically available through authorized distributors.
