Description
Product Core Brief
- Model: 136180-01
- Brand: BENTLY NEVADA
- Series: 3500 Machinery Protection System
- Core Function: Serves as the primary processing board for the 3500/92 communication gateway module.
- Product Type: Communication Gateway Main Board (PWA)
- Key Specs: 3500/92 Assembly | Modbus TCP/RTU | 136188-02 Terminal Board Companion
- Condition: New Original (New Surplus)
Product Introduction
BENTLY NEVADA 136180-01 is the main printed wiring assembly (PWA) designed for the 3500/92 communication gateway. It acts as the central processing brain, managing protocol conversion and routing data between the 3500 rack and external control networks.
Unlike the 136188-02 terminal board which handles physical field wiring, this unit processes the logic. It supports standard industrial protocols including Modbus TCP/IP and Modbus RTU to seamlessly integrate vibration data into your DCS or SCADA environment.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Communication Gateway Main Board |
| Part Number | 136180-01 |
| Parent Assembly | 3500/92 Communication Gateway |
| Supported Protocols | Modbus TCP/IP, Modbus RTU, Bently Private |
| Network Interface | Dual Ethernet Ports (Redundancy Optional) |
| Serial Interface | RS232 / RS485 |
| Installation Slot | Dedicated Communication Slot (Usually Far Right) |
| Data Access | Full Rack Parameter & Diagnostic Read |
| Compliance | API 670, IEEE 802.3 |

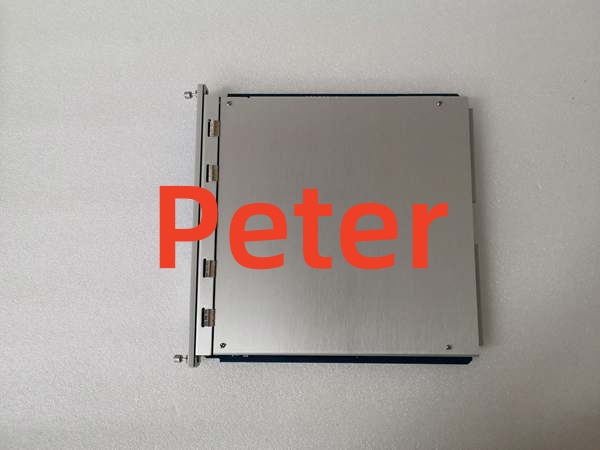

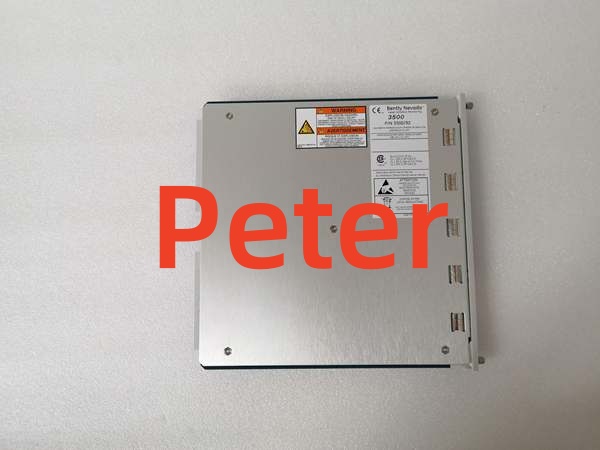

BENTLY NEVADA 136180-01
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage or connector corrosion.
- Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability.
- Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity is also strictly checked.
- Firmware Verification: We read and record internal firmware versions. DIP switch and jumper settings are photographed for future reference.
- Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.
Replacement Pitfall Guide
❗ Assembly Confusion: The 136180-01 is strictly the main board. It must be paired with the 136188-02 terminal board to form a complete 3500/92 gateway. Ordering just this PWA requires transferring the terminal board from your failed unit.
❗ Protocol Limitations: This board handles Modbus TCP/RTU and Bently private protocols. If your DCS strictly requires EGD (Ethernet Global Data), you must use the 3500/91 gateway instead.
❗ IP Address Conflicts: This module does not support DHCP by default in older firmware. You must assign a static IP address that matches your plant network segment, or the gateway will remain isolated.
❗ Network Segregation: Never connect this module directly to the corporate IT network. Always place it behind a firewall or on a dedicated industrial VLAN to prevent broadcast storms from tripping the machinery protection system.
❗ ESD Damage: Use an anti-static mat during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.
Keep these in mind and you’ll cut 90% of rework time.

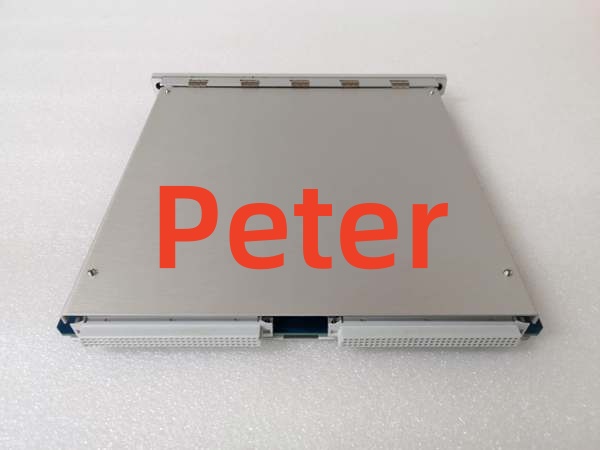

BENTLY NEVADA 136180-01
Compatibility Matrix & Benchmarks
- 136180-01 → 136188-02 : Companion — Main Board vs. Terminal/I/O Board
- 136180-01 → 3500/91 : Incompatible — Modbus Gateway vs. EGD Gateway
- 136180-01 → 3500/22M : Incompatible — External DCS Gateway vs. System 1 TDI
- Data Latency: < 20 ms (Modbus TCP Polling, simulated load)
- Comms Throughput: 100 Mbps (Auto-negotiate, Modbus TCP/RTU)
