Description
Product Core Brief
- Model: 135799-01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Acts as the Display Interface Module (DIM) to connect local or remote LCD screens to the 3500/93 monitor.
- Product Type: Display Interface Module
- Key Specs: 3500/93 Compatible | Local/Remote Screen Support | Data Visualization
- Note: Verify screen type and cable length requirements before installation.

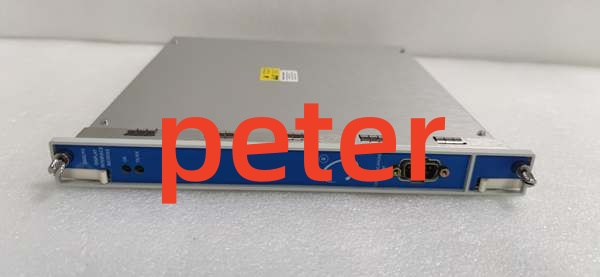

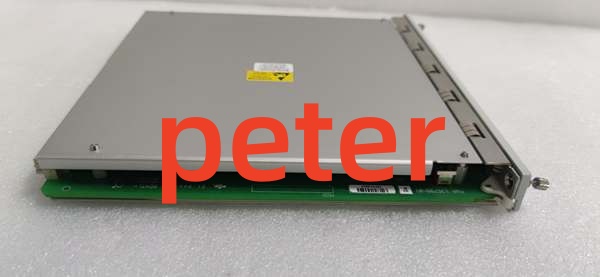

Bently Nevada 135799-01
Key Technical Specifications
- Compatible Monitor: 3500/93 System Display Screen Monitor
- Function: Display Interface Module (DIM)
- Display Support: Local and Remote LCD Screens
- Operating Temp: -30 °C to +65 °C (-22 °F to +150 °F)
- Storage Temp: -40 °C to +85 °C (-40 °F to +185 °F)
- Humidity: 95% non-condensing
- Mounting: 3500 Rack Backplane
- Safety: CE / CSA / ATEX / IECEx (verify specific cert on unit label)
Product Introduction
The Bently Nevada 135799-01 is a Display Interface Module designed for the 3500/93 system. It serves as the critical communication bridge between the 3500 rack and local or remote display screens, allowing operators to view real-time machinery parameters.
This module ensures reliable data transmission for visual monitoring of vibration, temperature, and position values. It simplifies operator interaction with the protection system without requiring constant access to configuration software.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Verify serial number traceability against OEM records; inspect PCB for rework, corrosion, or damaged display connectors; confirm anti-static packaging integrity.
- Live Testing: Install in 3500/93 test rack; verify OK LED status and backplane communication; connect test display to validate pixel rendering and data refresh rates.
- Electrical Testing: Measure insulation resistance (>10 MΩ at 500VDC); verify ground continuity <0.1 Ω; check display power rail stability.
- Firmware/Config Backup: Record exact firmware revision via 3500 Configuration Software; photograph all DIP switches and jumper settings before packing.
- Final QC & Packaging: Apply QC pass tag with test date; pack in OEM-spec anti-static bag with foam corner protectors; seal in individual box with documentation.

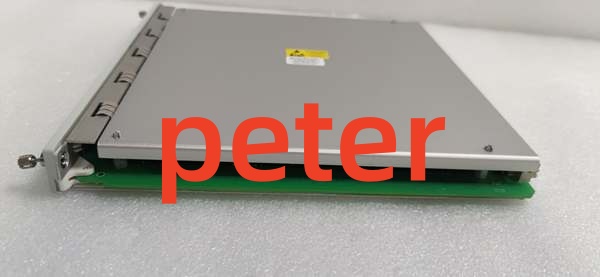

Bently Nevada 135799-01
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Mixing revisions in a 3500/93 slot can cause display communication failures or garbled text. Always match the exact revision of the replaced unit or update the entire frame via 3500 Configuration Software before commissioning.
❗ DIP Switch/Jumper Errors: Display addressing and communication settings are critical. Take a high-res photo of the old module’s jumper settings before removal. Incorrect addressing will cause the screen to show no data or data from the wrong channel.
❗ Wiring Incompatibilities: Display cables are proprietary and sensitive to noise. Do not use standard Ethernet or unshielded cables. Verify cable routing against the 3500/93 manual; running display cables parallel to VFD power lines will cause screen flicker.
❗ Power Draw Changes: This module draws power for both the backplane logic and the display output. Calculate total backplane load; exceeding power supply capacity causes intermittent screen resets.
❗ ESD Dangers: The display interface circuitry is extremely ESD-sensitive. A single static discharge can destroy the communication ICs. Always wear a grounded wrist strap connected to the rack chassis, not just the bench mat.
Replacement Procedure:
- Pre-install: Back up 3500/93 configuration; photograph jumpers; verify new unit revision matches.
- Removal: Power down frame (3500/93 is NOT hot-swappable); wait 60s for capacitor discharge; disconnect display cable; remove module.
- Install: Set jumpers per photo; seat module firmly; reconnect display cable; torque terminal screws to 0.5 Nm.
- Power-on Test: Apply power; verify OK LED; check 3500 Configuration Software for no faults; verify display shows correct live values.
FAQ (Frequently Asked Questions)
Q: Can I hot-swap the Bently Nevada 135799-01?
A: No. The 3500/93 Display Interface Module lacks hot-swap circuitry. Removing it under power will cause a backplane voltage disturbance, potentially corrupting the configuration of adjacent monitoring modules and risking arc damage to the backplane connector. Always perform a controlled frame shutdown.
Q: Why is my new module showing a blank screen?
A: Check the display cable connection first. Ensure the cable is fully seated and locked. Also verify the DIP switch settings match the display address. If using a remote display, check the cable length; exceeding the maximum specified length will cause signal degradation.
Q: Is this module interchangeable with the 135785-01?
A: No. The 135799-01 is the Display Interface Module (DIM) that handles communication. The 135785-01 is typically the display unit itself or a related component. Verify your exact part number against the BOM; they are not functionally identical.
Q: What happens if I lose power to this module during operation?
A: You lose local visual monitoring. The 3500/93 requires continuous power to drive the display. However, the core protection logic in the 3500 rack continues to operate independently. Always ensure redundant power supply configuration per API 670 for critical monitoring.
Q: How do I verify if this is a genuine Bently Nevada 135799-01?
A: Check for the Bently Nevada logo etched (not printed) on the PCB; verify the serial number matches the label; inspect solder joints for machine-wave consistency (hand-soldered joints indicate refurbishment or counterfeit). Request the OEM certificate of conformity from the supplier; reputable vendors provide traceability to the original Bently Nevada shipment.
Q: Can I use this module with third-party displays?
A: No. The 135799-01 uses a proprietary communication protocol specific to Bently Nevada 3500/93 displays. Third-party HMI panels will not be able to communicate with this module without a protocol gateway.
Q: What’s the warranty on replacement units?
A: Standard warranty is 12 months from shipment date, covering manufacturing defects and DOA conditions. Warranty does not cover ESD damage, overvoltage from incorrect wiring, or physical damage from improper installation. Always retain the QC test report and original packaging for warranty claims.
