Description
Product Core Brief
- Model: 135489-01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Provides 4-channel displacement/acceleration signal routing with an integrated internal safety barrier for the 3500/42M monitor.
- Product Type: Prox/Seismic I/O Module (with Internal Safety Barrier)
- Key Specs: Internal Safety Barrier | Internal Terminations | 4-Channel Displacement/Acceleration
- Note: Verify exact 3500/42M rear card compatibility before procurement.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Displacement/Acceleration I/O Module with Internal Safety Barrier |
| System Compatibility | Bently Nevada 3500/42M Monitor |
| Safety Feature | Integrated Internal Safety Barrier |
| Termination | Internal Terminations |
| Channel Capacity | 4 Channels (Displacement / Acceleration) |
| Function | Signal routing, isolation, and front-panel access |
| Form Factor | 3500 Front Card Assembly |
| Application | Vibration, displacement, and acceleration monitoring |
| Integration | Plug-and-play into 3500 rack backplane |

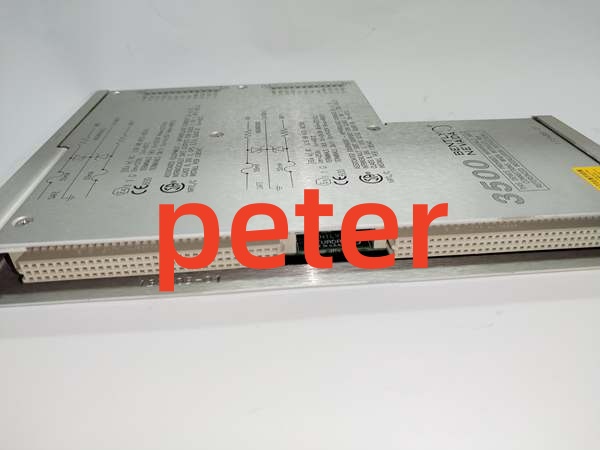

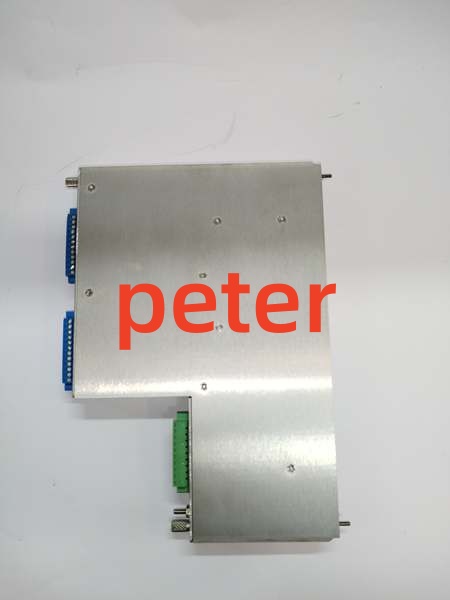

Bently Nevada 135489-01
Product Introduction
The 135489-01 is a specialized I/O module designed for the Bently Nevada 3500/42M Displacement/Velocity/Acceleration Monitor. It provides the physical interface for four channels of proximitors or seismic sensors while incorporating an internal safety barrier for intrinsic safety compliance in hazardous areas.
This module ensures reliable signal routing with built-in isolation protection. It simplifies field wiring by utilizing internal terminations, making it ideal for critical rotating machinery applications requiring precise vibration and displacement measurements in classified environments.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Verify part number 135489-01 against OEM documentation. Inspect the front-panel BNC connectors for physical damage or stripped threads. Check the PCB for cold solder joints or corrosion.
- Live Testing: Mate with a verified 3500/42M rear card in a test rack. Inject a calibrated vibration signal and verify accurate data reporting in System 1 software.
- Electrical Testing: Measure insulation resistance between BNC shield and signal pin (>10MΩ). Verify the internal safety barrier isolation resistance. Check grounding continuity across the chassis.
- Hardware Verification: Confirm all mounting standoffs and internal ribbon cable connections are secure. Inspect the mating connector pins for straightness and oxidation.
- Final QC & Packaging: Clean BNC connectors with approved contact cleaner. Package in anti-static shielding with desiccant. Attach QC pass tag with test date, signal verification results, and technician ID.

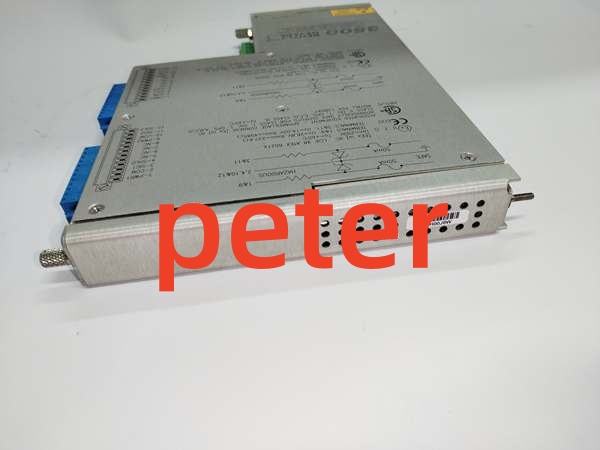

Bently Nevada 135489-01
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Rear Card Mismatch: The 135489-01 front card must match the specific revision of your 3500/42M rear card. Never mix incompatible front/rear card combinations. Doing so can cause signal routing errors, improper safety barrier functionality, or backplane communication failures. Always verify the rear card part number first.
❗ Safety Barrier Bypass: This module contains an internal safety barrier for hazardous area compliance. Never attempt to modify or bypass the barrier circuitry. Doing so will void ATEX/certifications and create a severe safety hazard in classified environments.
❗ BNC Connector Damage: The front-panel BNC connectors are highly sensitive to mechanical abuse. Never use excessive force when connecting or disconnecting sensor cables. Stripped threads or bent center pins are common field failures that require complete card replacement.
❗ Internal Ribbon Cable Stress: This front card connects to the rear processing card via an internal ribbon cable. When installing, ensure the ribbon cable is not pinched, folded, or stressed. A damaged ribbon cable causes intermittent signal loss that is nearly impossible to diagnose in the field.
❗ ESD Dangers: The safety barrier and signal conditioning circuits are extremely sensitive to electrostatic discharge. A static zap from an ungloved hand can destroy the input protection components without visible damage. Always wear a grounded wrist strap when handling this module.
Replacement Guide:
- Pre-install: Document existing sensor wiring and verify rear card compatibility. Disconnect all field cables from the front panel. Ground yourself.
- Removal: Remove the front panel mounting screws. Carefully separate the front card from the rear card, ensuring the internal ribbon cable is not damaged.
- Install: Align the new front card with the rear card connector. Press evenly until fully seated. Reinstall mounting screws and reconnect field cables.
- Power-on Test: Verify sensor signal quality in System 1 software. Check for proper gap voltage (prox) or signal level (seismic). Confirm no new alarms are active before returning to service.
FAQ (Frequently Asked Questions)
Q: Can I hot-swap this I/O module?
A: No. The 135489-01 does not support hot-swapping. Disconnecting the front card while the 3500/42M is powered will cause open-circuit conditions on the sensor inputs, potentially triggering false Danger alarms or damaging the safety barrier circuits. Always schedule a maintenance window and de-energize the module.
Q: What is the difference between 135489-01 and 128229-01?
A: The 135489-01 includes an internal safety barrier for intrinsic safety compliance in hazardous areas, while the 128229-01 is a standard I/O module without the safety barrier. Verify your installation’s hazardous area classification requirements before selecting the appropriate module.
Q: Why am I getting erratic gap voltage readings after replacement?
A: This is usually caused by improper BNC connector seating, damaged sensor cable, or a mismatched front/rear card combination. Verify the BNC connection is fully seated and locked. Check the sensor cable for damage. Confirm the front card part number matches your rear card revision exactly.
Q: Can I use this module in non-hazardous areas?
A: Yes. The internal safety barrier does not affect functionality in non-hazardous areas. The 135489-01 will operate identically to a standard I/O module, but with the added protection of the safety barrier circuitry.
Q: What happens if I lose the BNC connector threads?
A: Do not attempt to repair stripped BNC threads with tape or adapters. This creates an unreliable connection that will fail under vibration. Replace the entire 135489-01 front card. Field repairs on BNC connectors are not supported and will compromise signal integrity and safety barrier performance.
Q: Is this part still manufactured by Bently Nevada?
A: The 3500 system remains an active product line, and the 135489-01 is a standard component. However, always verify current OEM availability and lead times. For legacy installations, New Original or New Surplus inventory is typically available through authorized distributors.
Q: Why does my sensor signal have excessive noise after installing this card?
A: Check for ground loops, improper cable shielding, or EMI interference. Verify that the BNC shield is properly grounded at the front panel. Ensure sensor cables are routed away from VFDs and high-current conductors. Also verify that the internal ribbon cable is properly seated and not damaged.
