Product Core Brief
- Model: 125680-01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Interfaces Proximitor sensors with the 3500/40M monitor to process radial vibration, axial displacement, and eccentricity signals.
- Product Type: Proximitor I/O Module
- Key Specs: 4-Channel Input | 24 VDC Operation | ±0.33% Accuracy
- Note: Verify sensor compatibility (e.g., 3300 XL 8mm) and channel configuration before installation.
Key Technical Specifications
- Input Channels: 4 independent channels
- Compatible Monitor: 3500/40M Proximitor I/O Module
- Sensor Type: Bently Nevada Proximitor (Eddy Current)
- Operating Voltage: 24 VDC
- Sensitivity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
- Accuracy: ±0.33% of full scale (max ±1%)
- Operating Temp: -30 °C to +65 °C (-22 °F to +150 °F)
- Humidity: 0% to 95% non-condensing
- Outputs: 4-20 mA recorder outputs, buffered sensor outputs
- Certifications: CE, CSA, ATEX, IECEx (verify specific cert on unit label)
Bently Nevada 125680-01
Product Introduction

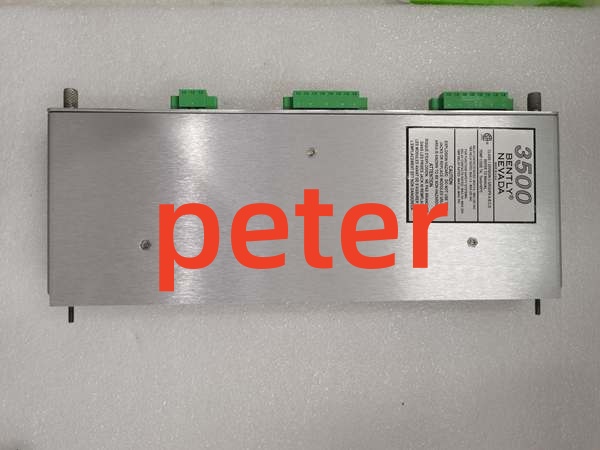

The Bently Nevada 125680-01 is a Proximitor I/O module designed for the 3500/40M displacement monitor. It receives raw signals from eddy current sensors and conditions them for accurate vibration and position measurement in rotating machinery.
This module supports paired channel configuration for simultaneous radial vibration and axial displacement monitoring. Its integrated buffering and signal processing ensure reliable data for machinery protection systems, enabling early fault detection and preventing catastrophic equipment failure.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Verify serial number against Bently Nevada records; inspect PCB for corrosion, rework, or damaged connectors; confirm anti-static packaging integrity.
- Live Testing: Power-on in 3500/40M test rack; verify OK LED status and backplane communication; run 24-hour burn-in with simulated sensor inputs to check for thermal drift.
- Electrical Testing: Measure insulation resistance (>10 MΩ at 500VDC); verify ground continuity <0.1 Ω; check 24 VDC input fuse and power rail stability.
- Firmware/Config Backup: Record exact firmware revision via 3500 Configuration Software; photograph all DIP switches and jumper settings before packing.
- Final QC & Packaging: Apply QC pass tag with test date; pack in OEM-spec anti-static bag with foam corner protectors; seal in individual box with documentation.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Mixing revisions in a 3500/40M slot can cause communication errors or incorrect alarm setpoints. Always match the exact revision of the replaced unit or update the entire frame via 3500 Configuration Software before commissioning.
❗ DIP Switch/Jumper Errors: Channel configuration and sensitivity settings are critical. Take a high-res photo of the old module’s jumper settings before removal. Incorrect sensitivity selection (100 vs 200 mV/mil) will cause false alarms or missed trips.

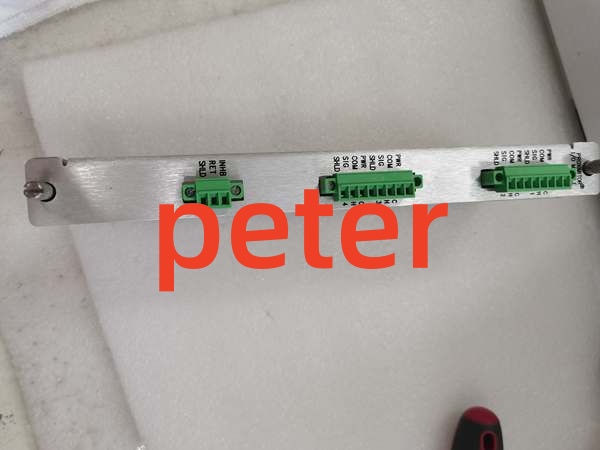

❗ Wiring Incompatibilities: Pinouts differ between Proximitor I/O modules and other 3500 I/O cards. Do not assume wire-for-wire compatibility. Verify terminal block labeling against the 3500/40M manual, not generic 3500 documentation.
❗ Power Draw Changes: This module draws specific current from the 24 VDC rail. Calculate total backplane load including all I/O modules; exceeding power supply capacity causes intermittent resets during alarm conditions.
❗ ESD Dangers: The Proximitor input stage is extremely ESD-sensitive. A single static discharge can destroy the $2,000+ input circuitry. Always wear a grounded wrist strap connected to the rack chassis, not just the bench mat.
Replacement Procedure:
- Pre-install: Back up 3500/40M configuration; photograph jumpers; verify new unit revision matches.
- Removal: Power down frame (3500/40M is NOT hot-swappable); wait 60s for capacitor discharge; remove module.
- Install: Set jumpers per photo; seat module firmly; torque terminal screws to 0.5 Nm.
- Power-on Test: Apply 24 VDC; verify OK LED; check 3500 Configuration Software for no faults; run self-test and verify sensor readings.
Bently Nevada 125680-01
FAQ (Frequently Asked Questions)
Q: Can I hot-swap the Bently Nevada 125680-01?
A: No. The 3500/40M Proximitor I/O module lacks hot-swap circuitry. Removing it under power will cause a backplane voltage disturbance, potentially corrupting the configuration of adjacent monitoring modules and risking arc damage to the backplane connector. Always perform a controlled frame shutdown.
Q: Why is my new module showing a “Sensor Fail” alarm?
A: Check the sensor sensitivity configuration first. If the module is set to 100 mV/mil but you’re using a 200 mV/mil sensor, the signal will be out of range. Also verify the Proximitor cable and extension cable are intact; a shorted or open circuit will trigger this alarm immediately.
Q: Is this module interchangeable with the 3500/42M I/O module?
A: No. The 125680-01 is specifically engineered for the 3500/40M displacement monitor. The 3500/42M uses different I/O modules for velocity and acceleration sensors. Forcing the wrong module into the slot will not work and may damage the backplane.
Q: What happens if I lose 24 VDC power to this module during operation?
A: You lose all monitoring and protection. The 3500/40M requires continuous 24 VDC to process sensor signals and drive relays. There is no battery backup for I/O modules. If power loss is a known risk, install a redundant power supply configuration per API 670 recommendations.
Q: How do I verify if this is a genuine Bently Nevada 125680-01?
A: Check for the Bently Nevada logo etched (not printed) on the PCB; verify the serial number matches the label; inspect solder joints for machine-wave consistency (hand-soldered joints indicate refurbishment or counterfeit). Request the OEM certificate of conformity from the supplier; reputable vendors provide traceability to the original Bently Nevada shipment.
Q: Can I use this module with non-Bently sensors?
A: Technically yes, but not recommended. The module is calibrated for Bently Nevada Proximitor systems. Third-party sensors may have different sensitivity, impedance, or frequency response characteristics that will cause measurement errors. Always use OEM sensors for API 670 compliance.
Q: What’s the warranty on replacement units?
A: Standard warranty is 12 months from shipment date, covering manufacturing defects and DOA conditions. Warranty does not cover ESD damage, overvoltage from incorrect wiring, or physical damage from improper installation. Always retain the QC test report and original packaging for warranty claims.
