Description
Product Core Brief
- Model: 3500/92-02-01-00
- Brand: BENTLY NEVADA
- Series: 3500 Machinery Protection System
- Core Function: Bridges 3500 rack data to external DCS, SCADA, and control systems.
- Product Type: Communication Gateway Module
- Key Specs: Modbus RS485 I/O | 136180-01 Main Board | 5.6 W Power
- Condition: New Original (New Surplus)

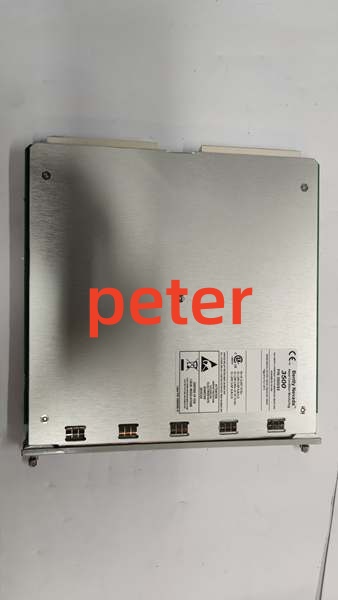

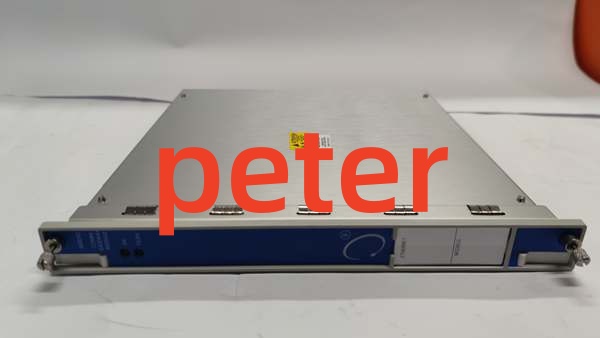

BENTLY 3500/92-02-01-00
Product Introduction
BENTLY 3500/92-02-01-00 is a communication gateway module designed for the 3500 Machinery Protection System. It provides a dedicated serial interface to exchange real-time status, alarm, and measurement data with external control networks.
Unlike the Ethernet-focused 3500/92-04, this specific unit utilizes a Modbus RS485 I/O board (133323-01). It acts as a central bridge, allowing your DCS to read vibration data or write alarm reset commands directly via standard serial protocols.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Communication Gateway |
| Complete Part Number | 3500/92-02-01-00 |
| Main Board PWA | 136180-01 |
| I/O Board PWA | 133323-01 (Modbus RS485) |
| Primary Protocol | Modicon Modbus (Serial) |
| Network Interface | RS485 Serial Port |
| Power Consumption | 5.6 W (Typical for RS485) |
| Installation Slot | Dedicated Communication Slot |
| Data Exchange | Full Rack Parameter Read Access |
| Front Panel LEDs | OK, TX/RX Status |
| Compliance | IEEE 802.3, API 670 |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage or connector corrosion.
- Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability.
- Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity is also strictly checked.
- Firmware Verification: We read and record internal firmware versions. DIP switch and jumper settings are photographed for future reference.
- Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.
BENTLY 3500/92-02-01-00
Replacement Pitfall Guide
❗ I/O Board Mismatch: The -02- option strictly denotes a Modbus I/O module. Do not substitute this with a -01- (RS232/RS422) or -04- (Ethernet/) unless you have verified your field cabling and DCS master port compatibility.
❗ Modbus Register Mapping: Data exchange is not automatic. You must explicitly configure the Modbus register map in the 3500 software to expose specific tags (e.g., Vibration 1X, Alarm Status) to the DCS master.
❗ Serial Termination: networks require proper termination. Ensure the final device on the bus has the termination resistor enabled to prevent signal reflections and communication dropouts.
❗ Network Segregation: Never connect this module directly to the corporate IT network. Always place it behind a firewall or on a dedicated industrial VLAN to prevent broadcast storms from tripping the machinery protection system.
❗ ESD Damage: Use an anti-static mat during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- 3500/92-02-01-00 → 3500/92-04-01-00 : Needs Adaptation — Serial vs. Ethernet/ Hybrid
- 3500/92-02-01-00 → 3500/92-01-01-00 : Needs Adaptation — vs. RS232/RS422 I/O
- 3500/92-02-01-00 → 3500/91 : Incompatible — Modbus Serial Gateway vs. EGD Ethernet Gateway
- Data Latency: < 20 ms (Modbus RTU Polling, simulated load)
- Comms Throughput: Standard Serial Baud Rate (Modbus RTU)
