Description
Product Core Brief
- Model: 3500/91-01-01 (Assembly: 161204-01 + 161216-01)
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Provides Ethernet communication gateway between the 3500 rack and external networks for data exchange.
- Product Type: Communication Gateway / Ethernet I/O Module
- Key Specs: 10BASE-T/100BASE-TX | RJ-45 & MT-RJ Interfaces | 7.4W Power
- Condition: New Original (New Surplus)

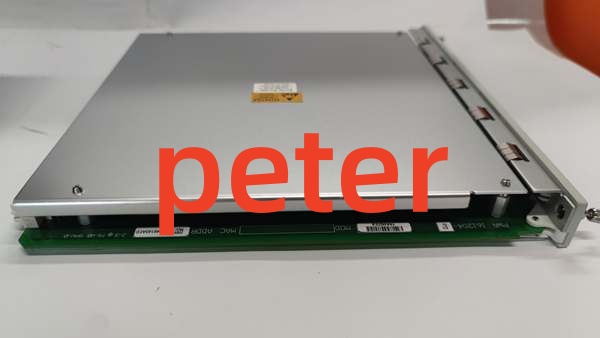

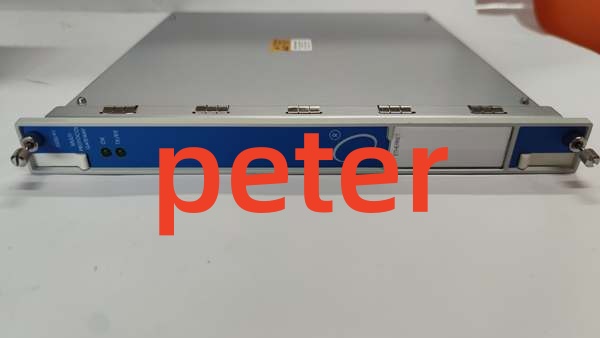

BENTLY 3500/91-01-01
Product Introduction
BENTLY 3500/91-01-01 is a communication gateway module designed for the Bently Nevada 3500 Machinery Protection System. This assembly consists of two components: the 3500/91 base module (161204-01) and the Ethernet I/O module (161216-01), which together provide the critical communication link between the 3500 rack and external plant networks.
The 161216-01 Ethernet module supports both 10BASE-T/100BASE-TX copper connections via RJ-45 and 100BASE-FX fiber optic connections via MT-RJ. It enables the 3500 system to transmit monitoring data, alarm status, and configuration information to host systems such as DCS, SCADA, or dedicated condition monitoring software. The module features front panel LEDs for normal operation and transmit/receive activity indication, providing immediate visual status feedback.
Key Technical Specifications
- Module Type: Communication Gateway with Ethernet I/O
- Assembly Components: 161204-01 (3500/91 Base) + 161216-01 (Ethernet I/O)
- Communication Protocol: 10BASE-T/100BASE-TX Ethernet (Auto-adaptive)
- Physical Interfaces: RJ-45 (Copper), MT-RJ (Fiber Optic 100BASE-FX)
- Typical Power Consumption: 7.4 Watts
- Indicators: Normal LED (Module OK), TX/RX LED (Communication Activity)
- Operating Temperature: -30°C to +65°C (-22°F to +150°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: 95% Non-condensing
- Software Requirements: 3500 Rack Configuration Software
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Trace source via serial number. Verify both 161204-01 and 161216-01 are matched as a set. Inspect RJ-45 and MT-RJ connectors for physical damage.
- Visual Inspection: Verify Normal and TX/RX LED indicators and module seating alignment.
- Live Functional Test: Install in rack. Verify Normal LED illuminates and communication with RIM/TDI is established.
- Network Communication Test: Connect via Ethernet to host PC. Verify successful network handshake and data polling capability.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with date.

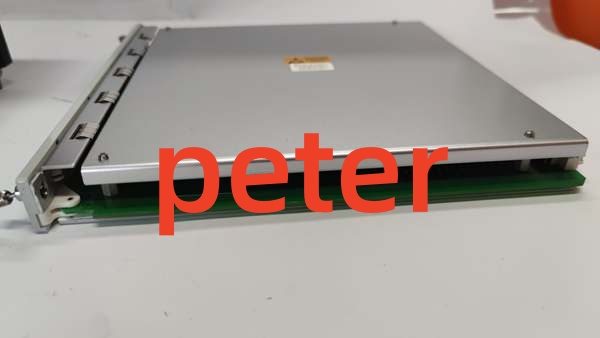

BENTLY 3500/91-01-01
Replacement Pitfall Guide
❗ Assembly Matching: The 3500/91-01-01 is a two-piece assembly. The 161204-01 base module and 161216-01 Ethernet I/O module must be used together. Do not mix with other I/O module variants.
❗ Interface Selection: The 161216-01 supports both copper (RJ-45) and fiber (MT-RJ) connections. Ensure you select the correct physical interface for your network infrastructure. Using the wrong cable type will prevent communication.
❗ Power Budget: With a typical power consumption of 7.4 Watts, ensure your 3500 rack power supply has adequate capacity to support this module along with other installed cards.
❗ Environmental Limits: The module is rated for -30°C to +65°C operation. If installed in environments exceeding these limits, additional cooling or heating may be required to prevent module failure.
❗ Network Configuration: The module requires proper IP address configuration via the 3500 Rack Configuration Software. Ensure network settings match your plant’s network architecture before commissioning.
❗ Protection Path Independence: While critical for data communication, the communication gateway is not part of the critical protection path. A communication module failure will not cause machinery protection relays to trip.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- 3500/91-01-01 → 3500/92 : Alternative — Use 3500/92 for different communication protocol requirements
- 3500/91-01-01 → 3500/22M : Complementary — Both provide rack communication; use one or the other per rack
- 3500/91-01-01 → 3500/20 : Alternative — Standard RIM without Ethernet gateway capability
Benchmarks:
- Ethernet Link Negotiation: Auto-negotiates 10/100 Base-TX
- Network Response Time: < 100 ms for data polling
- Power Consumption: 7.4 Watts (typical)
