Product Core Brief
- Model: 3500/62
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Monitors continuous mechanical parameters such as pressure, flow rate, temperature, and level.
- Product Type: 6-Channel Process Variable Monitor
- Key Specs: 6 Channels | 4-20mA & -10 to +10Vdc Inputs | Programmable Alarms
- Condition: New Original (New Surplus)

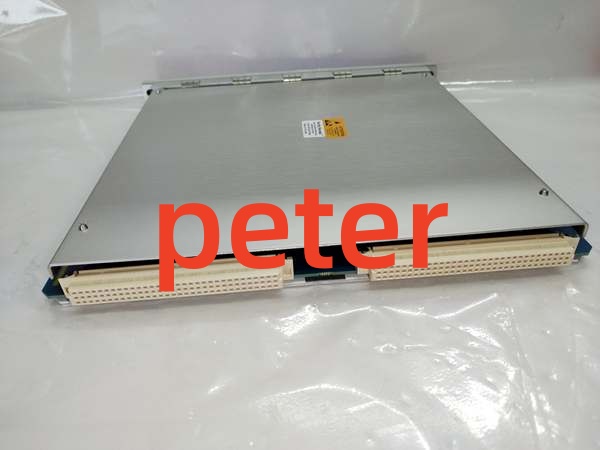

BENTLY 3500/62
Product Introduction
BENTLY 3500/62 is a six-channel process variable monitor designed for the Bently Nevada 3500 Machinery Protection System. It is specifically engineered to monitor key mechanical parameters that require continuous tracking, including pressure, flow rate, temperature, and level.
This module accepts a current input of +4 to +20mA and a voltage proportional value input within the range of -10 to +10Vdc. It processes these signals and continuously compares them against user-programmable alarm setpoints to initiate alarms and protect the machinery. The 3500/62 can be programmed using the 3500 rack configuration software to perform voltage or current measurements, and provides corresponding I/O modules based on different signal input forms (including options with intrinsic safety Zener barriers).
Key Technical Specifications
- Module Type: 6-Channel Process Variable Monitor
- Form Factor: Full-Height
- Channels: 6 Independent Process Monitoring Channels
- Input Signals: +4 to +20mA current input; -10 to +10Vdc voltage proportional input
- I/O Module Options: +/- 10 V DC, insulated 4-20mA, and 4-20mA with intrinsic safety Zener barriers
- Outputs: Digital alarm outputs (Alert/Danger) based on configured setpoints
- Software Requirements: 3500 Rack Configuration Software
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Trace source via serial number. Inspect front panel connectors and rear I/O module connections for physical damage.
- Visual Inspection: Verify module seating alignment and check for any PCB corrosion or flux residue.
- Live Functional Test: Install in rack. Verify communication with RIM/TDI and confirm “OK” LED illuminates.
- Signal Path Test: Inject simulated 4-20mA or 0-10Vdc signal. Verify accurate process variable calculation and alarm triggering in software.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with date.

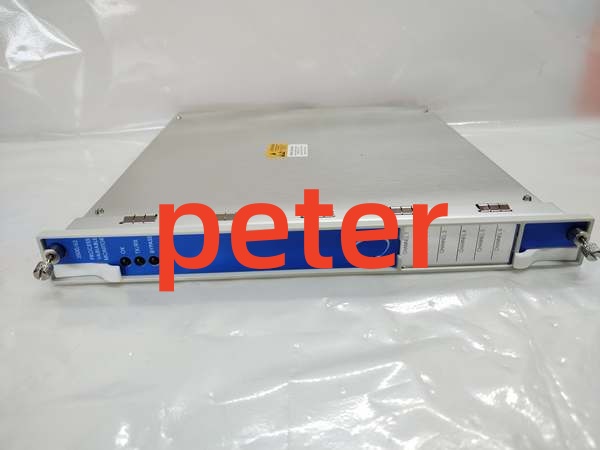

BENTLY 3500/62
Replacement Pitfall Guide
❗ Input Signal Type: Ensure the I/O module suffix matches your field instrumentation. The 3500/62 supports multiple I/O modules for different signal types (e.g., standard vs. isolated vs. intrinsic safety). Using the wrong I/O module can damage the card or provide inaccurate readings.
❗ Intrinsic Safety: If using the 4-20mA I/O module with an internal Zener barrier, note that it has external power input terminals to provide intrinsically safe power for 4-20mA sensors. Verify your hazardous area classification requirements.
❗ Factory Unconfigured: When shipped from the factory, the 3500/62 module is unconfigured. It must be installed into a 3500 framework and programmed using the 3500 Rack Configuration Software to define channel types, scaling, and alarm setpoints.
❗ TMR Configuration: If used in a Triple Modular Redundant (TMR) configuration, three 3500/62 modules must be installed in adjacent slots. The system will employ voting logic to ensure accurate operation and avoid single-point failures.
❗ Recorder Outputs: Verify whether your application requires 4-20mA recorder outputs. If so, confirm that the selected I/O module variant supports this feature, as not all process variable monitor variants include analog outputs.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- 3500/62 → 3500/60 : Alternative — Use 3500/60 for dedicated RTD/Thermocouple temperature monitoring
- 3500/62 → 3500/22M : Complementary — Requires TDI module for rack communication
- 3500/62 → 3500/33 : Complementary — Drives relay logic for process variable trips
Benchmarks:
- Alarm Setpoint Accuracy: Within 0.13% of desired value
- Supported Current Input: +4 to +20mA
- Supported Voltage Input: -10 to +10Vdc
