Description
Product Core Brief
- Model: 3500/60 163179-01
- Brand: BENTLY NEVADA
- Series: 3500 Machinery Protection System
- Core Function: Monitors six independent channels of RTD and thermocouple temperature inputs.
- Product Type: 6-Channel Temperature Monitor
- Key Specs: 6 Channels | RTD/TC Input | 9 W Power Consumption
- Condition: New Original (New Surplus)

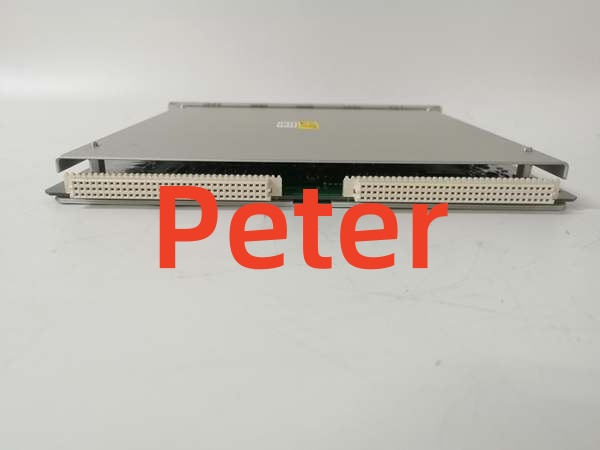

BENTLY 3500/60 163179-01
Product Introduction
BENTLY 3500/60 163179-01 is a 6-channel temperature monitor designed for the 3500 Machinery Protection System. It accepts resistance temperature detectors (RTD) and thermocouple (TC) inputs to measure thermal parameters.
Unlike the 3500/61, this specific module lacks individual recorder outputs for each channel. It conditions the thermal inputs and compares them against user-programmable alarm setpoints via the 3500 rack configuration software.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | 6-Channel Temperature Monitor |
| Front Panel PWA | 163179-01 |
| Supported Inputs | RTD and Thermocouple (TC) |
| Channel Count | 6 Independent Channels |
| Power Consumption | 9 W |
| Operating Temperature | -30 °C to +65 °C |
| Input Impedance | >10 MΩ per lead input |
| Configuration Tool | 3500 Rack Configuration Software |
| Compliance | API 670 |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage or connector corrosion.
- Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability.
- Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity is also strictly checked.
- Firmware Verification: We read and record internal firmware versions. DIP switch and jumper settings are photographed for future reference.
- Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.
Replacement Pitfall Guide
❗ Recorder Output Mismatch: The 3500/60 does not provide recorder outputs. If your system requires analog recorder outputs for all six channels, you must upgrade to the 3500/61 module.
❗ I/O Board Isolation Types: Verify whether your application requires isolated or non-isolated I/O. TC isolated versions provide 250 Vdc channel-to-channel isolation to prevent external interference, whereas non-isolated versions accept mixed TC/RTD inputs.
❗ TMR Installation Rules: If deploying this module in a Triple Modular Redundancy (TMR) configuration, you must install three identical temperature monitors adjacent to each other. The system uses dual voting to prevent single-point failures.
❗ High-Temp Range Limitation: If the rack environment exceeds +35 °C and you use isolated TC I/O with Type E thermocouples, the full-scale range is reduced to -60 °C to +1000 °C. Never configure channels below -100 °C in this state.
❗ ESD Damage: Use an anti-static mat during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.
Keep these in mind and you’ll cut 90% of rework time.
BENTLY 3500/60 163179-01
Compatibility Matrix & Benchmarks
- 3500/60 163179-01 → 3500/61 : Needs Adaptation — Standard Temp Monitor vs. Recorder Output Version
- 3500/60 163179-01 → 3500/62 : Incompatible — Temperature Monitor vs. Process Variable Monitor
- 3500/60 163179-01 → 3500/32M : Companion — Relay module for executing thermal trip logic
- Scan Cycle: < 1 ms (simulated load, 6 I/O points)
- Comms Throughput: Backplane interface (Modbus TCP via 3500/22M TDI)
