Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | 3500/53 133388-01 |
| Manufacturer | Bently Nevada |
| Product category | Machinery Protection System Transient Data Monitor |
| Channel configuration | 4 monitoring channels (supports vibration, position, and speed measurements) |
| Sampling rate | Up to 12,800 samples per second per channel |
| Data capture capacity | 16 MB non-volatile memory for transient data storage |
| Frequency range | 0.1 Hz to 10 kHz |
| Accuracy | ±0.5% of full scale |
| Operating voltage | 5 VDC, ±15 VDC (from 125744-02 rack backplane) |
| Power consumption | 9 W typical, 12 W maximum |
| Operating temperature | 0°C to +60°C (32°F to +140°F) |
| Form factor | 3500 system rack mount (2 slot width) |
| Dimensions | 266 mm (H) × 72 mm (W) × 229 mm (D) (10.5″ × 2.8″ × 9.0″) |
| Compatibility | 125744-02 racks, 136180-01 configuration modules, 136711-01 cables |
| Certification | UL, CE, RoHS compliant, IEC 61010-1 approved |

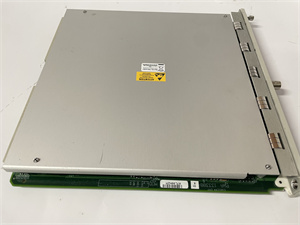

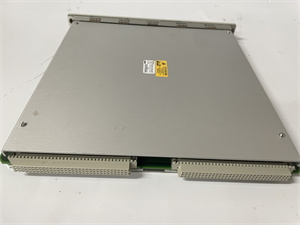

BENTLY 3500/53 133388-01
Product introduction
The 3500/53 133388-01 from Bently Nevada is a high-performance transient data monitoring module designed to capture and analyze dynamic machinery behavior in 3500 Machinery Protection Systems. This 2-slot module specializes in recording high-resolution transient events—such as startup/shutdown sequences, load changes, and fault conditions—that provide critical insights into machinery health beyond standard continuous monitoring. Bently Nevada’s 3500/53 133388-01 acts as a specialized data acquisition system within the 3500 ecosystem, working in concert with 136180-01 configuration modules to capture time-sensitive machinery data that supports advanced diagnostic analysis.
As a key component in predictive maintenance strategies, the 3500/53 133388-01 module bridges the gap between continuous protection monitoring and detailed diagnostic analysis. It captures high-fidelity transient data from sensors connected via 136711-01 cables, storing this information for post-event analysis while simultaneously feeding real-time data to the protection system. This dual functionality makes it indispensable for identifying intermittent issues, tracking machinery degradation over time, and validating the effectiveness of maintenance interventions in critical industrial applications.
Core advantages and technical highlights
High-speed transient capture: The 3500/53 133388-01 features a 12,800 samples per second sampling rate per channel, enabling it to capture high-frequency vibration components and rapid machinery events that standard monitoring systems might miss. This capability is critical for detecting early-stage bearing faults, gear mesh issues, and other dynamic anomalies that manifest in transient conditions.
Event-triggered recording: Equipped with configurable trigger mechanisms, the module can automatically capture transient data when predefined conditions are met—such as exceeding alarm thresholds, detecting machinery startup, or receiving an external trigger signal. This intelligent recording capability ensures that critical events are captured without requiring continuous high-speed data storage, optimizing memory usage while preserving essential diagnostic information.
Comprehensive data storage: With 16 MB of non-volatile memory, the 3500/53 133388-01 can store extended transient records for later analysis. The memory retains data through power cycles, ensuring that pre-shutdown or fault event data is preserved for post-incident investigation—valuable for determining root causes of machinery issues.
Seamless system integration: The module integrates fully with the 3500 ecosystem through the 125744-02 rack backplane, receiving configuration parameters from 136180-01 modules and sharing data with 140734-01 communication gateways. This integration allows transient data to be incorporated into both real-time protection logic and historical trending analysis, providing a complete picture of machinery health.
Typical application scenarios
In power generation facilities, 3500/53 133388-01 modules installed in turbine protection racks capture critical transient data during startup and shutdown sequences. Configured via 136180-01 modules, they record vibration signatures as turbines accelerate through critical speeds, capturing resonance conditions that could indicate emerging issues. This data is invaluable for comparing startup behavior over time, identifying subtle changes that precede machinery faults, and optimizing startup procedures to minimize mechanical stress.
Oil and gas compressor stations utilize 3500/53 133388-01 to monitor transient conditions during load changes and surge events. The module captures high-resolution vibration data from compressor bearings connected via 136711-01 cables, storing pre- and post-event records that help diagnose surge causes and assess machinery damage. Its integration with 125712-01 I/O modules allows correlation of transient vibration with process parameters like discharge pressure and flow rate.
Manufacturing plants deploy 3500/53 133388-01 on critical production line machinery such as large motors and gearboxes. The module captures transient data during equipment startups, stops, and load variations, helping maintenance teams identify alignment issues, bearing defects, or lubrication problems that manifest during these dynamic conditions. Configured through 136180-01 interfaces, it provides the detailed diagnostic data needed to schedule maintenance before unexpected failures disrupt production.

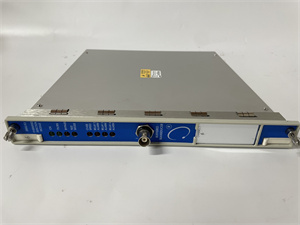

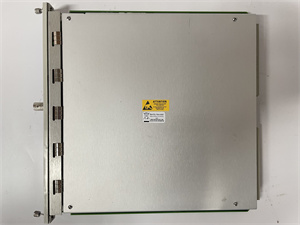

BENTLY 3500/53 133388-01
Related model recommendations
136180-01: Configuration module that programs and monitors 3500/53 133388-01.
125744-02: Rack assembly that houses and powers the 3500/53 133388-01 module.
136711-01: Vibration sensor cable providing input to 3500/53 133388-01.
140734-01: Communication gateway that transmits data from 3500/53 133388-01.
3500/60 163179-01: Display module that visualizes transient data from 3500/53 133388-01.
125712-01: I/O module whose process data complements 3500/53 133388-01 measurements.
3500 System Configuration Software: Tool for setting up transient capture parameters in 3500/53 133388-01.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing 3500/53 133388-01, verify compatibility with the target 125744-02 rack firmware version and ensure two adjacent slots are available. Confirm the system power supply can accommodate the 12 W maximum load. Gather required tools including torque screwdriver, oscilloscope (for calibration verification), and configuration laptop with 3500 software. Inspect the module for shipping damage, particularly checking input connectors and backplane pins.
Maintenance suggestions: Include 3500/53 133388-01 in quarterly system inspections, verifying status LEDs indicate normal operation and checking memory usage levels. Download and archive transient data regularly to prevent memory overflow. During scheduled maintenance, verify trigger settings and calibration using the configuration software (via 136180-01 interfaces). Clean input connectors annually with approved electronic contact cleaner. Update firmware during major system upgrades to ensure compatibility with latest 136180-01 configuration features.
Service and guarantee commitment
Bently Nevada provides the 3500/53 133388-01 with a 36-month warranty covering manufacturing defects and performance issues under normal operating conditions, including transient capture accuracy, memory functionality, and communication capabilities. Our technical support team offers expert guidance on configuration, trigger setup, and data analysis integration with 136180-01 modules and other system components.
We offer specialized training on transient data analysis, module programming, and diagnostic interpretation specific to the 3500/53 133388-01. Beyond the warranty period, our service agreements include technical support, calibration verification, and expedited replacement services to minimize downtime. Bently Nevada’s commitment to quality ensures reliable performance throughout its operational lifecycle, backed by our global network of service professionals.
