Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | 3500/34 125696-01 |
| Manufacturer | Bently Nevada |
| Product category | Machinery Protection System Dynamic Pressure Monitor |
| Monitoring channels | 4 independent pressure channels |
| Input type | Piezoelectric pressure transducers, charge amplifiers |
| Measurement range | 0-50,000 psi (0-345 MPa) |
| Frequency range | 0.1 Hz to 10 kHz |
| Accuracy | ±0.1% of full scale |
| Alarm capability | Configurable dual alarm levels per channel (Alert, Danger) |
| Update rate | 100 Hz per channel |
| Communication interface | 3500 system backplane, integrated with 3500/53 133388-01 |
| Operating voltage | 5 VDC, ±15 VDC (from 3500/15 133292-01 power supply) |
| Power consumption | 8 W typical, 10 W maximum |
| Operating temperature | 0°C to +60°C (32°F to +140°F) |
| Form factor | 3500 system rack mount (2 slot width) |
| Dimensions | 266 mm (H) × 72 mm (W) × 229 mm (D) (10.5″ × 2.8″ × 9.0″) |
| Compatibility | 3500/15 133292-01 power supplies, 3500/60 163179-01 displays |
| Certification | UL, CE, RoHS compliant, IEC 61010-1 approved |

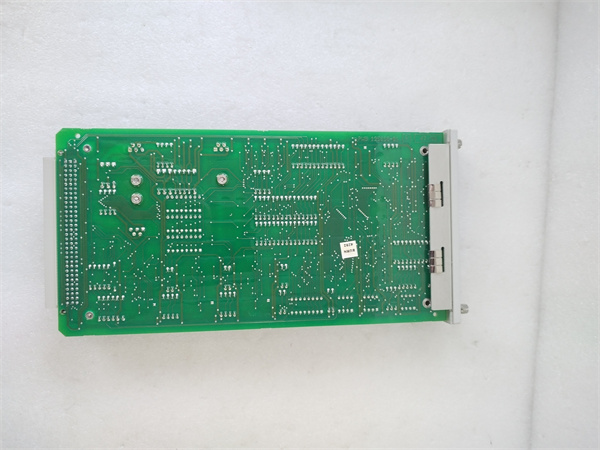

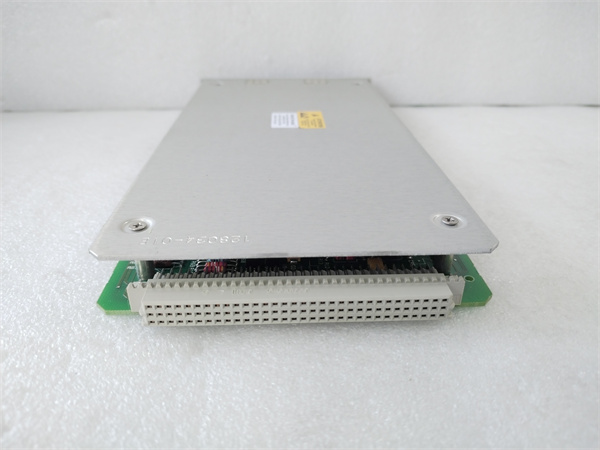

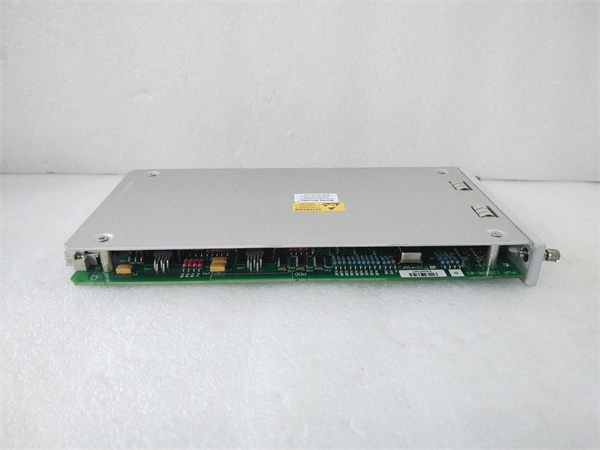

BENTLY 3500/34 125696-01
Product introduction
The 3500/34 125696-01 from Bently Nevada is a specialized dynamic pressure monitoring module designed for the 3500 Machinery Protection System, focusing on capturing high-speed pressure fluctuations in critical industrial processes. This 2-slot rack-mounted module serves as a precision tool for monitoring pressure-related phenomena in rotating machinery and process systems, providing essential data through its four configurable channels optimized for dynamic pressure measurements.
Unlike general-purpose pressure monitors, 3500/34 125696-01 is engineered to detect rapid pressure transients that indicate machinery issues such as cavitation, surge, or combustion instability. It seamlessly integrates with power supply modules like the 3500/15 133292-01 for reliable operation and with display modules such as 3500/60 163179-01 for real-time visualization, creating a specialized monitoring solution for pressure-critical applications.
In industrial monitoring ecosystems, 3500/34 125696-01 plays a vital role in detecting pressure-related faults that can cause machinery damage or process inefficiencies. By continuously monitoring dynamic pressure signatures and correlating them with vibration and position data from other modules, it enables operators to identify issues like compressor surge, pump cavitation, or fuel injector problems before they lead to catastrophic failures in power generation, oil and gas, and chemical processing industries.
Core advantages and technical highlights
High-speed pressure transient capture: 3500/34 125696-01 is optimized for capturing rapid pressure fluctuations with a wide frequency range (0.1 Hz to 10 kHz), making it ideal for detecting dynamic events like compressor surge, water hammer, or combustion instability. This capability surpasses standard pressure transmitters, which typically focus on steady-state measurements, allowing the module to identify transient pressure patterns that signal emerging machinery issues.
Precision measurement capability: The module delivers exceptional ±0.1% full-scale accuracy across its 0-50,000 psi range, ensuring reliable detection of subtle pressure variations that indicate early-stage problems. This precision is critical for applications like gas turbine combustion monitoring, where small pressure fluctuations can precede flame instability or component damage. The 100 Hz update rate ensures that rapid pressure changes are captured and analyzed in real time.
Integrated transient analysis: 3500/34 125696-01 includes specialized signal processing features for analyzing pressure transients, including peak detection, pulse counting, and spectral analysis of pressure waveforms. These capabilities help distinguish between normal operational pressure variations and abnormal patterns that indicate machinery issues. The module can trigger transient data capture in 3500/22M 138607-01 modules, preserving detailed pressure waveforms for post-event analysis.
System-wide synchronization: Designed for the 3500 architecture, the module maintains precise timing synchronization with other system components, including vibration monitors and position sensors. This synchronization, powered reliably by 3500/15 133292-01, enables accurate correlation between pressure transients and mechanical vibrations, supporting root cause analysis of complex issues where pressure changes and mechanical behavior are interrelated.
Typical application scenarios
In gas turbine power plants, 3500/34 125696-01 modules monitor combustion chamber pressure fluctuations, detecting the early signs of flame instability or fuel injector problems. The module’s high-speed sampling captures pressure oscillations that precede combustion dynamics issues, triggering alarms displayed on 3500/60 163179-01 screens. By correlating these pressure data with turbine vibration measurements, operators can address combustion issues before they cause hot section damage, supported by reliable power from 3500/15 133292-01.
Oil and gas compressor stations utilize 3500/34 125696-01 to monitor discharge and suction pressure transients in centrifugal compressors, detecting surge conditions before they cause mechanical damage. The module identifies the characteristic pressure oscillations of incipient surge, enabling proactive adjustment of anti-surge valves. Its integration with the 3500 system allows pressure data to be combined with vibration measurements, providing a complete picture of compressor health during transient operations.
Chemical processing facilities employ 3500/34 125696-01 to monitor high-pressure pump systems, tracking pressure fluctuations that indicate cavitation, valve issues, or impeller wear. The module’s precision measurements detect subtle pressure variations that signal reduced pump efficiency, allowing maintenance to be scheduled before performance degradation affects product quality. The reliable power supply from 3500/15 133292-01 ensures continuous monitoring of these critical process pumps.

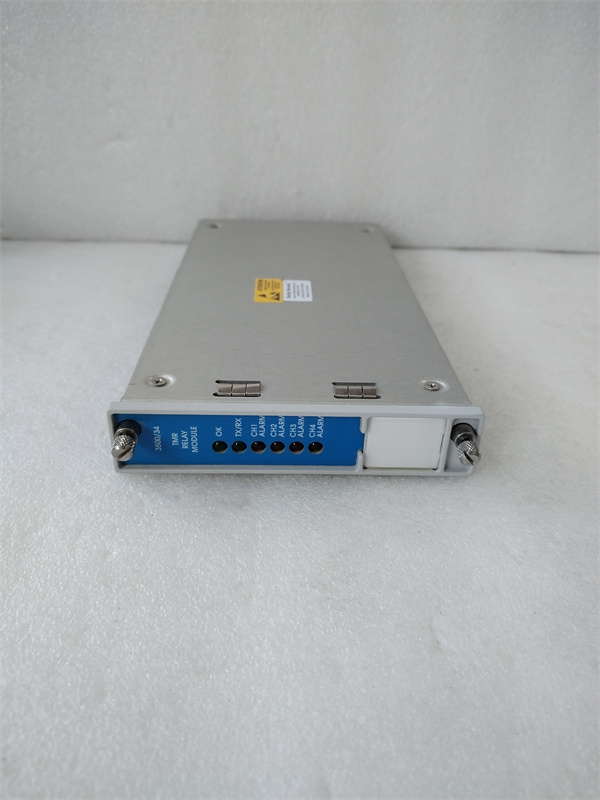

BENTLY 3500/34 125696-01
Related model recommendations
3500/15 133292-01: Power supply module providing regulated power to this pressure monitor.
3500/60 163179-01: Display module visualizing dynamic pressure data from this module.
3500/53 133388-01: Communication module transmitting pressure data to control systems.
3500/42M 176449-02: Vibration/position monitor whose data correlates with pressure measurements.
3500/22M 138607-01: Transient module triggered by pressure alarms from this monitor.
3500/05-01-03-00-00-00: Serial communication module for legacy system integration.
3500/32 125712-01: Multi-parameter monitor whose data complements this pressure module.
177230-01-01-05: Extension cable connecting pressure transducers to this module.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing 3500/34 125696-01, verify the 3500 rack has two adjacent slots available and that a properly sized 3500/15 133292-01 power supply is installed. Prepare cabling for pressure transducers using shielded twisted-pair wiring, ensuring proper grounding to minimize electrical noise in high-precision measurements. Mount pressure transducers with vibration isolation where necessary to prevent mechanical noise interference. Confirm the installation environment maintains temperatures within 0°C to +60°C with adequate ventilation.
Maintenance suggestions: Include 3500/34 125696-01 in quarterly system inspections, verifying all four channels display stable baseline pressure readings. Perform annual calibration verification using calibrated pressure sources to ensure measurement accuracy across the full range. Inspect transducer connections for leaks or corrosion, especially in high-pressure applications. Clean pressure ports according to manufacturer recommendations to prevent clogging that could affect measurements. Coordinate firmware updates with 3500/15 133292-01 and other system components to maintain compatibility. Test alarm functionality monthly using manual test signals to ensure proper system response.
Service and guarantee commitment
Bently Nevada provides the 3500/34 125696-01 with a 36-month warranty covering manufacturing defects and performance issues under normal operating conditions, including measurement accuracy, alarm functionality, and communication reliability when used with compatible 3500 series components like 3500/15 133292-01 and 3500/53 133388-01. Our technical support team offers expert guidance on transducer selection, installation practices, and pressure analysis methodologies specific to this dynamic pressure module.
We offer specialized training on dynamic pressure monitoring techniques, module configuration, and troubleshooting to maximize the diagnostic value of data from 3500/34 125696-01. Beyond the warranty period, our service agreements include calibration services, technical support, and expedited replacement to minimize system downtime. Bently Nevada’s commitment to quality ensures reliable dynamic pressure monitoring throughout the module’s operational lifecycle, backed by our global network of service professionals dedicated to protecting your critical machinery and process systems.
