BENTLY 3500/33-01-00 149986-01 | 3500 System Relay Spare Part

Description

Product Core Brief

• Model: 3500/33-01-00 (Front Board PWA: 149986-01)
• Brand: BENTLY NEVADA
• Series: 3500 Machinery Protection System
• Core Function: Provides 16 independent relay outputs for machine protection trip and alarm signaling.
• Product Type: 16-Channel Relay Control Module (Front Board)
• Key Specs: 16 Channels | Full-Height | Programmable AND/OR Logic
• Condition: New Original (New Surplus)

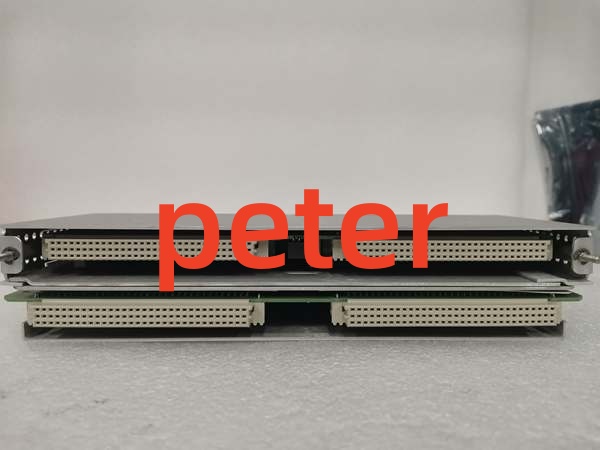

BENTLY 3500/33-01-00

Product Introduction

The BENTLY 3500/33-01-00 149986-01 is a full-height, 16-channel relay control module designed for the Bently Nevada 3500 Machinery Protection System. The part number 149986-01 specifically identifies this component as the Spare 16-Channel Relay Control Module (the front control board). It is typically paired with the rear I/O backplane board 149992-01 to form the complete 3500/33-01-00 assembly.

This module is engineered to drive multiple devices or circuits, providing critical alarm and danger (trip) signals to external systems like the Emergency Trip System (ETS) or Distributed Control System (DCS). Each of the 16 relays can be independently programmed using the 3500 configuration software to execute specific voting logic based on inputs from any monitor channel in the rack.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage, bent pins, or connector corrosion.
2. Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability.
3. Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity is also strictly checked.
4. Firmware Verification: We read and record internal firmware versions. DIP switch and jumper settings are photographed for future reference.
5. Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.

BENTLY 3500/33-01-00 149986-01

Replacement Pitfall Guide

❗ 3500/32 vs. 3500/33 Confusion: The 3500/33 is a 16-channel, full-height relay module. Do not confuse it with the 3500/32, which is a 4-channel, half-height module. They have different physical sizes and slot requirements.

❗ Front Board vs. Backplane Board: The 149986-01 is the spare control front board. If you are replacing a complete module assembly, ensure you also have the matching rear I/O backplane board (149992-01), or order the complete 3500/33-01-00 unit.

❗ Single Point of Failure Risk: Using a single 16-channel module for all critical trip signals creates a single point of failure. Industry best practice recommends utilizing redundant modules with “2-out-of-3” or “4-out-of-2” voting logic for critical machinery protection.

❗ Logic Configuration: Relay outputs are not hardwired to specific channels. You must configure the logic mapping in the 3500 configuration software before installation. An unconfigured module will not output any signals.

❗ ESD Damage: Use an anti-static mat during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• 3500/33-01-00 149986-01 → 3500/32 125720-01 : Needs Adaptation — 16-Channel Full-Height vs. 4-Channel Half-Height
• 3500/33-01-00 149986-01 → 149992-01 : Companion — Matches the 16-Channel Relay Output Module (Backplane Board)
• 3500/33-01-00 149986-01 → 3500/33-01-CN : Direct — Standard vs. CN Regional Approval
• Max Relays per Rack: Up to 16 channels per module; multiple modules can be installed in available slots
• Companion Modules: 3500/40M / 3500/42M (M-Series Monitors providing alarm/trip inputs)
