Description
Product Core Brief
- Model: 3500/32 125712-01
- Brand: BENTLY NEVADA
- Series: 3500 Machinery Protection System
- Core Function: Provides 4 independent relay outputs for machine protection trip and alarm signaling.
- Product Type: 4-Channel Relay Module
- Key Specs: 4 Channels | Half-Height | Programmable Logic
- Condition: New Original (New Surplus)

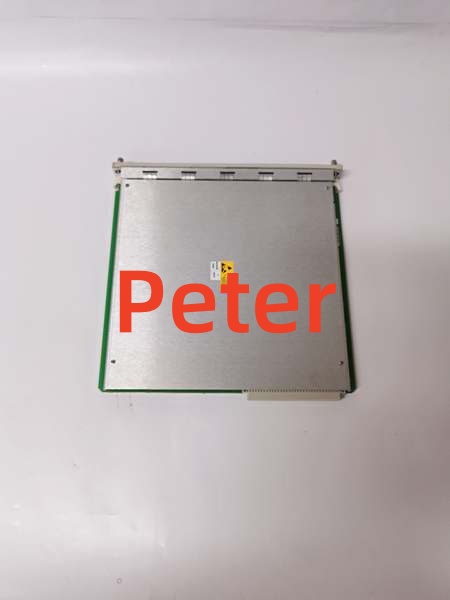

BENTLY 3500/32 125712-01
Product Introduction
The BENTLY 3500/32 125712-01 is a 4-channel relay output module for the 3500 Machinery Protection System. It receives alarm and danger (trip) signals from monitoring modules (such as 3500/42M vibration monitors) and outputs corresponding relay contact closures to external systems like the Emergency Trip System (ETS) or Distributed Control System (DCS).
This half-height module is widely used in汽轮机 (steam turbines), 压缩机 (compressors), and other large rotating machinery applications. Each relay can be independently programmed using the 3500 configuration software to execute specific voting logic (e.g., AND/OR logic) based on inputs from any monitor channel in the rack.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | 4-Channel Relay Output Module |
| Part Number | 125712-01 |
| Channel Count | 4 Independent Relays |
| Module Height | Half-Height |
| Logic Programming | AND / OR Voting Logic |
| Input Sources | Any Monitor Channel in Rack |
| Typical Application | ETS Trip, DCS Alarm |
| Compliance | API 670 |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage, bent pins, or connector corrosion.
- Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability.
- Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity is also strictly checked.
- Firmware Verification: We read and record internal firmware versions. DIP switch and jumper settings are photographed for future reference.
- Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.
Replacement Pitfall Guide
❗ 3500/32 vs. 3500/33 Confusion: The 3500/32 is a 4-channel relay module. Do not confuse it with the 3500/33, which is a 16-channel relay module. They have different physical sizes and channel counts.
❗ Single Point of Failure Risk: Using a single 3500/32 module for critical trip signals creates a single point of failure. If the module fails, it may cause a false trip. Industry best practice (and regulations like China’s “25 Key Requirements”) recommends using redundant modules with “2-out-of-3” or “4-out-of-2” voting logic for critical protection.
❗ Logic Configuration: Relay outputs are not hardwired to specific channels. You must configure the logic mapping in the 3500 configuration software before installation. An unconfigured module will not output any signals.
❗ Backplane Compatibility: Ensure your 3500 rack firmware version supports the 3500/32 module. Older rack configurations may require a firmware upgrade.
❗ ESD Damage: Use an anti-static mat during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.
Keep these in mind and you’ll cut 90% of rework time.
BENTLY 3500/32 125712-01
Compatibility Matrix & Benchmarks
- 3500/32 125712-01 → 3500/33 149986-01 : Needs Adaptation — 4-Channel vs. 16-Channel Relay Module
- 3500/32 125712-01 → 3500/32-01-00 : Direct — Same module, different ordering suffix
- 3500/32 125712-01 → 3500/42M : Companion — M-Series Monitor providing alarm/trip inputs
- Max Relays per Rack: Up to 8 channels (two 3500/32 modules) or 16 channels (one 3500/33 module)
