Description
Key Technical Specifications
- Model Number: 3500/25-01-01-00 149369-01
- Manufacturer: Bently Nevada (a Baker Hughes business)
- Relay Configuration: 1 independent channel (configurable for alarm or trip)
- Contact Type/Rating: SPST-NO (Single Pole Single Throw – Normally Open); 5A @ 240VAC / 5A @ 24VDC (resistive load); 1A @ 240VAC (inductive load)
- Power Supply: 24VDC ±10% (19.2-26.4VDC) from 3500 rack backplane; 0.15A typical current draw
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Mounting Type: Rack-mount (3500 system 19″ rack, 1U height, hot-swappable)
- Isolation Rating: 1kV AC (relay output to backplane/power; channel-to-chassis)
- Certifications: CE, UL 508, ATEX Zone 2 (Ex nA IIC T4), IECEx, SIL 2 (IEC 61508), API 670 compliant
- Compatibility: Bently 3500/15 Rack Assembly, 3500/42M/22M/61 Monitoring Modules, 3500/94 Communication Modules
- Diagnostic Capability: LED indicators (power, ready, alarm/trip, bypass, fault), rack-level fault reporting, contact status monitoring
- Response Time: ≤5ms (relay actuation from 3500 trip signal)
- Firmware Requirement: 3500 system firmware v6.0+ (must align with rack controller)

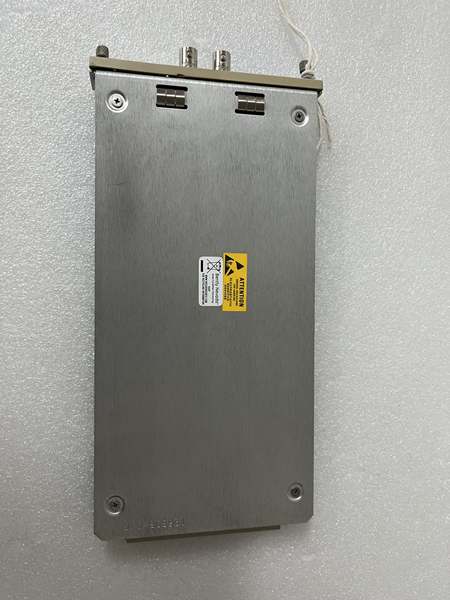

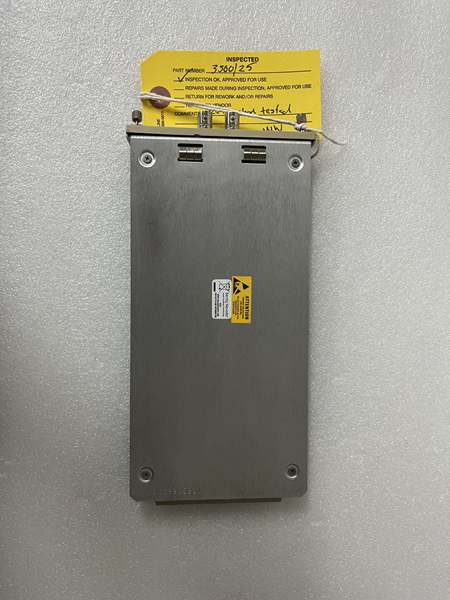

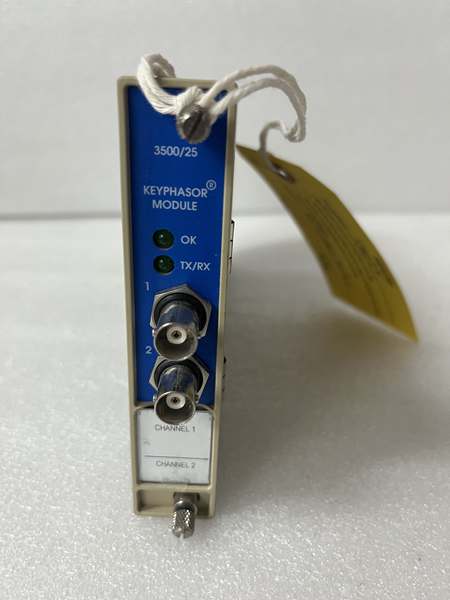

Bently 3500/25-01-01-00 149369-01
Bently 3500/25-01-01-00 149369-01
Field Application & Problem Solved
In critical rotating machinery safety—refinery auxiliary turbines, power plant boiler feed pumps, chemical plant centrifugal compressors—the biggest risk is unreliable single-channel shutdowns for specialized faults (e.g., lube oil low pressure, bearing temp high). Generic 1-channel relays fail here: they lack native 3500 integration (requiring hardwiring that adds latency), don’t meet SIL 2/API 670 compliance, or can’t sync with 3500 fault data for root-cause analysis. A Texas refinery lost $170k in a 3-hour outage when a generic relay took 150ms to actuate after a 3500/61 detected a bearing overtemp, leading to pump seizure. A Pennsylvania power plant spent $29k annually troubleshooting false trips from generic relays that couldn’t filter electrical noise from nearby VFDs.
This module solves these issues as a factory-designed 3500 native component. You’ll find it in 3500 rack assemblies protecting auxiliary machinery or dedicated fault points: lube oil systems, generator exciters, small compressors—assets where a single critical fault requires a fast, reliable shutdown. It’s mandatory for SIL 2-compliant facilities, as it maintains the safety integrity of the 3500 system’s trip logic without wasting rack space on multi-channel modules.
Its core value is 3500-native sync + SIL 2 reliability + compact 1-channel design. Unlike generics, it communicates directly with the 3500 backplane (latency ≤5ms), eliminates false trips via noise filtering, and saves 50% rack space compared to 2-channel modules. For a Louisiana chemical plant, this module triggered a lube oil pump shutdown within 7ms of a pressure drop—avoiding $190k in bearing damage and complying with OSHA safety standards.
Installation & Maintenance Pitfalls (Expert Tips)
- Overloading Relay Contacts Causes Premature Failure: Rookies use the 5A contacts to switch 7A motor starters, welding contacts and delaying shutdowns. An Ohio steel mill’s feed pump failed to trip because the relay contact was damaged—always derate for inductive loads (e.g., 1A max for motors) and verify load specs against Bently’s datasheet.
- Firmware Mismatch Breaks Backplane Communication: Outdated module firmware (pre-v7.0) causes “module not responding” faults with 3500 racks running v8.0+. A Florida refinery’s technicians wasted 5 hours troubleshooting until we updated the module via the rack’s USB port. Cross-check Bently’s compatibility matrix—mismatched firmware blocks trip signal transmission.
- Terminal Torque: 0.6Nm (5.3 in-lbs) Exact Value: Loose terminals cause intermittent actuation; over-torquing strips terminal blocks. A Michigan paper mill’s compressor relay triggered random alarms until terminals were torqued to spec. Use a precision torque screwdriver for 18-22 AWG wiring.
- Never Leave Bypass Mode Engaged: Rookies enable bypass to test wiring and forget to reset it, leaving machinery unprotected. A North Carolina refinery’s auxiliary turbine ran unprotected for 2 days until a safety audit—always confirm the “bypass” LED is off before commissioning, and lock bypass switches in production.
- Wiring Segregation: 30cm Clearance from Power Cables: Routing 24VDC trip wires alongside 480V power cables induces noise, causing false trips. A Texas chemical plant’s relay tripped randomly until trip wires were rerouted through shielded conduit—use twisted-pair shielded cable and ground shields at the module end only.
Technical Deep Dive & Overview
The Bently 3500/25-01-01-00 149369-01 is a 1-channel safety relay module engineered to translate 3500 monitoring module fault signals into fast, reliable shutdowns. At its core, a dedicated 32-bit microprocessor receives fault commands (e.g., high vibration, overtemp) from 3500 monitoring modules via the rack backplane. It validates the signal (filtering electrical noise) and actuates the SPST-NO relay within ≤5ms—fast enough to stop rotating machinery before faults escalate to catastrophic damage.
Unlike generic relays, its 3500-native integration ensures seamless sync with the entire system: it logs actuation events with time-stamps linked to 3500 fault data, simplifying root-cause analysis. The hot-swappable design allows module replacement without rack power down, maintaining safety coverage for 24/7 operations. The 1kV AC isolation blocks interference from VFDs and motor cables, a common cause of false trips in generic relays.
What sets it apart is its SIL 2-compliant fault-tolerant design. Redundant internal circuits verify relay actuation, ensuring no single component failure prevents a shutdown. The compact 1-channel form factor optimizes rack space, ideal for auxiliary machinery or dedicated fault points where multi-channel modules are unnecessary. For maintenance and safety teams, this module isn’t just a relay—it’s the final link in the 3500 system’s safety chain, providing reliable, compliant protection for critical and auxiliary rotating assets alike.
