Description
Product Core Brief
- Model: 3500/22M 288055-01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Interfaces the 3500 rack with host software for steady-state and transient waveform data collection.
- Product Type: Transient Data Interface (TDI) Module
- Key Specs: Standard TDI | 10/100 Base-T Ethernet | Slot 1 Placement
- Condition: New Original (New Surplus)

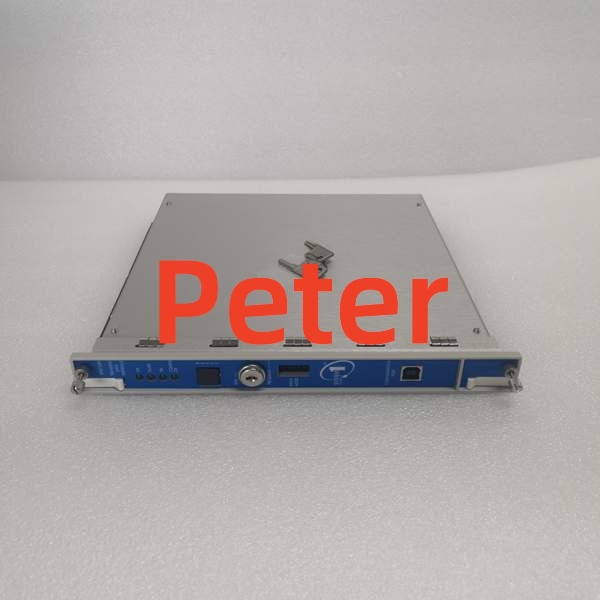

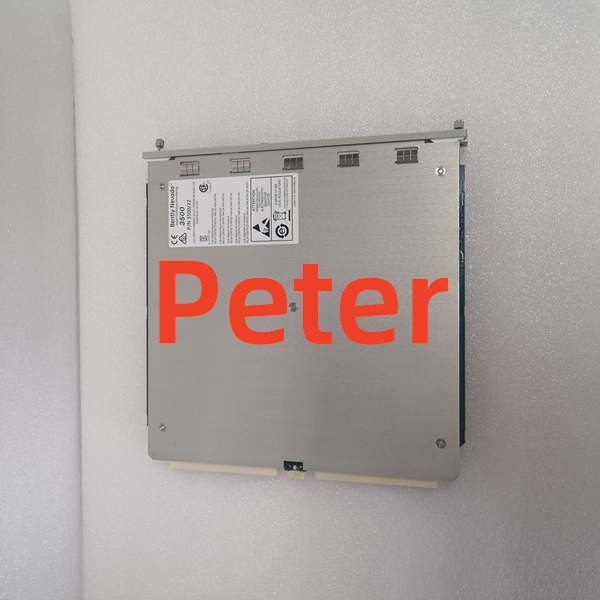

BENTLY 3500/22M 288055-01
Product Introduction
BENTLY 3500/22M 288055-01 is a Transient Data Interface (TDI) module that serves as the critical communication link between the 3500 monitoring system and host software (such as System 1™ Condition Monitoring and Diagnostic software). It combines the functions of a 3500/20 Rack Interface Module (RIM) with the data collection capabilities of a communication processor.
This module resides in the leftmost slot (Slot 1, adjacent to the power supply) of the 3500 rack. It interfaces with M-series monitors (e.g., 3500/40M, 3500/42M) to continuously collect steady-state and transient dynamic (waveform) data, passing it to the host computer via a 10/100 Base-T Ethernet link. While it provides essential diagnostic data, it is not part of the critical protection path and will not affect the system’s mechanical protection functions.
Key Technical Specifications
- Module Type: Transient Data Interface (TDI)
- System Compatibility: Bently Nevada 3500 Rack
- Communication: 10Base-T or 100Base-TX Ethernet (Auto-adaptive)
- Front Panel Interface: USB-B Port
- Slot Requirement: Must be installed in Slot 1 (adjacent to power supply)
- Power Consumption: 10.5 Watts
- Indicators: OK, TX/RX, TM, CONFIG OK LEDs
- Data Collection: Standard static data; optional channel enable disk for high-resolution transient/waveform data
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Trace source via serial number. Inspect front panel USB port and rear Ethernet connectors for physical damage.
- Visual Inspection: Verify LED indicators and hardware DIP switches (supports up to 127 addresses).
- Live Functional Test: Install in Slot 1. Verify “OK” and “CONFIG OK” LEDs illuminate. Check TX/RX activity during data polling.
- Communication Test: Connect via Ethernet to host PC. Verify successful handshake with System 1 software or 3500 Configuration Software.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with date.
BENTLY 3500/22M 288055-01
Replacement Pitfall Guide
❗ Slot 1 Mandatory: The 3500/22M 288055-01 must be installed in Slot 1 (immediately adjacent to the power supply). Installing it in any other slot will prevent rack communication.
❗ RIM vs. TDI: This module replaces the need for a separate 3500/20 RIM. Do not install both a 3500/20 and a 3500/22M in the same rack. Each rack requires exactly one RIM or one TDI.
❗ Protection Path Independence: While critical for diagnostics, the TDI is not part of the critical monitoring/protection path. A TDI failure will not cause machinery protection relays to trip.
❗ TMR Configuration: The 288055-01 is a Standard (non-TMR) TDI. If your rack is configured for Triple Modular Redundancy (TMR), you must use a TMR-rated TDI (e.g., 3500/22M 138607-02) instead.
❗ Transient Data Licensing: Standard static data collection is built-in. To capture high-resolution transient waveforms, ensure the optional channel enable disk/key is installed and configured in the software.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- 3500/22M 288055-01 → 3500/22M 138607-01 : Direct — Equivalent standard TDI part number
- 3500/22M 288055-01 → 3500/22M 138607-02 : Incompatible — Standard TDI vs. TMR TDI
- 3500/22M 288055-01 → 3500/20 : Alternative — Standard RIM (no transient data collection capability)
Benchmarks:
- Ethernet Link Negotiation: Auto-negotiates 10/100 Base-TX
- Data Polling Latency: < 100 ms for steady-state values
