BENTLY 3500/15-05-05-00 | 3500 System Redundant Power Configur

Description

Product Core Brief

• Model: 3500/15-05-05-00
• Brand: BENTLY NEVADA
• Series: 3500 Machinery Protection System
• Core Function: Provides dual, redundant universal AC power to the 3500 rack.
• Product Type: Dual Universal AC Power Supply Configuration
• Key Specs: 85 to 264 Vac rms | Dual Redundant Power | Universal Input
• Condition: New Original (New Surplus)

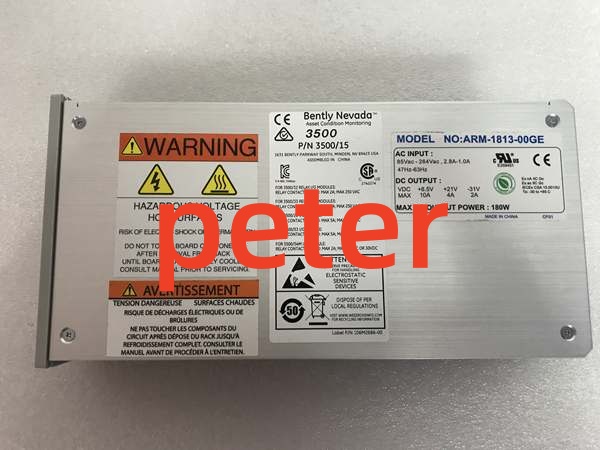

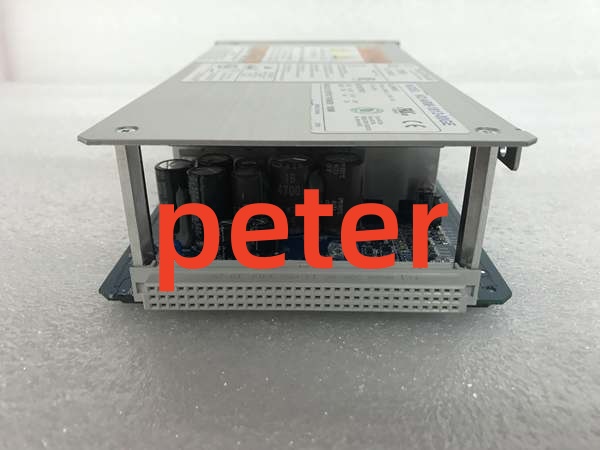

BENTLY 3500/15-05-05-00

Product Introduction

The BENTLY 3500/15-05-05-00 is a high-availability dual power supply configuration for the 3500 Machinery Protection System. The part number specifically denotes a redundant setup: the first “05” indicates a Universal AC Power Supply in the upper slot, and the second “05” indicates a matching Universal AC Power Supply in the lower slot.

This configuration is designed for critical applications where power interruption is unacceptable. If one power supply fails, the other seamlessly takes over the entire rack’s load without interrupting system operation. Both supplies accept a wide global voltage range (85 to 264 Vac rms), making them highly versatile for international industrial installations.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage, bent pins, or connector corrosion.
2. Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability.
3. Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity is also strictly checked.
4. Firmware Verification: We read and record internal firmware versions. DIP switch and jumper settings are photographed for future reference.
5. Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.

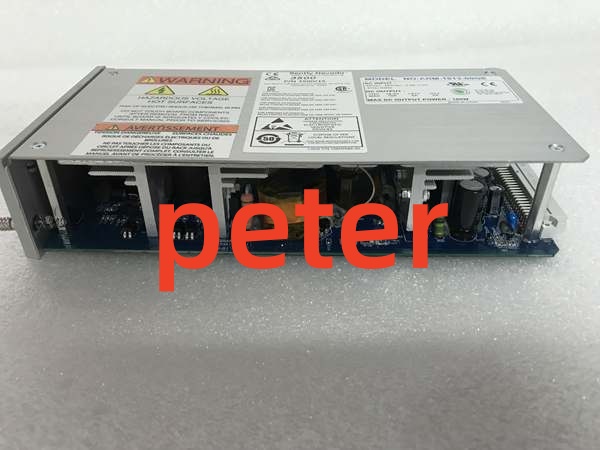

BENTLY 3500/15-05-05-00

Replacement Pitfall Guide

❗ Grounding Switch Synchronization: This is the most critical installation step. The power input module features a single-point grounding switch. When installing two power supplies for redundancy, both switches MUST be set to the exact same position (either both CLOSED or both OPENED) to prevent ground loops and system faults.

❗ PIM Compatibility: The “05” Universal AC power supply must be paired with the matching Universal AC Power Input Module (PIM), part number 106M1081-01. Do not mix it with older high-voltage only (125840-01) or low-voltage only (125840-02) PIMs.

❗ Slot Assignment: In a dual-power configuration, the upper slot acts as the primary power source, and the lower slot acts as the backup. Ensure the modules are installed in the correct left-most slots.

❗ Hot-Swapping Safety: While the 3500 system supports hot-swapping of redundant power supplies, always verify the “Power OK” LED on the backup supply before removing the primary supply to ensure seamless transition.

❗ ESD Damage: Use an anti-static mat during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.

Compatibility Matrix & Benchmarks

• 3500/15-05-05-00 → 3500/15-05-00-00 : Needs Adaptation — Dual Redundant vs. Single Power Supply
• 3500/15-05-05-00 → 3500/15-02-02-00 : Needs Adaptation — Universal AC vs. Legacy High-Voltage AC (175-264 Vac)
• 3500/15-05-05-00 → 3500/15-05-03-00 : Needs Adaptation — Dual Universal AC vs. Universal AC + High-Voltage DC
• Required Companion: 106M1081-01 (Universal AC Power Input Module, 2x required)
• Typical Rack Config: 3500/05 (19-inch Full-Size Rack)
