Description
Product Core Brief
- Model: 3500/05
- Brand: BENTLY NEVADA
- Series: 3500 Machinery Protection System
- Core Function: Provides power distribution and internal communication for all 3500 modules.
- Product Type: Instrument Rack (Chassis / Frame)
- Key Specs: 19-inch Standard | 14 Available Module Slots
- Condition: New Original (New Surplus)

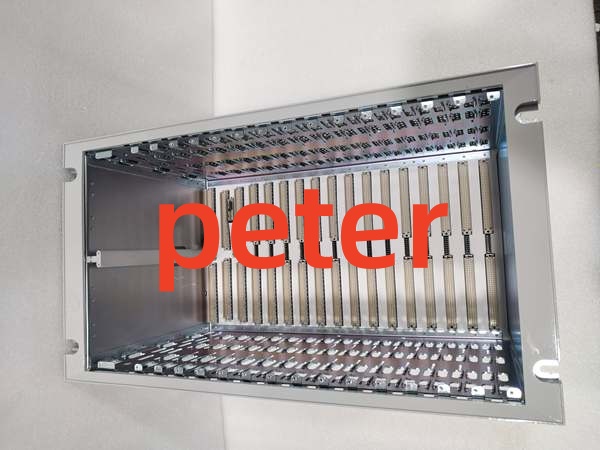

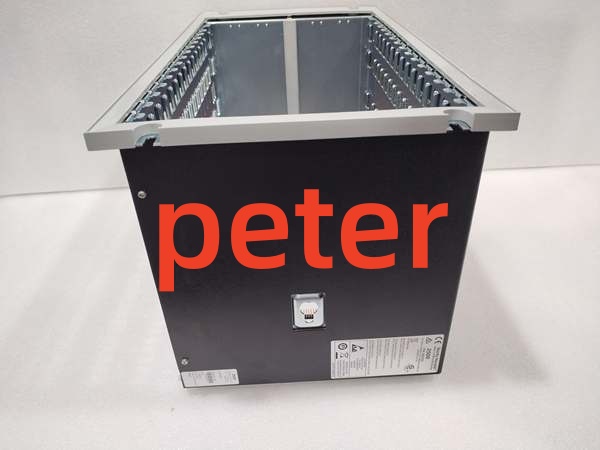

BENTLY 3500/05
Product Introduction
The BENTLY 3500/05 is the foundational 19-inch instrument rack for the Bently Nevada 3500 Machinery Protection System. It serves as the central housing for all system modules, providing essential power distribution and enabling seamless internal communication between components.
Designed for continuous monitoring of machine parameters such as vibration, temperature, speed, and position, this rack features 14 available module slots for flexible system expansion. The left-most section of the rack is strictly reserved for the power supply and rack interface modules, which do not consume standard slot space.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Rack Size | 19-inch Full-size Rack |
| Available Slots | 14 (for monitoring/relay modules) |
| Power Supply Location | Left-most section (reserved) |
| Rack Interface Location | Left-most section (reserved) |
| System Compatibility | Bently Nevada 3500 Series |
| Installation Type | Control Room / Panel Mount |
| Compliance | API 670, ISO 10817-1 |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage, bent pins, or connector corrosion.
- Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability.
- Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity is also strictly checked.
- Firmware Verification: We read and record internal firmware versions. DIP switch and jumper settings are photographed for future reference.
- Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.

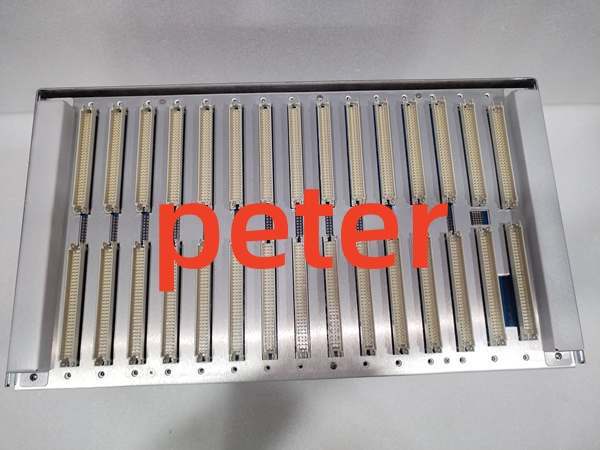

BENTLY 3500/05
Replacement Pitfall Guide
❗ Size Confusion: The 3500/05 is a full-size 19-inch rack with 14 slots. Do not confuse it with the 3500/06 mini-rack, which is a 12-inch rack with only 7 available slots.
❗ Slot Allocation Errors: Remember that the power supply and rack interface module reside in the left-most part of the rack and are not counted in the 14 available slots. Plan your module layout accordingly.
❗ Power Supply Mismatch: Calculate total rack power requirements carefully. Always include a 20% headroom margin for transient loads during startup.
❗ ESD Damage: Use an anti-static mat during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.
❗ Grounding Issues: Always verify proper signal common external grounding to prevent noise and communication errors between modules.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- 3500/05 → 3500/06 : Needs Adaptation — Full-size 19-inch (14 slots) vs. Mini 12-inch (7 slots)
- 3500/05 → 3500/05-01-02-00-00-01 : Direct — same base rack, specific configuration suffix
- 3500/05 → 3500/05-01-03-00-01 : Direct — same base rack, variant configuration
- Required Companion Modules: 3500/15 Power Supply, 3500/22M TDI or 3500/20 Rack Interface
- Max Module Capacity: 14 monitoring/relay modules per rack
