Description
Product Core Brief
- Model: 3500/05-01-02-00-00-01
- Brand: BENTLY NEVADA
- Series: 3500 Machinery Protection System
- Core Function: Houses, powers, and provides backplane communication for 3500 modules.
- Product Type: Full-Size Instrument Rack (Chassis)
- Key Specs: 19-inch EIA | 14 Available Slots | Rack Mount (19-inch EIA Rail)
- Condition: New Original (New Surplus)

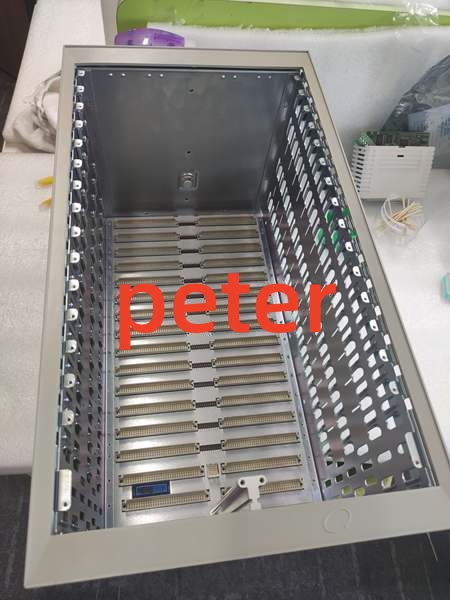

BENTLY 3500/05-01-01-00-00-01
Product Introduction
The BENTLY 3500/05-01-02-00-00-01 is a full-size, 19-inch instrument rack designed to serve as the backbone of a 3500 Machinery Protection System. It provides the necessary physical housing, internal power distribution, and backplane communication for all connected monitoring and relay modules.
The specific part number suffix -01-02-00-00-01 defines its exact physical configuration: it is a standard 19-inch EIA frame featuring 14 available module slots, and it is specifically configured for rack mounting (designed to be installed on a standard 19-inch EIA guide rail). I/O connections and wiring are accessed directly from the rear of the rack.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Base Model | 3500/05 |
| Frame Size | 19-inch EIA Full-Size Rack |
| Available Slots | 14 (for monitoring/relay modules) |
| Mounting Option | Rack Mount (19-inch EIA Rail) |
| Wiring Access | Rear panel |
| System Compatibility | Bently Nevada 3500 Series |
| Compliance | API 670, ISO 10817-1 |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage, bent pins, or connector corrosion.
- Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability.
- Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity is also strictly checked.
- Firmware Verification: We read and record internal firmware versions. DIP switch and jumper settings are photographed for future reference.
- Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.
Replacement Pitfall Guide
❗ Size Confusion: The -01- prefix indicates a full-size 19-inch rack with 14 slots. Do not confuse it with a -02- prefix, which denotes a 12-inch mini-rack with only 7 slots.
❗ Mounting Type Mismatch: The second -02- indicates rack mounting (EIA rail). If your installation requires flat panel mounting, you must select the -01- variant. If rear access is impossible, you must select the -03- wall/bulkhead mounting variant (front access).
❗ Slot Allocation Errors: Remember that the power supply and rack interface module reside in the left-most part of the rack and are not counted in the 14 available slots. Plan your module layout accordingly.
❗ Power Supply Mismatch: Calculate total rack power requirements carefully. Always include a 20% headroom margin for transient loads during startup.
❗ ESD Damage: Use an anti-static mat during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.
Keep these in mind and you’ll cut 90% of rework time.
BENTLY 3500/05-01-01-00-00-01
Compatibility Matrix & Benchmarks
- 3500/05-01-02-00-00-01 → 3500/05-01-01-00-00-01 : Needs Adaptation — Rack Mount vs. Panel Mount
- 3500/05-01-02-00-00-01 → 3500/05-01-03-00-01-00 : Needs Adaptation — Rack Mount vs. Wall/Bulkhead Mount (Front Access)
- 3500/05-01-02-00-00-01 → 3500/05-02-05-00-00-01 : Incompatible — 19-inch (14 slots) vs. 12-inch Mini-Rack (7 slots)
- Required Companion Modules: 3500/15 Power Supply, 3500/22M TDI or 3500/20 Rack Interface
- Max Module Capacity: 14 monitoring/relay modules per rack
