Description
Product Core Brief
- Model: 3500/05-01-02-00-00-00
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Houses and powers all 3500 monitor modules and provides backplane communication.
- Product Type: System Rack / Frame
- Key Specs: 19-Inch EIA | 14 Slots | Rack Mount
- Condition: New Original (New Surplus)

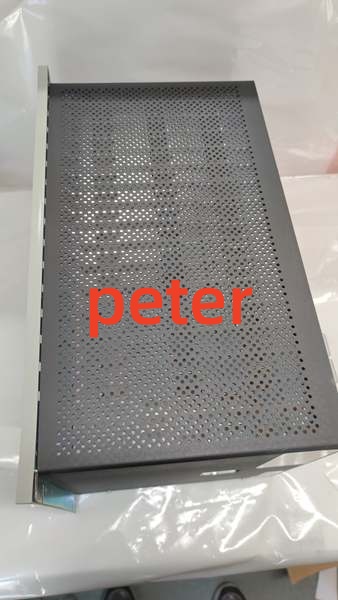

BENTLY 3500/05-01-02-00-00-00
Product Introduction
BENTLY 3500/05-01-02-00-00-00 is a full-size 19-inch EIA system rack designed to house all 3500 monitor modules and rack power supplies. It provides the necessary backplane communication for modules to interact and allocates power as required by each installed module.
This specific configuration denotes a full-size frame (14 available module slots) with a standard 19-inch EIA rack mount installation option. The 3500/05-01-02-00-00-00 features a robust metal chassis and allows for rear-access wiring connections and I/O modules.
Key Technical Specifications
- Frame Size: Full-Size (19-inch EIA Standard)
- Module Capacity: 14 Available Slots
- Mounting Style: Rack Mount (Secured to 19-inch EIA rack via front flanges)
- Wiring Access: Rear Access
- Slot Allocation: Leftmost slots reserved for Power & Rack Interface Module (RIM)
- Backplane: Integrated communication bus for inter-module data
- Operating Temp: -30 °C to +65 °C
- Dimensions (L x W x H): 48.26 cm x 34.92 cm x 26.59 cm
- Compatibility: All 3500 Series Monitor, Relay, and Communication Modules
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Trace source via serial number. Inspect backplane connectors for bent pins or debris.
- Visual Inspection: Verify chassis structural integrity, rack-mount flange alignment, and grounding points.
- Backplane Continuity Test: Measure resistance across backplane power and ground planes.
- Slot Mechanical Test: Verify card guide alignment and module insertion/extraction smoothness.
- Final QC & Packaging: Apply QC Passed label with date. Package with original rack-mount hardware.

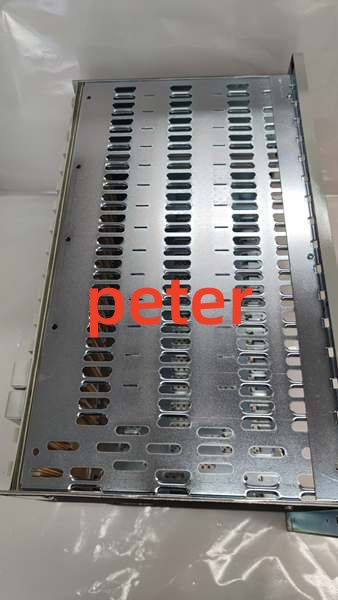

BENTLY 3500/05-01-02-00-00-00
Replacement Pitfall Guide
❗ Slot Allocation: The 3500/05-01-02-00-00-00 has 14 slots, but the leftmost positions are strictly reserved for the power supply and Rack Interface Module (RIM). Plan your monitor module layout accordingly.
❗ Mounting Format: This is a rack-mount frame designed for standard 19-inch EIA cabinets. Do not confuse with panel mount (01) or bulkhead mount (03) formats.
❗ Mini-Rack Confusion: This is a full-size 14-slot rack. Do not substitute with a 3500/05-02 (12-inch mini-rack with 7 slots) unless you have verified module space requirements.
❗ RIM Requirement: This frame requires a 3500/20 Rack Interface Module in the first slot for configuration and communication. The frame cannot be configured without it.
❗ Backplane Handling: Never force modules into slots. Bent backplane pins are the #1 cause of frame-level failures during replacement.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- 3500/05-01-02-00-00-00 → 3500/05-01-01-00-00-00 : Needs Adaptation — Panel mount vs Rack mount
- 3500/05-01-02-00-00-00 → 3500/05-02-04-00-00-00 : Incompatible — 12-inch mini-rack (7 slots)
- 3500/05-01-02-00-00-00 → 3500/05-01-03-00-00-00 : Needs Adaptation — Bulkhead mount format
Benchmarks:
- Backplane Ground Resistance: < 0.1 Ω
- Module Slot Alignment Tolerance: ±0.1 mm
