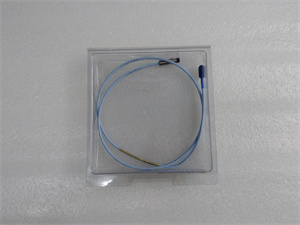

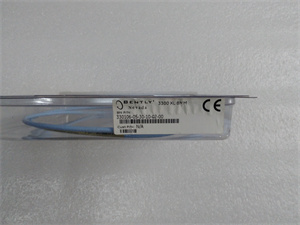

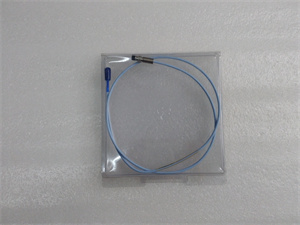

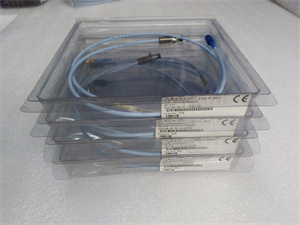

BENTLY 330106-05-30-10-02-00

Description

Detailed parameter table

BENTLY 330106-05-30-10-02-00

Product introduction

The 330106-05-30-10-02-00 from Bently Nevada is a complete proximity probe system designed for precise measurement of shaft vibration, position, and speed in critical rotating machinery. As part of Bently Nevada’s industry-leading 3300 series, this system combines a high-performance probe, integral extension cable, and compatible driver electronics to form the foundation of machinery protection and condition monitoring. Unlike individual components, this integrated system ensures optimal performance through factory-matched components, delivering reliable measurements that form the basis for protection actions and diagnostic analysis in 3500 systems.

Bently Nevada’s 330106-05-30-10-02-00 utilizes eddy current technology to detect shaft movement without physical contact, eliminating wear and ensuring long-term stability. The system connects seamlessly to monitoring modules like the 3500/40M 140734-01 and can be extended with 133323-01 cables for longer reach in large machinery installations. By converting mechanical shaft motion into electrical signals, it provides the raw data that enables the 3500 ecosystem to detect faults, trigger alarms, and support predictive maintenance strategies in power generation, oil and gas, and manufacturing applications.

Core advantages and technical highlights

Integrated system performance: A key advantage of 330106-05-30-10-02-00 is its factory-calibrated integration of probe, cable, and driver components. This matching ensures consistent sensitivity (8 mV/mil ±5%) across the entire measurement chain, eliminating performance variations that can occur with mismatched components and ensuring compatibility with the ±0.2% accuracy requirements of 3500/40M 140734-01 modules.

Enhanced durability design: The probe features a tungsten carbide tip with a diamond-like carbon (DLC) coating, providing exceptional wear resistance and electrical insulation. This coating extends service life in harsh environments, maintaining measurement stability even after thousands of hours of operation near rotating shafts in turbine and compressor applications.

Extended environmental tolerance: With an operating temperature range of -54°C to +121°C (-65°F to +250°F), the system performs reliably in extreme industrial environments. Its rugged construction resists vibration, shock, and chemical exposure, making it suitable for installation in turbine enclosures, compressor housings, and other challenging locations.

Seamless system extension: The integral 3-meter cable with Microdot connectors allows easy extension using 133323-01 cables when longer reaches are needed. This modular approach maintains signal integrity through properly matched impedance (50 ohms) across connections, preventing signal reflections that could distort vibration measurements critical for early fault detection.

Typical application scenarios

Turbine shaft vibration monitoring

In power generation facilities, 330106-05-30-10-02-00 systems are installed at turbine bearing locations to monitor radial vibration and shaft position. Mounted in proximity to rotating shafts, the probe detects subtle movements that indicate imbalance, misalignment, or bearing degradation. The system connects to 3500/40M 140734-01 modules (with 133323-01 extension cables when needed), providing the data that triggers protective actions and enables diagnostic analysis of turbine health.

Compressor condition monitoring

Oil and gas compressor stations utilize 330106-05-30-10-02-00 systems to track shaft behavior in centrifugal and reciprocating compressors. The probes monitor axial and radial movement to detect issues like rotor rubs, impeller imbalance, or thrust bearing wear. By transmitting data to monitoring modules, the system helps operators optimize compressor performance while preventing catastrophic failures through early fault detection.

Large motor vibration analysis

In manufacturing plants, 330106-05-30-10-02-00 systems monitor critical motor shafts to identify mechanical issues before they cause unplanned downtime. The probes detect vibration patterns associated with rotor bar defects, misalignment, and foundation problems. This data, processed by 3500/40M 140734-01 modules, enables maintenance teams to schedule repairs during planned outages, maximizing production availability.

BENTLY 330106-05-30-10-02-00

Related model recommendations

133323-01: Extension cable for extending the system’s reach to monitoring modules.

3500/40M 140734-01: Monitoring module that processes signals from this proximity system.

3500/05-01-02-00-00-00: Communication module transmitting processed vibration data.

3500/22M: Transient module for high-speed analysis of vibration events.

3500/25 184684-01: Relay module triggering protective actions based on vibration data.

3500/15 106M1079-01: Power supply module supporting the monitoring ecosystem.

3500/60 163179-01: Display module visualizing vibration data from the system.

133300-01: Interface cable for system integration with control networks.

Installation, calibration and maintenance guidelines

Installation

Mount 330106-05-30-10-02-00 probes using precision brackets at a fixed distance from the monitored shaft surface (typically within the 2 mm linear range). Ensure perpendicular alignment to the shaft to avoid measurement errors. Connect the integral cable directly to monitoring modules or extend using 133323-01 cables for longer distances. Route cables away from high-voltage lines and noise sources, securing them with non-metallic clips to prevent vibration-induced wear. Ground the system according to Bently Nevada specifications to maximize EMI protection.

Calibration

The 330106-05-30-10-02-00 system is factory-calibrated to ensure 8 mV/mil sensitivity, but should be verified during installation using a calibration fixture. Perform a linearity check across the 2 mm measurement range to confirm accuracy. When extending with 133323-01 cables, verify that the combined system maintains calibration specifications. Document calibration data and compare with baseline readings during periodic maintenance.

Maintenance

Include 330106-05-30-10-02-00 systems in quarterly machinery inspections. Visually inspect probe tips for wear or contamination, cleaning gently with approved solvents if necessary. Check cable connections for tightness and corrosion, especially at Microdot interfaces with 133323-01 extensions. Verify system output against baseline readings to detect drift or degradation. Replace probes if calibration fails or if physical damage to the tip or cable is observed. Ensure replacement components are properly matched to maintain system performance.

Service and guarantee commitment

Bently Nevada provides the 330106-05-30-10-02-00 system with a 24-month warranty covering manufacturing defects and performance issues under normal operating conditions, including sensitivity accuracy, temperature stability, and component reliability when used with compatible modules like 3500/40M 140734-01 and cables such as 133323-01. Our technical support team offers expert guidance on system selection, installation, calibration, and integration with 3500 series modules.

We offer specialized training on eddy current sensor technology, vibration analysis, and maintenance procedures specific to 330106-05-30-10-02-00. Beyond the warranty period, our service agreements include calibration verification, technical support, and expedited replacement services to maintain monitoring system integrity. Bently Nevada’s commitment to quality ensures reliable measurement performance throughout the system’s operational lifecycle, backed by our global network of service professionals.
